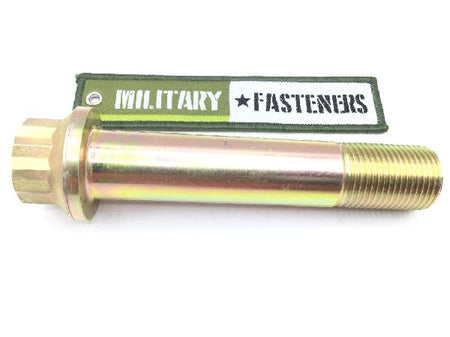

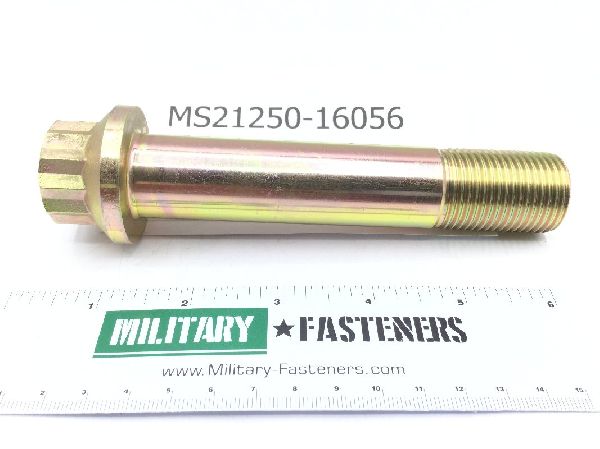

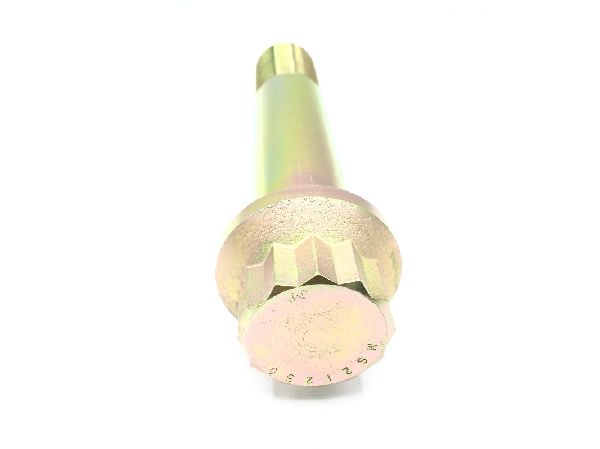

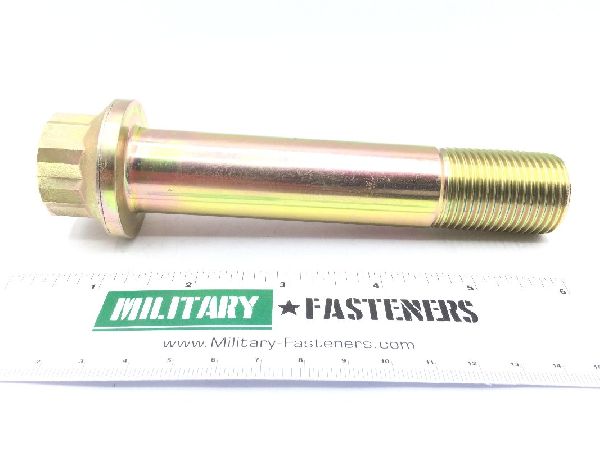

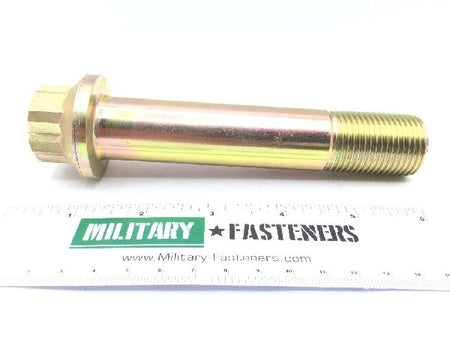

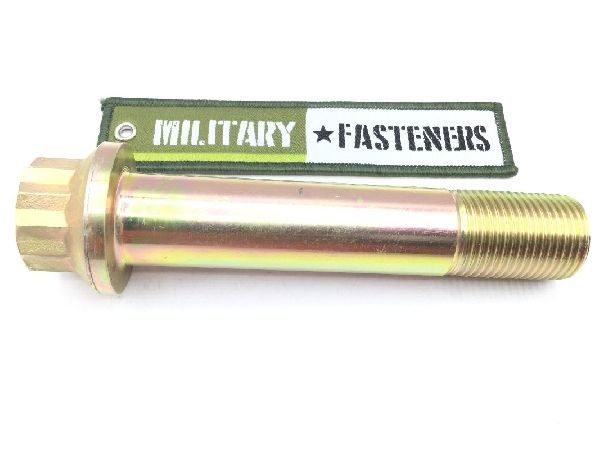

MS21250-16056 Shear Bolt

Product Series: MS
ECCN: EAR99
Schedule: 7318.15.8085

Price per Unit $340.88

Units per Pack 1

Price per Pack $340.88

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Quantity will be increased in increments of 1

Total Unit Quantity:

Total Packs 1

Total Price $340.88

Add item to quote

Head Style

Double hexagon w/hole

Material

Steel comp 4140 or steel comp 4340 or steel comp 8740 or steel comp 6150

Surface Treatment

cl 2 federal specification all treatment responses ty ii qq-p-416

Thread Class

Thread Quantity Per Inch (tpi)

End Application: patriot semitrailer mounted/missile radar set 1430-01-087-6330
Extended Washer Diameter: Between 1.615 inches and 1.625 inches
Extended Washer Thickness: 0.222 inches
Fastener Length: 5.922 inches
Grip Diameter: Between 0.998 inches and 0.999 inches
Hardness Rating: 39.0 rockwell c and 43.0 rockwell c
Head Height: 0.923 inches
Material Specification: Mil-s-5626 military specification all material responses or mil-s-5000 military specification all material responses or mil-s-6049 military specification all material responses or mil-s-8503 military specification all material responses
Min. Tensile Strength (psi): 126 pounds per square inch
Part Name Assigned By Controlling Agency: flanged external wrenching steel tension bolt
Supplementary Features: 450 degree f/surface texture iaw ansi (asa) b46.1 180 ksi undrilled head/12-point
Surface Finish: 125.0 microinches
Thread Diameter: 1.00 inches
Thread Direction: Right-hand
Thread Length: 4.999 inches
Thread Series Designator: Unjf (fine thread with external controlled root radius)
Width Between Flats: 1.060 inches
