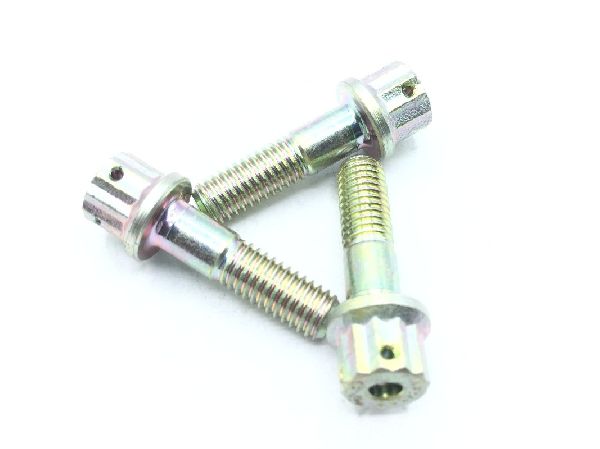

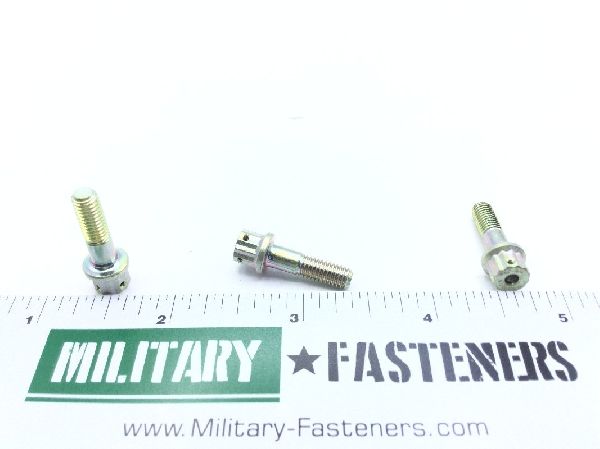

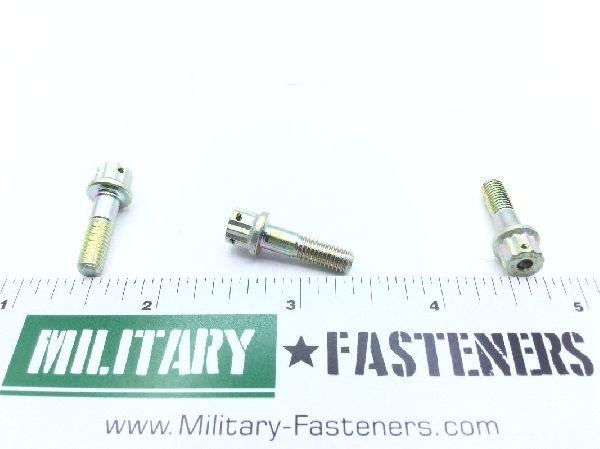

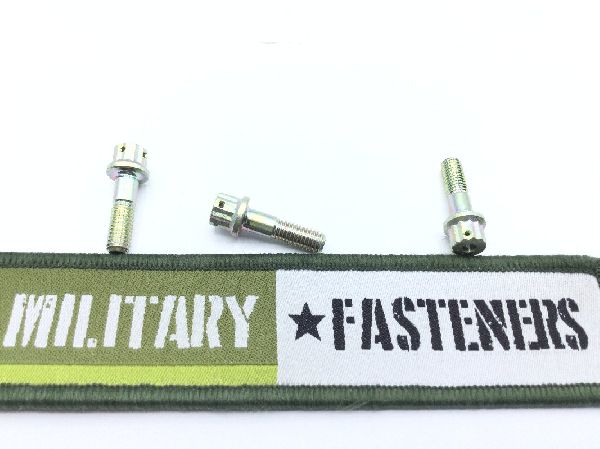

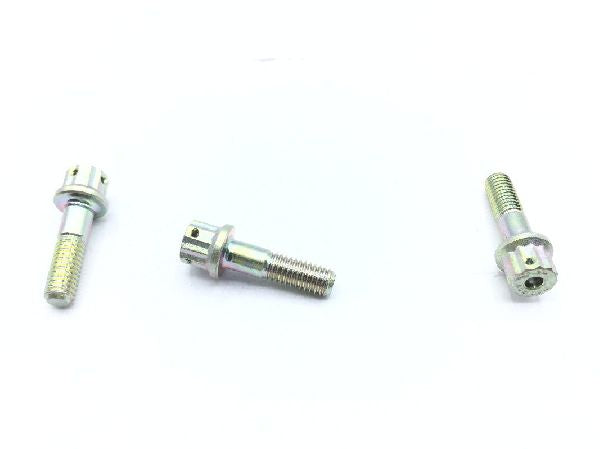

MS21250H03004 Shear Bolt

Product Series: MS
ECCN: EAR99
Schedule: 7318.15.8085

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Add to Quote

We are currently out of stock of this item. Click the button below to add this item to the quote and receive up to date pricing and availability by email.

Add to Quote

Head Style

Double hexagon w/hole

Material

Steel comp 4140 or steel comp e4340 or steel comp 8740 or steel comp 6150

Surface Treatment

Class 2 federal specification single treatment response type 2 qq-p-416

Thread Class

Extended Washer Diameter: Between 0.340 inches and 0.350 inches
Extended Washer Thickness: 0.055 inches
Fastener Length: 0.690 inches
Grip Diameter: Between 0.1885 inches and 0.1895 inches
Grip Length: Between 0.240 inches and 0.260 inches
Hardness Rating: 39.0 rockwell c and 43.0 rockwell c
Head Height: 0.265 inches
Hole Configuration Style: Double hexagon longitudinal hole
Hole Quantity: 4
Hole Type: Drilled
Min. Tensile Strength (psi): 180000 pounds per square inch
Thread Diameter: 0.190 inches
Thread Direction: Right-hand
Thread Length: Between 0.430 inches and 0.450 inches
Thread Qty Per Inch (tpi): 32
Thread Series Designator: Unjf (fine thread with external controlled root radius)
Width Between Flats: Between 0.235 inches and 0.250 inches
Hole Diameter: Between 0.032 inches and 0.042 inches
