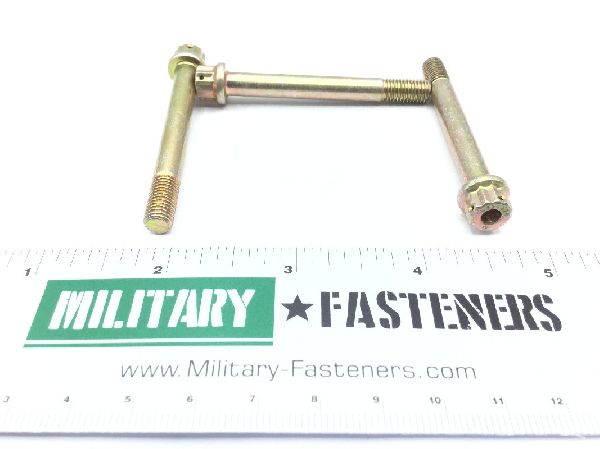

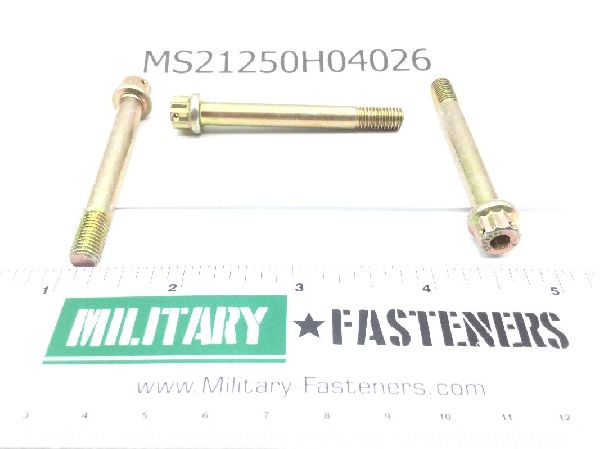

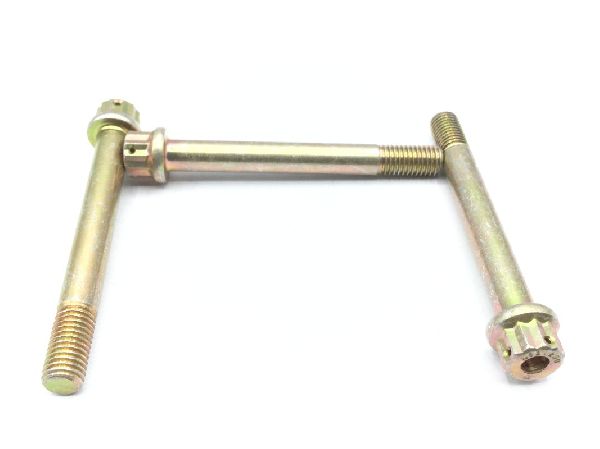

MS21250H04026 Shear Bolt

Product Series: MS
ECCN: EAR99
Schedule: 7318.15.8085

Price per Unit $24.26

Units per Pack 2

Price per Pack $48.52

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Quantity will be increased in increments of 2

Total Unit Quantity:

Total Packs 1

Total Price $48.52

Add item to quote

Head Style

Double hexagon w/hole

Material

Steel comp e4340 or steel comp 4340 or steel comp 8740 or steel comp 6150 or steel comp 4140

Surface Treatment

Qq-p-416 type 2 cl 3 federal specification single treatment response

Thread Class

Extended Washer Diameter: Between 0.428 inches and 0.438 inches
Extended Washer Thickness: 0.069 inches
Fastener Length: 2.137 inches
Grip Diameter: Between 0.2485 inches and 0.2495 inches
Grip Length: Between 1.615 inches and 1.635 inches
Hardness Rating: 39.0 rockwell c and 43.0 rockwell c
Head Height: 0.300 inches
Hole Configuration Style: Round
Hole Quantity: 4
Hole Type: Drilled
Min. Tensile Strength (psi): 180000 pounds per square inch
Thread Diameter: 0.250 inches
Thread Direction: Right-hand
Thread Length: Between 0.502 inches and 0.522 inches
Thread Qty Per Inch (tpi): 28
Thread Series Designator: Unjf (fine thread with external controlled root radius)
Width Between Flats: Between 0.304 inches and 0.313 inches
Hole Diameter: 0.037 inches
