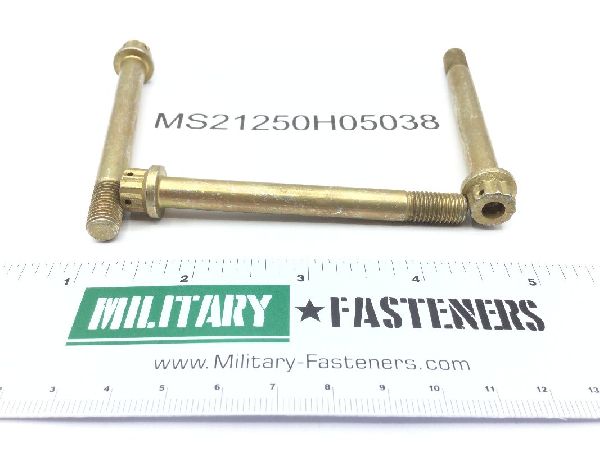

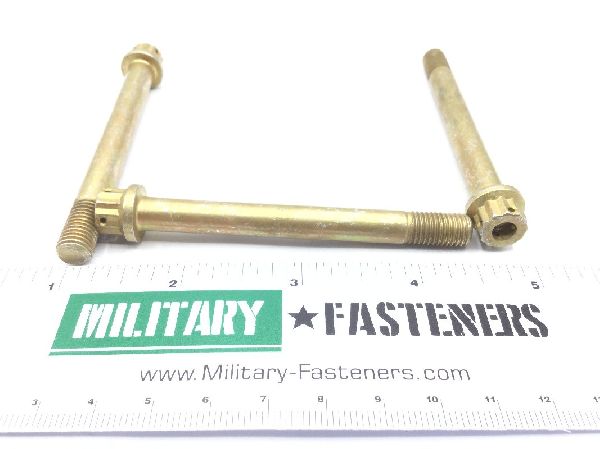

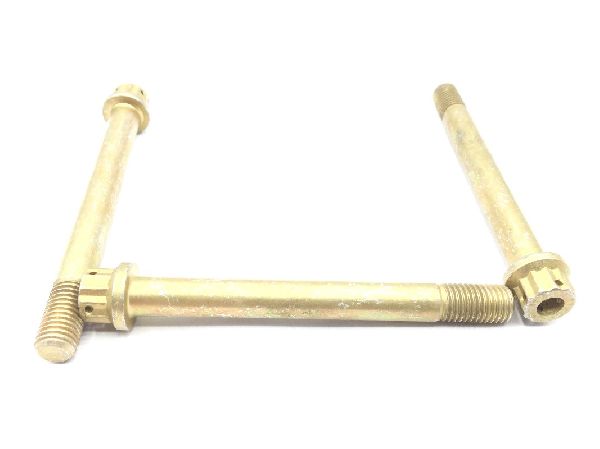

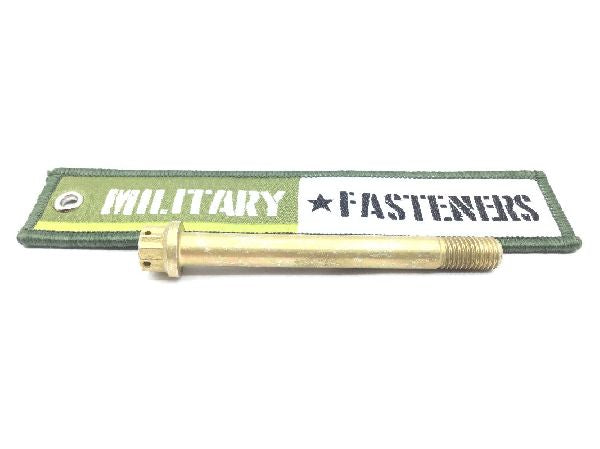

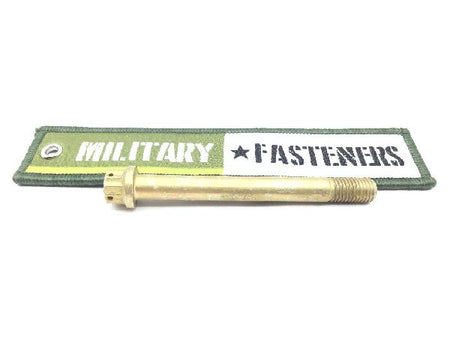

MS21250H05038 Shear Bolt

Product Series: MS
ECCN: EAR99
Schedule: 7318.15.8085

Unit of Measure: EA

Add to Quote

We are currently out of stock of this item. Click the button below to add this item to the quote and receive up to date pricing and availability by email.

Add to Quote

Head Style

Double hexagon w/hole

Material

Steel comp 4140 or steel comp e4340 or steel comp 8740

Surface Treatment

Type 2 class 2 federal specification single treatment response qq-p-416

Thread Class

Extended Washer Diameter: Between 0.521 inches and 0.531 inches
Extended Washer Thickness: Between 0.072 inches and 0.092 inches
Fastener Length: Between 2.964 inches and 2.984 inches
Grip Diameter: Between 0.311 inches and 0.312 inches
Grip Length: Between 2.365 inches and 2.385 inches
Hardness Rating: 39.0 rockwell c and 43.0 rockwell c
Head Height: Between 0.338 inches and 0.358 inches
Hole Configuration Style: Double hexagon longitudinal hole
Hole Quantity: 4
Hole Type: Drilled
Material Specification: Mil-s-5626 military specification 1st material response or mil-s-5000 military specification 2nd material response or mil-s-6049 military specification 3rd material response
Min. Tensile Strength (psi): 180000 pounds per square inch
Surface Finish: 32.0 microinches threads
Thread Diameter: 0.312 inches
Thread Direction: Right-hand
Thread Length: Between 0.579 inches and 0.619 inches
Thread Qty Per Inch (tpi): 24
Thread Series Designator: Unjf (fine thread with external controlled root radius)
Width Between Flats: Between 0.365 inches and 0.385 inches
Hole Diameter: Between 0.050 inches and 0.060 inches
