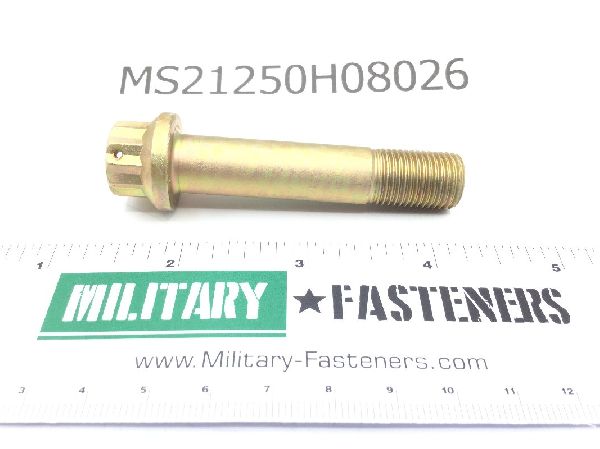

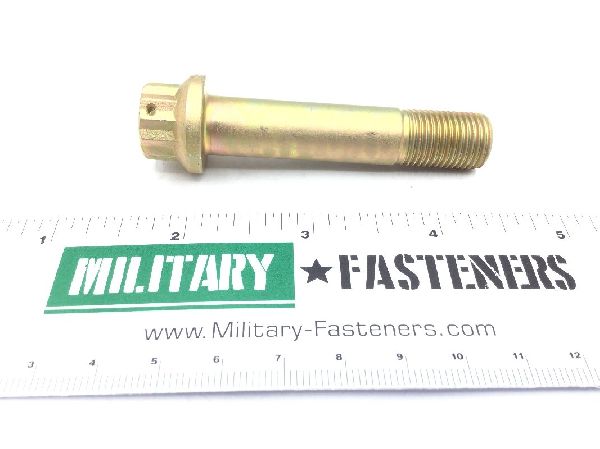

MS21250H08026 Shear Bolt

Product Series: MS
ECCN: EAR99
Schedule: 7318.15.8085

Price per Unit $37.77

Units per Pack 1

Price per Pack $37.77

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Quantity will be increased in increments of 1

Total Unit Quantity:

Total Packs 1

Total Price $37.77

Add item to quote

Head Style

Double hexagon w/hole

Material

Steel comp 4140 or steel comp e4340 or steel comp 6150 or steel comp 8740

Surface Treatment

Qq-p-416 ty2 cl3 federal specification single treatment response

Thread Class

Extended Washer Diameter: Between 0.818 inches and 0.828 inches
Extended Washer Thickness: 0.123 inches
Fastener Length: 2.393 inches
Grip Diameter: Between 0.4985 inches and 0.4995 inches
Grip Length: Between 1.615 inches and 1.635 inches
Hardness Rating: 39.0 rockwell c and 43.0 rockwell c
Head Height: 0.504 inches
Hole Configuration Style: Hexagon longitudinal hole
Hole Quantity: 4
Hole Type: Drilled
Min. Tensile Strength (psi): 180000 pounds per square inch
Single Shear Strength: 108000 pounds per square inch
Thread Diameter: 0.500 inches
Thread Direction: Right-hand
Thread Length: 0.768 inches
Thread Qty Per Inch (tpi): 20
Thread Series Designator: Unf (fine thread)
Width Between Flats: 0.813 inches
Hole Diameter: Between 0.050 inches and 0.060 inches
