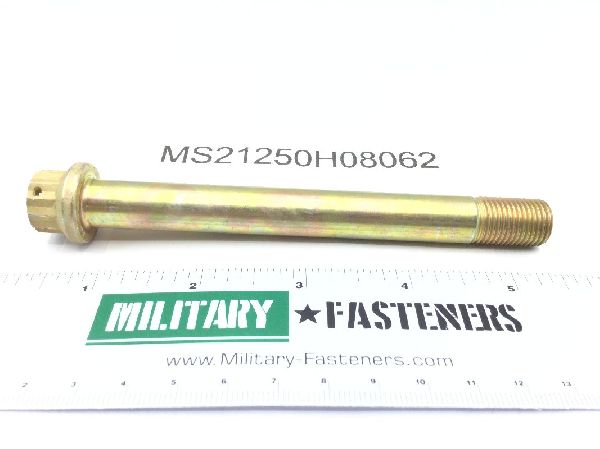

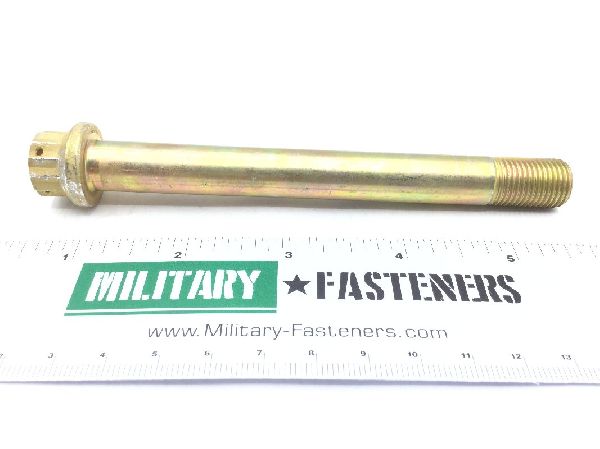

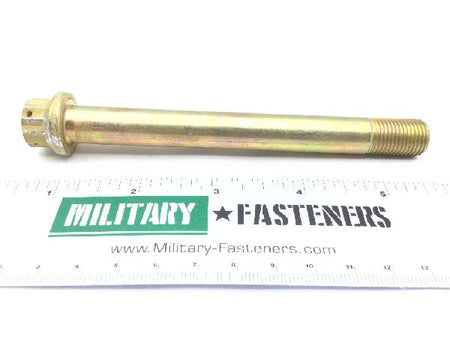

MS21250H08062 Shear Bolt

Product Series: MS
ECCN: EAR99
Schedule: 7318.15.8085

Price per Unit $62.95

Units per Pack 1

Price per Pack $62.95

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Quantity will be increased in increments of 1

Total Unit Quantity:

Total Packs 1

Total Price $62.95

Add item to quote

Head Style

Double hexagon with hole

Material

Steel

Surface Treatment

Qq-p-416 type 2 class 2 federal specification single treatment response

Thread Class

Extended Washer Diameter: Between 0.818 inches and 0.828 inches
Extended Washer Thickness: 0.123 inches
Fastener Length: 4.663 inches
Grip Diameter: Between 0.4985 inches and 0.4995 inches
Grip Length: Between 3.865 inches and 3.885 inches
Hardness Rating: 39.0 rockwell c and 43.0 rockwell c
Head Height: 0.504 inches
Hole Configuration Style: Double hexagon longitudinal hole
Hole Quantity: 4
Hole Type: Drilled
Min. Tensile Strength (psi): 180000 pounds per square inch
Thread Diameter: 0.50 inches
Thread Direction: Right-hand
Thread Length: Between 0.778 inches and 0.798 inches
Thread Qty Per Inch (tpi): 20
Thread Series Designator: Unjf (fine thread with external controlled root radius)
Width Between Flats: 0.563 inches
Hole Diameter: 0.055 inches
