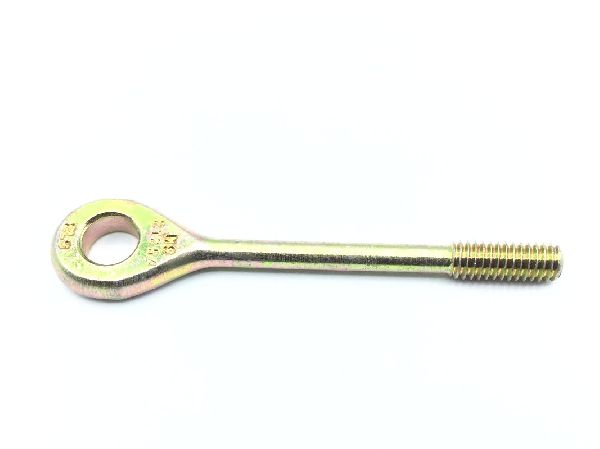

MS21254-2LS Rod End Connector

Product Series: MS
ECCN: EAR99
Schedule: 8536.69.5050

Price per Unit $37.35

Units per Pack 1

Price per Pack $37.35

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Quantity will be increased in increments of 1

Total Unit Quantity:

Total Packs 1

Total Price $37.35

Add item to quote

Surface Treatment

Cl 3 federal specification single treatment response type 2 qq-p-416

Thread Class

3a rod connection

Thread Size

0.138 inches rod connection

Distance From End To Hole Center: Between 1.485 inches and 1.531 inches
Hole Shape: Round
Iii Material: Steel comp
Material Specification: Mil-s-6050 military specification 1st material response or mil-s-6758 military specification 2nd material response
Radius: 0.187 inches
Shank Outside Diameter: 0.138 inches
Shanklength: 1.175 inches
Style Designator: Connector
Thread Direction: Left-hand rod connection
Thread Length: 0.328 inches rod connection and 0.422 inches rod connection
Thread Series Designator: Unf (fine thread) rod connection
Tongue Thickness: Between 0.120 inches and 0.130 inches
Tongue Width: 0.375 inches
Hole Diameter: 0.190 inches
