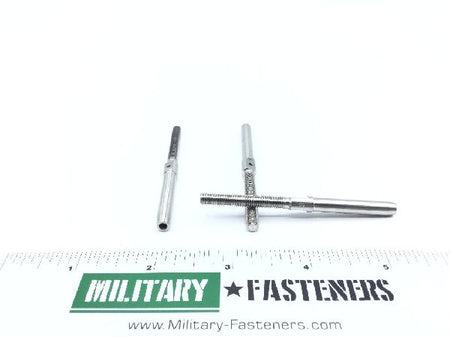

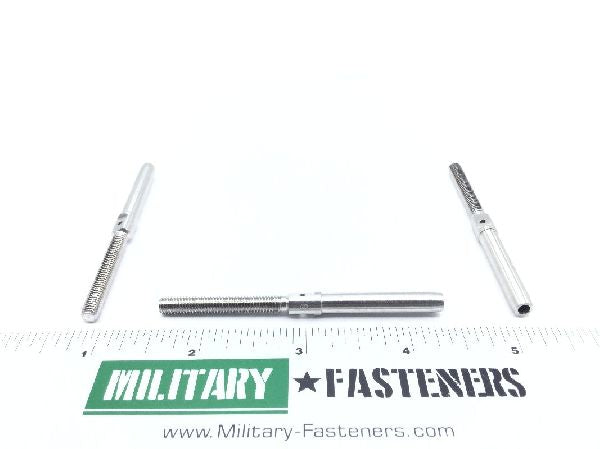

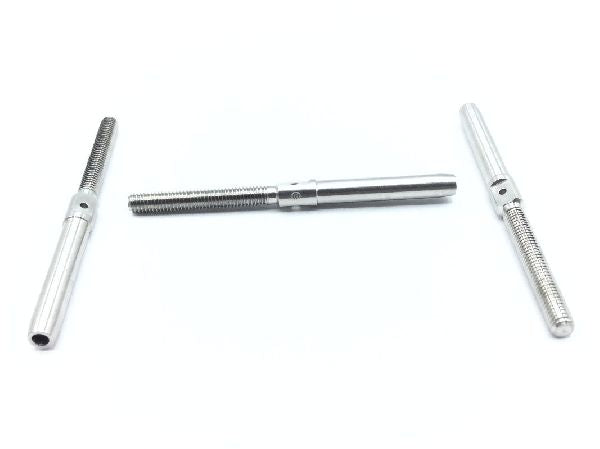

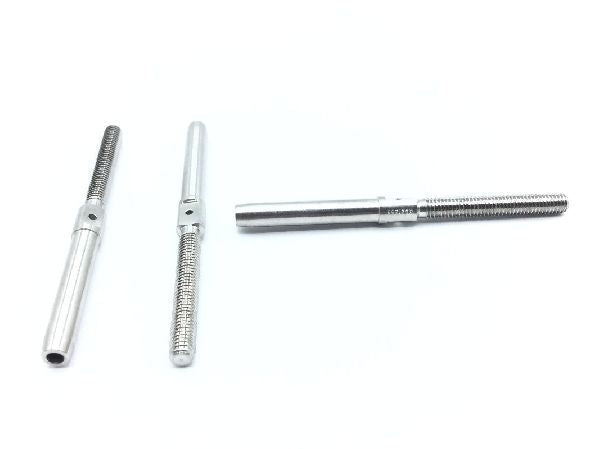

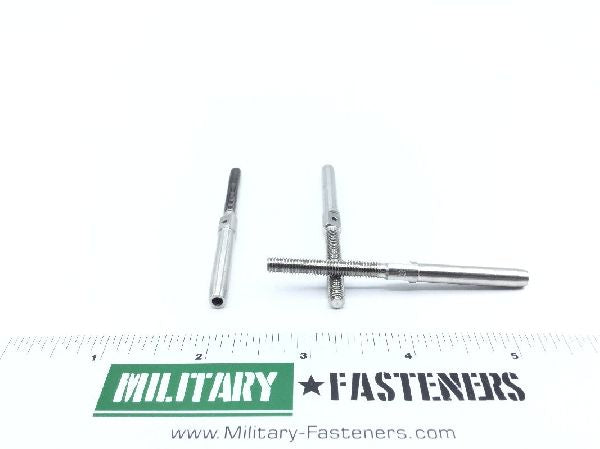

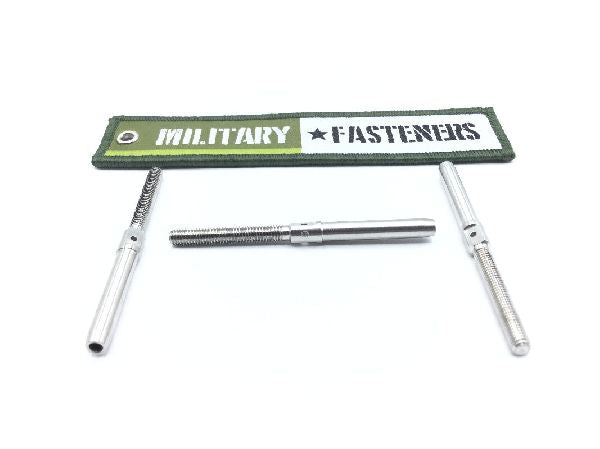

MS21259-3RH Wire Rope Stud Terminal

Product Series: MS
ECCN: EAR99
Schedule: 8536.90.4000

Price per Unit $10.74

Units per Pack 5

Price per Pack $53.70

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Quantity will be increased in increments of 5

Total Unit Quantity:

Total Packs 1

Total Price $53.70

Add item to quote

Material

Steel comp 303se and steel comp 305

Overall Length

Between 2.879 inches and 2.945 inches

Thread Class

Thread Size

0.190 inches

Accommodated Material Diameter: 0.094 inches
Breaking Strength: 920.0 pounds
Inside Diameter: Between 0.109 inches and 0.114 inches
Material Specification: 66 federal standard all material responses
Plain Shank Diameter: Between 0.213 inches and 0.218 inches
Plain Shank Length: Between 1.188 inches and 1.250 inches
Style Designator: Threaded
Thread Direction: Right-hand
Thread Length: Between 1.194 inches and 1.214 inches
Thread Qty Per Inch (tpi): 32
Thread Series Designator: Unf (fine thread)
Undercut Diameter: Between 0.169 inches and 0.190 inches
Width Across Flats: Between 0.240 inches and 0.260 inches
Hole Diameter: Between 0.058 inches and 0.063 inches
