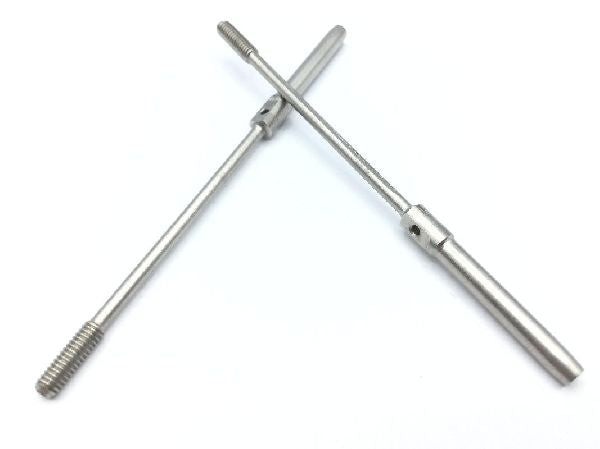

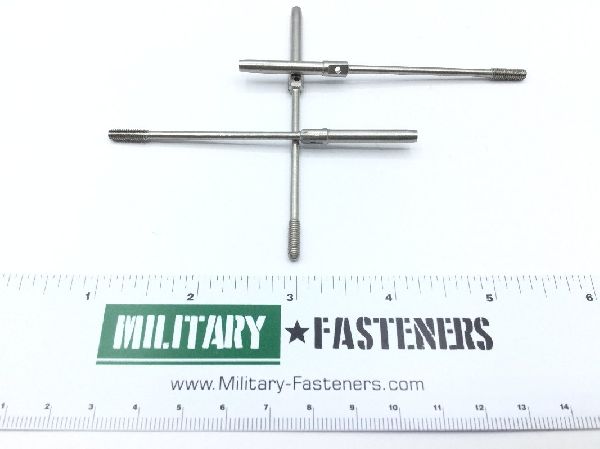

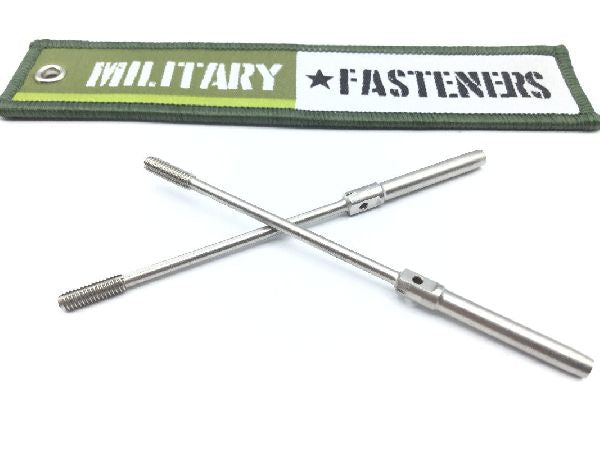

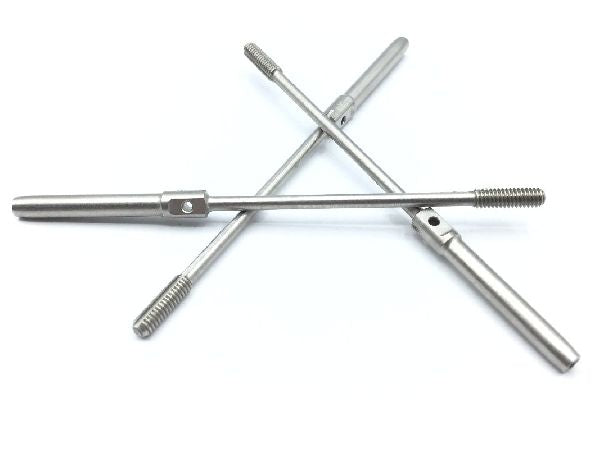

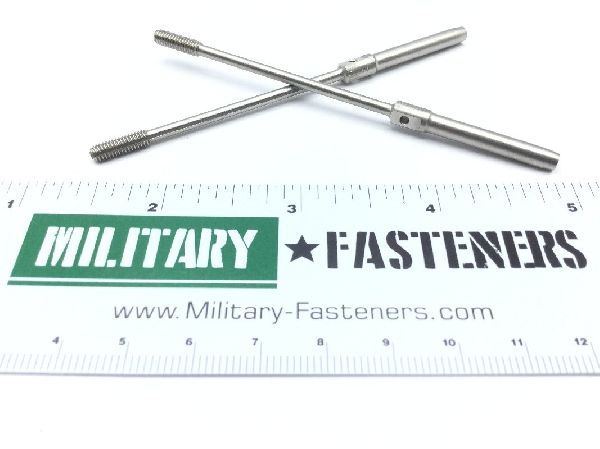

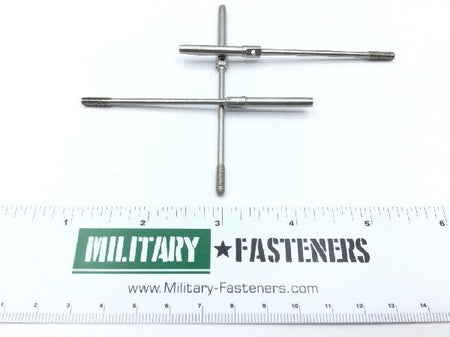

MS21260L2RH Wire Rope Stud Terminal

Product Series: MS
ECCN: EAR99
Schedule: 8536.90.4000

Price per Unit $12.40

Units per Pack 5

Price per Pack $62.00

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Quantity will be increased in increments of 5

Total Unit Quantity:

Total Packs 1

Total Price $62.00

Add item to quote

Overall Length

Between 3.428 inches and 3.554 inches

Thread Class

Thread Size

0.138 inches

Accommodated Material Diameter: 0.062 inches
Breaking Strength: 480.0 pounds
Inside Diameter: Between 0.078 inches and 0.083 inches
Plain Shank Diameter: Between 0.155 inches and 0.160 inches
Plain Shank Length: Between 0.969 inches and 1.031 inches
Style Designator: Threaded
Thread Direction: Right-hand
Thread Length: Between 0.332 inches and 0.422 inches
Thread Qty Per Inch (tpi): 40
Thread Series Designator: Unf (fine thread)
Undercut Diameter: Between 0.092 inches and 0.098 inches
Width Across Flats: 0.062 inches
Hole Diameter: Between 0.063 inches and 0.068 inches
