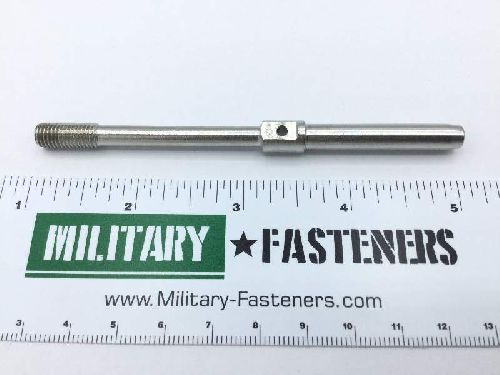

MS21260L4LH Wire Rope Stud Terminal

Product Series: MS
ECCN: EAR99
Schedule: 8536.90.4000

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Add to Quote

We are currently out of stock of this item. Click the button below to add this item to the quote and receive up to date pricing and availability by email.

Add to Quote

Material

Steel

Overall Length

Between 3.957 inches and 4.083 inches

Thread Class

Thread Size

0.250 inches

Accommodated Material Diameter: 0.125 inches
Breaking Strength: 2000.0 pounds
Inside Diameter: Between 0.141 inches and 0.146 inches
Material Specification: 66 federal standard all material responses
Plain Shank Diameter: Between 0.245 inches and 0.250 inches
Plain Shank Length: Between 1.438 inches and 1.500 inches
Style Designator: Threaded
Thread Direction: Left-hand
Thread Length: Between 0.516 inches and 0.610 inches
Thread Qty Per Inch (tpi): 28
Thread Series Designator: Unf (fine thread)
Undercut Diameter: Between 0.195 inches and 0.201 inches
Width Across Flats: 0.313 inches
Hole Diameter: Between 0.098 inches and 0.103 inches
