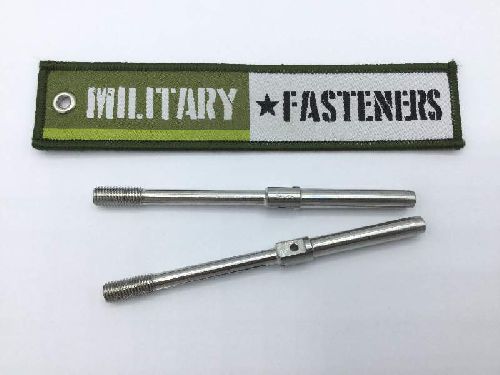

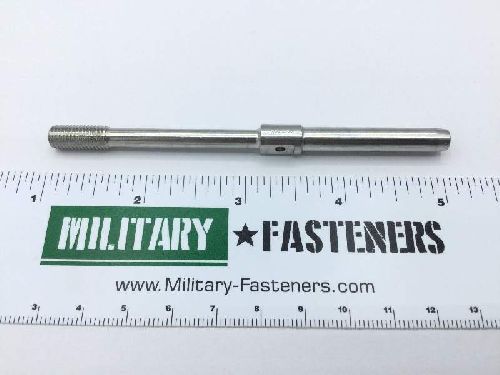

MS21260L4RH Wire Rope Stud Terminal

Product Series: MS
ECCN: EAR99
Schedule: 8536.90.4000

Price per Unit $21.00

Units per Pack 2

Price per Pack $42.00

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Quantity will be increased in increments of 2

Total Unit Quantity:

Total Packs 1

Total Price $42.00

Add item to quote

Material

Steel

Overall Length

Between 3.957 inches and 4.083 inches

Thread Class

Thread Size

0.250 inches

Accommodated Material Diameter: 0.125 inches
Breaking Strength: 2000.0 pounds
Inside Diameter: Between 0.141 inches and 0.146 inches
Material Specification: 66 federal standard all material responses
Plain Shank Diameter: Between 0.245 inches and 0.250 inches
Plain Shank Length: Between 1.438 inches and 1.500 inches
Style Designator: Threaded
Thread Direction: Right-hand
Thread Length: Between 0.516 inches and 0.610 inches
Thread Qty Per Inch (tpi): 28
Thread Series Designator: Unf (fine thread)
Undercut Diameter: Between 0.195 inches and 0.201 inches
Width Across Flats: 0.313 inches
Hole Diameter: Between 0.098 inches and 0.103 inches
