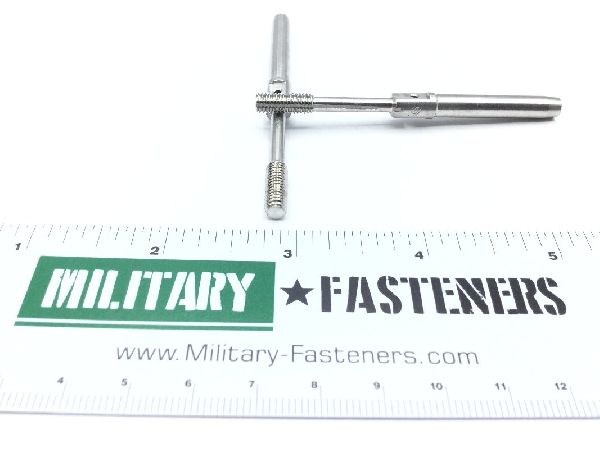

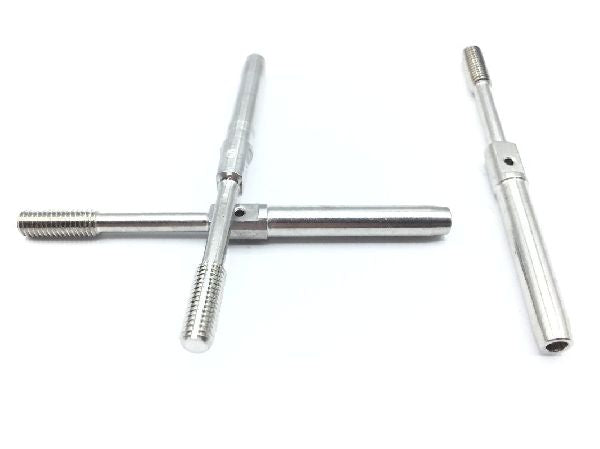

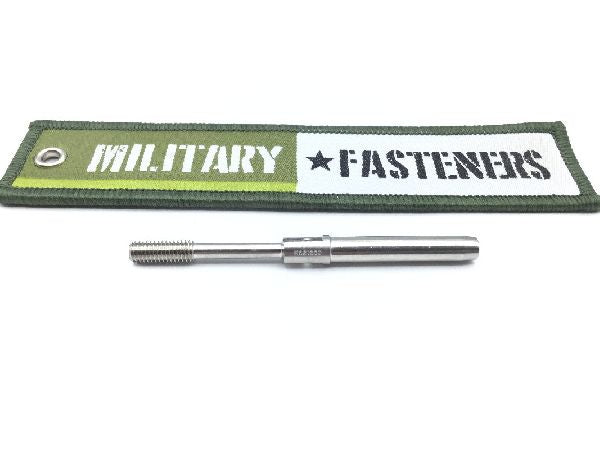

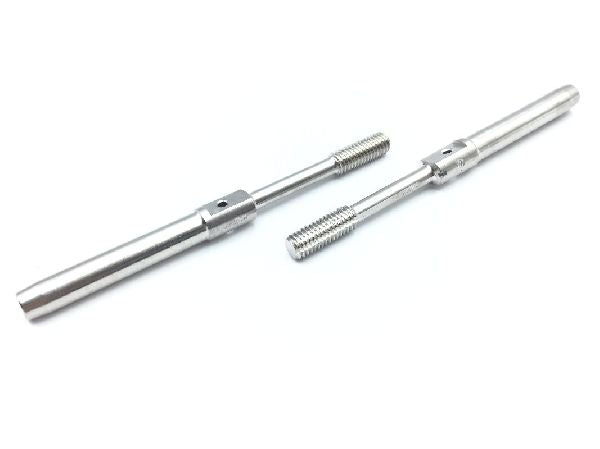

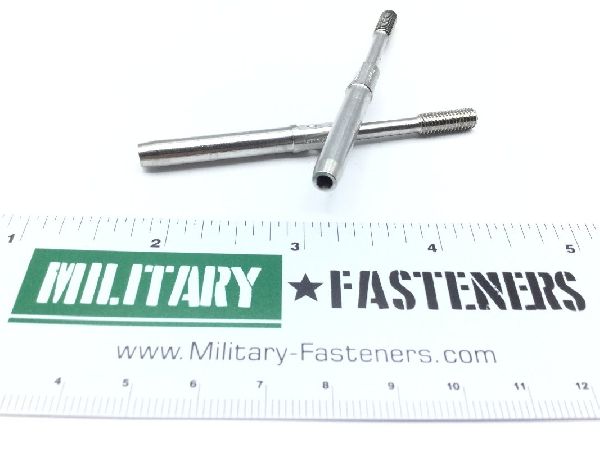

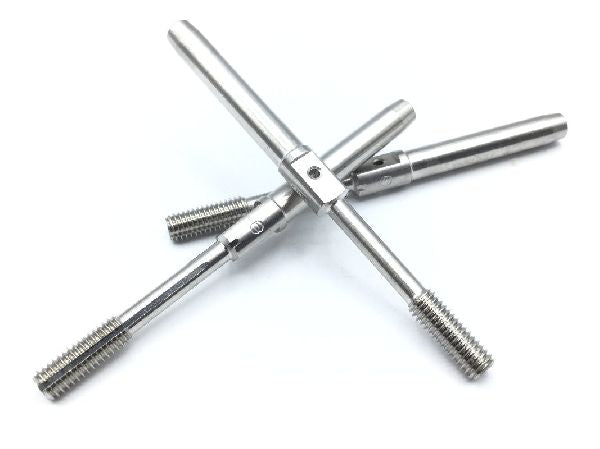

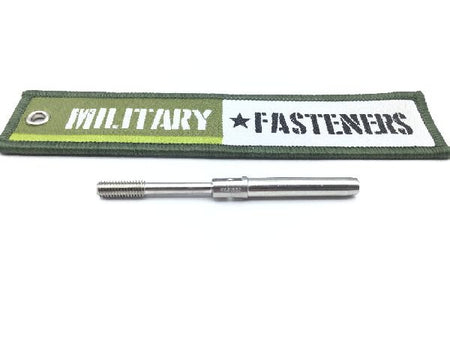

MS21260S3RH Wire Rope Stud Terminal

Product Series: MS
ECCN: EAR99
Schedule: 8536.90.4000

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Add to Quote

We are currently out of stock of this item. Click the button below to add this item to the quote and receive up to date pricing and availability by email.

Add to Quote

Material

Steel comp 303se and steel comp 305

Overall Length

Between 2.80 inches and 2.926 inches

Thread Class

Thread Size

0.19 inches

Accommodated Material Diameter: 0.094 inches
Breaking Strength: 920.0 pounds
Inside Diameter: Between 0.109 inches and 0.114 inches
Plain Shank Diameter: Between 0.213 inches and 0.218 inches
Plain Shank Length: Between 1.188 inches and 1.25 inches
Specification Data: 80205-nas650 professional/industrial association standard
Style Designator: Threaded
Thread Direction: Right-hand
Thread Length: Between 0.453 inches and 0.547 inches
Thread Qty Per Inch (tpi): 32
Thread Series Designator: Unf (fine thread)
Undercut Diameter: Between 0.133 inches and 0.139 inches
Width Across Flats: 0.250 inches
Hole Diameter: Between 0.063 inches and 0.068 inches
