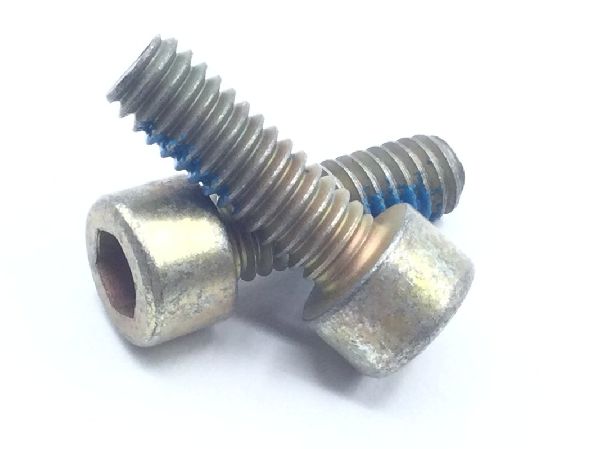

MS21262-28 Socket Head Cap Screw

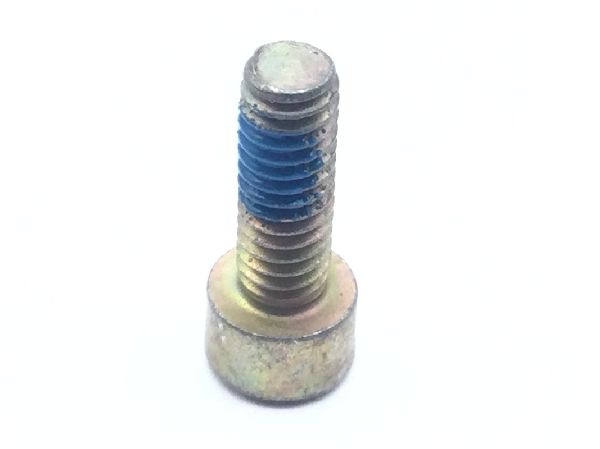

MS21262-28 Socket Head Cap Screw (2)

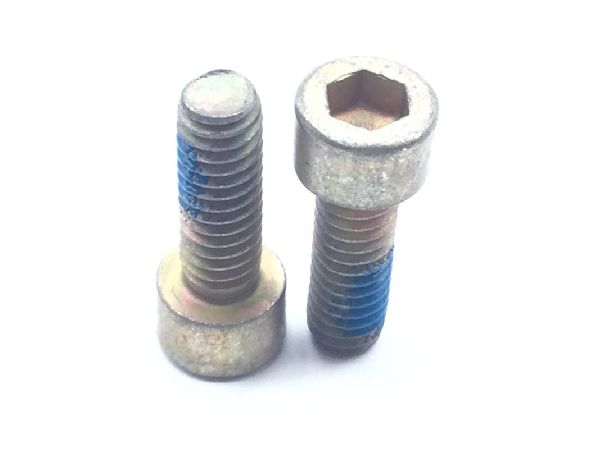

MS21262-28 Socket Head Cap Screw (3)

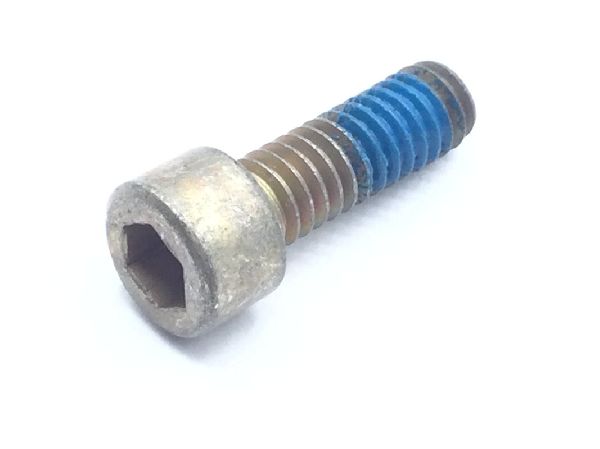

MS21262-28 Socket Head Cap Screw (4)

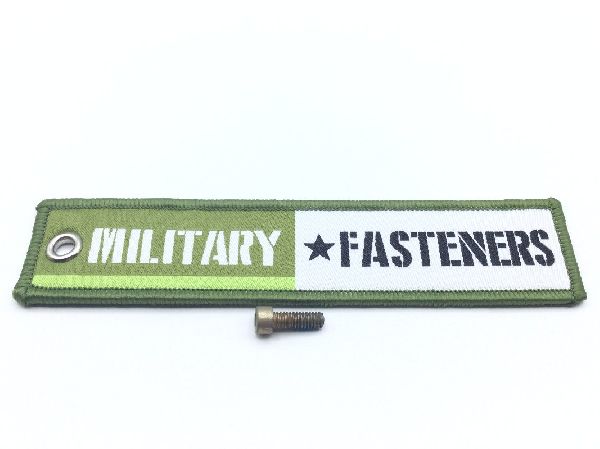

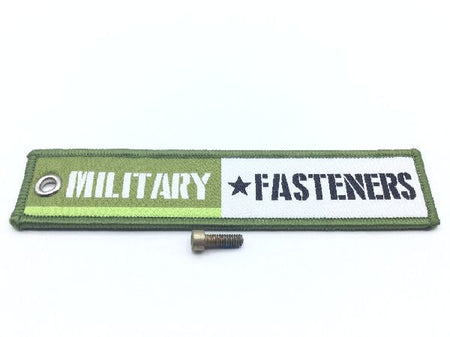

MS21262-28 Socket Head Cap Screw (5)

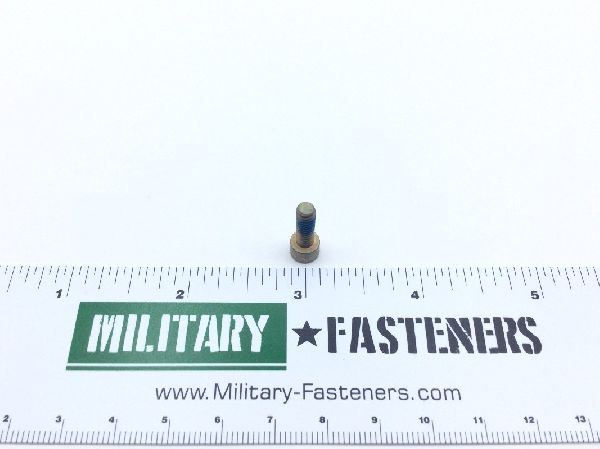

MS21262-28 Socket Head Cap Screw (6)

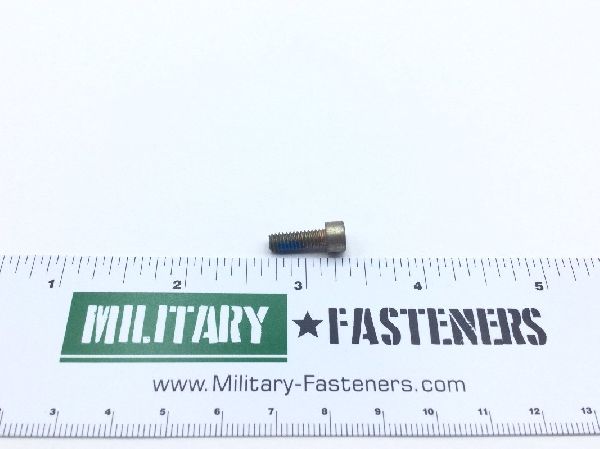

MS21262-28 Socket Head Cap Screw (7)
MS21262-28 Socket Head Cap Screw
MS21262-28 Socket Head Cap Screw (2)
MS21262-28 Socket Head Cap Screw (3)
MS21262-28 Socket Head Cap Screw (4)
MS21262-28 Socket Head Cap Screw (5)
MS21262-28 Socket Head Cap Screw (6)
MS21262-28 Socket Head Cap Screw (7)

Disclaimer: Actual product colors may vary slightly from the images shown due to different monitor settings and lighting conditions during photo shoots.

MS21262-28 Socket Head Cap Screw

Product Series
MS
ECCN
EAR99
Schedule
7318.15.9000
Price per Unit $4.08
Units per Pack 10
Price per Pack $40.80
Manufacturer certifications are shipped with your order FREE of charge
Unit of Measure: EA

Quantity will be increased in increments of 10

Total Unit Quantity:
Total Packs 1
Total Price $40.80
Add item to quote
Head Style
Flat chamfer
Material
Steel
Surface Treatment
Class 3 federal specification all treatment responses type2 qq-p-416
Thread Class
3a
Fastener Length
0.500 inches
Hardness Rating
36.0 rockwell c and 45.0 rockwell c
Head Height
Between 0.159 inches and 0.164 inches
Internal Drive Style
Hexagon
Locking Feature
Patch threads or pellet threads or strip threads
Min. Tensile Strength (psi)
130000 pounds per square inch
Nondefinitive Specification/std Data
6 type
Thread Diameter
0.164 inches
Thread Direction
Right-hand
Thread Length
0.438 inches
Thread Qty Per Inch (tpi)
32
Thread Series Designator
Unc (coarse thread)
Width Across Flats
Between 0.141 inches and 0.143 inches
Head Diameter
Between 0.262 inches and 0.270 inches
