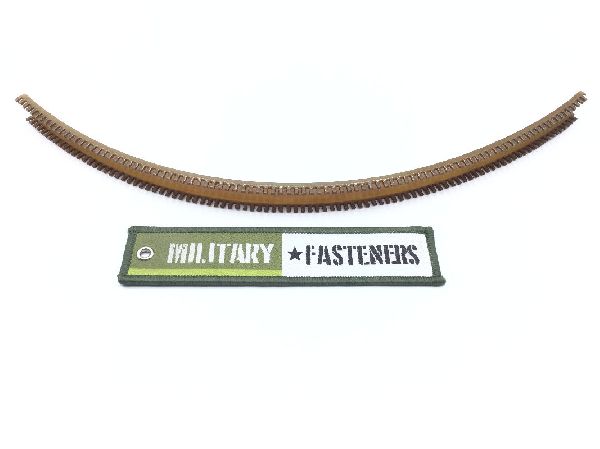

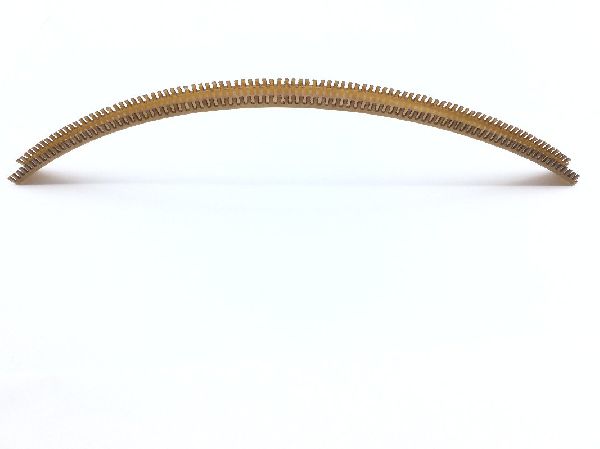

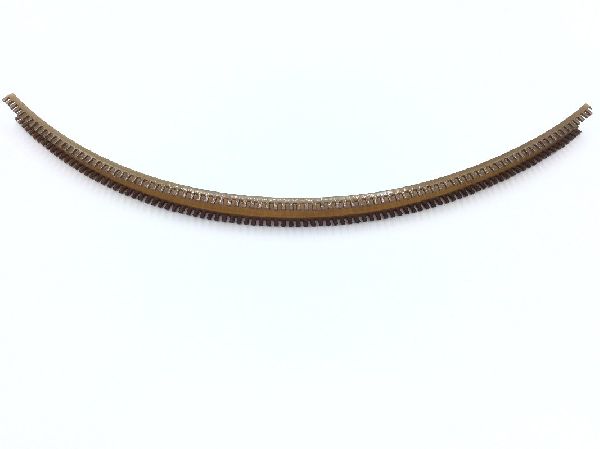

MS21266-8T Nonmetallic Grommet

Product Series: MS
ECCN: EAR99
Schedule: 7326.90.8695

Unit of Measure: EA

Add to Quote

We are currently out of stock of this item. Click the button below to add this item to the quote and receive up to date pricing and availability by email.

Add to Quote

Material

Plastic polytetrafluoroethylene

Color: Any acceptable
Grommet Construction Type: Split
Grommet Length: 12.75 inches
Grommet Style: Edging
Groove Depth: Between 0.175 inches and 0.185 inches
Groove Width: Between 0.51 inches and 0.52 inches
Material Specification: Ams 3652 assn standard single material response
Overall Height: Between 0.635 inches and 0.645 inches
Overall Width: Between 0.25 inches and 0.26 inches
Tab Width: Between 0.062 inches and 0.072 inches
Width Between Tabs: Between 0.062 inches and 0.072 inches
