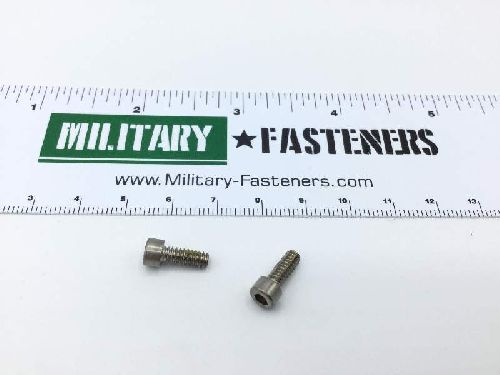

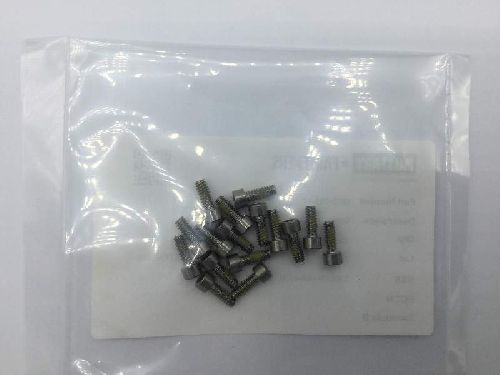

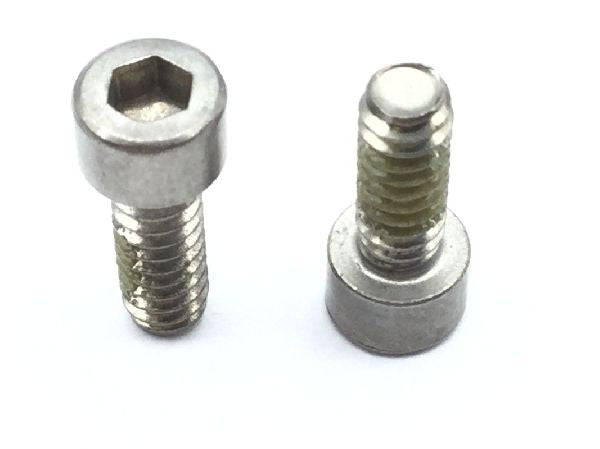

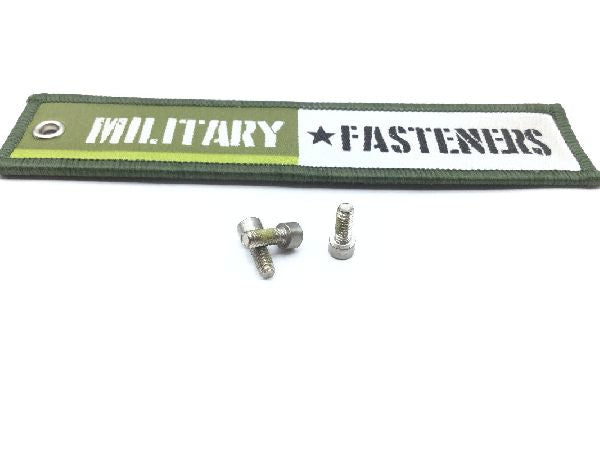

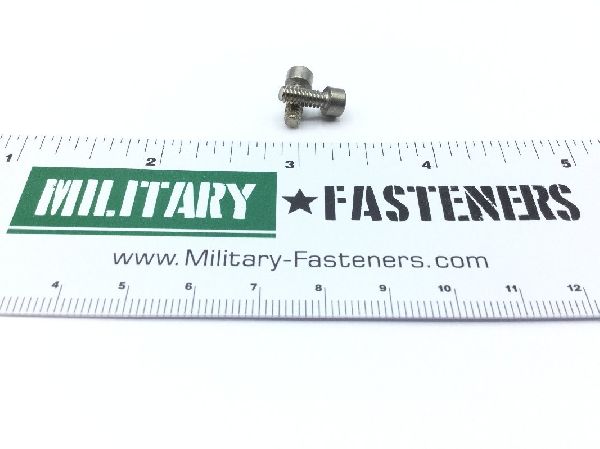

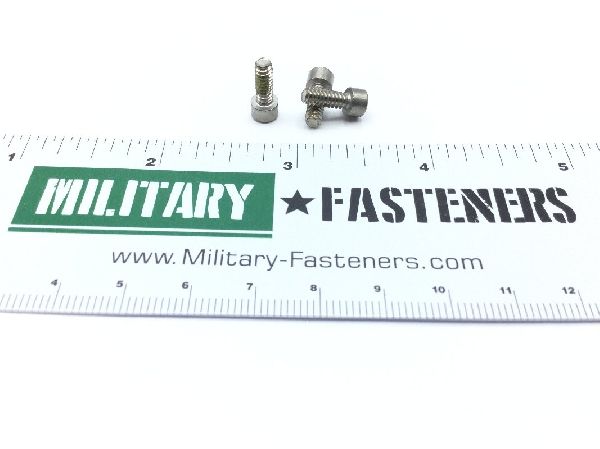

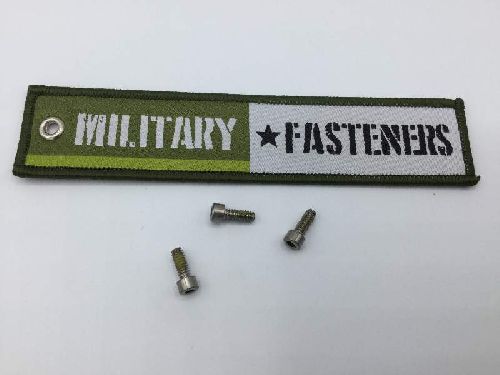

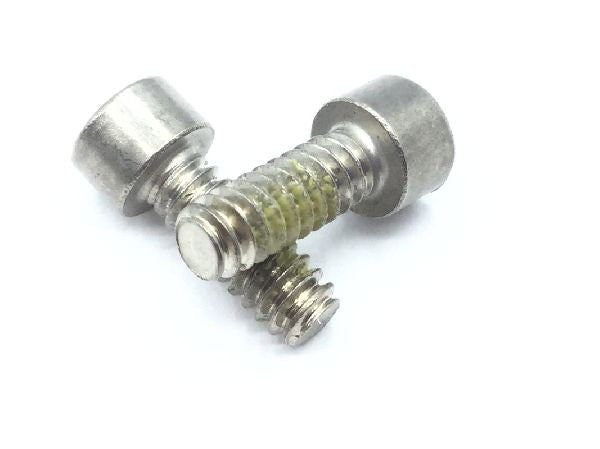

MS21295-14 Socket Head Cap Screw

Product Series: MS
ECCN: EAR99
Schedule: 7318.15.9000

Unit of Measure: EA

Add to Quote

We are currently out of stock of this item. Click the button below to add this item to the quote and receive up to date pricing and availability by email.

Add to Quote

Head Style

Flat chamfer

Material

Steel comp 302 or steel comp 303 or steel comp 304 or steel comp 305 or steel comp 316

Surface Treatment

Qq-p-35 federal specification single treatment response

Thread Class

Fastener Length: Between 0.360 inches and 0.390 inches
Hardness Rating: 80.0 rockwell b
Head Height: Between 0.134 inches and 0.138 inches
Internal Drive Style: Hexagon
Locking Feature: Pellet threads or strip threads
Material Specification: 66 federal standard all material responses
Min. Tensile Strength (psi): 80000 pounds per square inch
Minimum Yield Strength: 30000 pounds per square inch
Thread Diameter: 0.138 inches
Thread Direction: Right-hand
Thread Length: Between 0.298 inches and 0.360 inches
Thread Qty Per Inch (tpi): 32
Thread Series Designator: Unc (coarse thread)
Width Across Flats: Between 0.109 inches and 0.111 inches
Head Diameter: Between 0.218 inches and 0.226 inches
