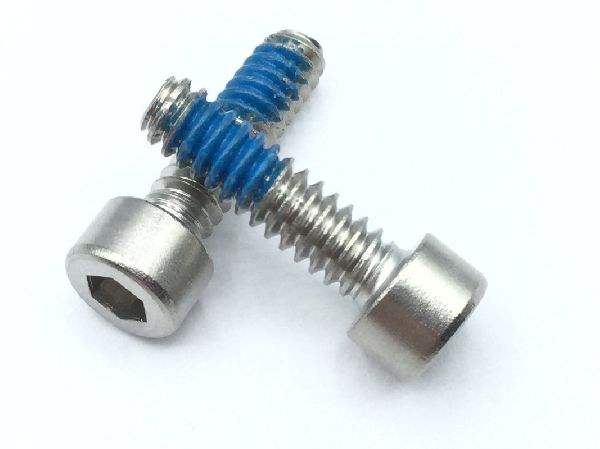

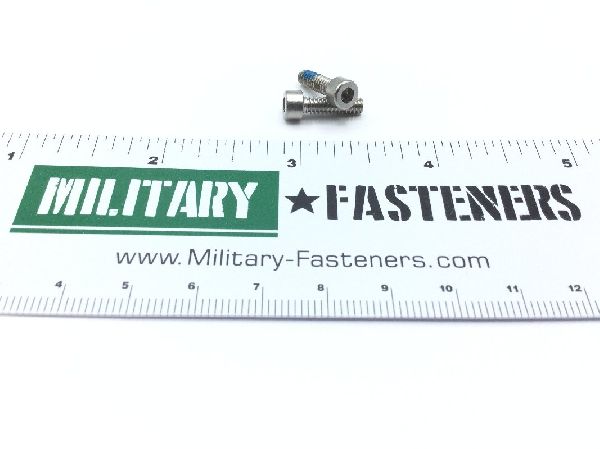

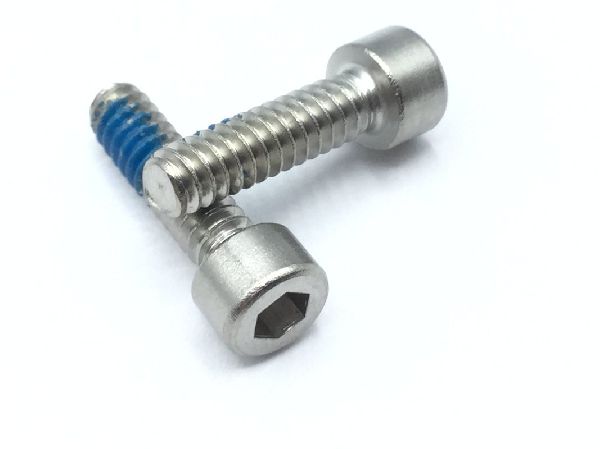

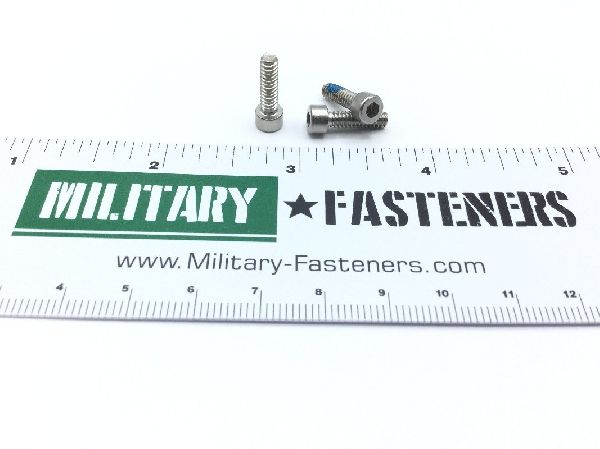

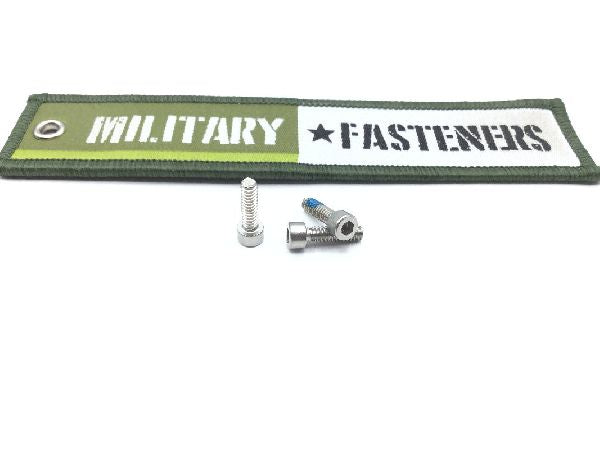

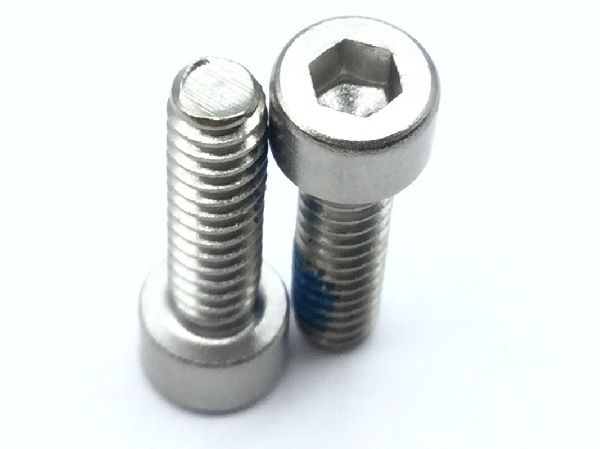

MS21295-27 Socket Head Cap Screw

Product Series: MS
ECCN: EAR99
Schedule: 7318.15.9000

Price per Unit $2.15

Units per Pack 25

Price per Pack $53.75

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Quantity will be increased in increments of 25

Total Unit Quantity:

Total Packs 1

Total Price $53.75

Add item to quote

Head Style

Flat chamfer

Material

Steel comp 302 or steel comp 303 or steel comp 304 or steel comp 305 or steel comp 316

Thread Class

Fastener Length: Between 0.485 inches and 0.515 inches
Head Height: Between 0.134 inches and 0.138 inches
Internal Drive Style: Hexagon
Locking Feature: Patch threads or pellet threads or strip threads
Material Specification: 66 federal standard all material responses
Minimum Yield Strength: 30000 pounds per square inch
Thread Diameter: 0.138 inches
Thread Direction: Right-hand
Thread Length: Between 0.485 inches and 0.515 inches
Thread Qty Per Inch (tpi): 32
Thread Series Designator: Unc (coarse thread)
Width Across Flats: Between 0.133 inches and 0.138 inches
Head Diameter: Between 0.218 inches and 0.226 inches
