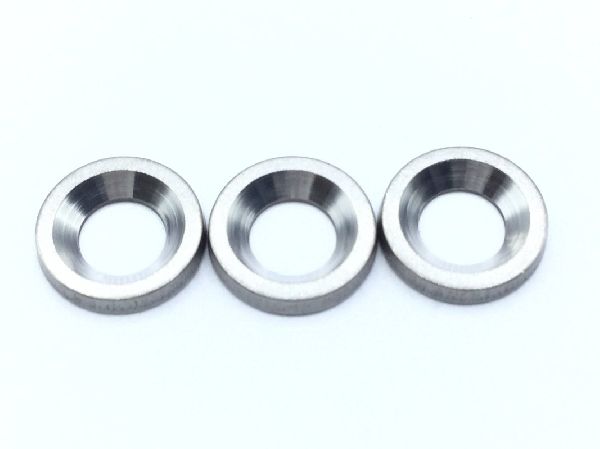

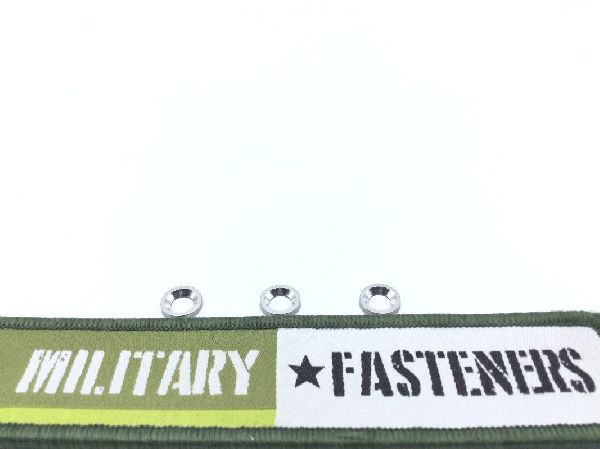

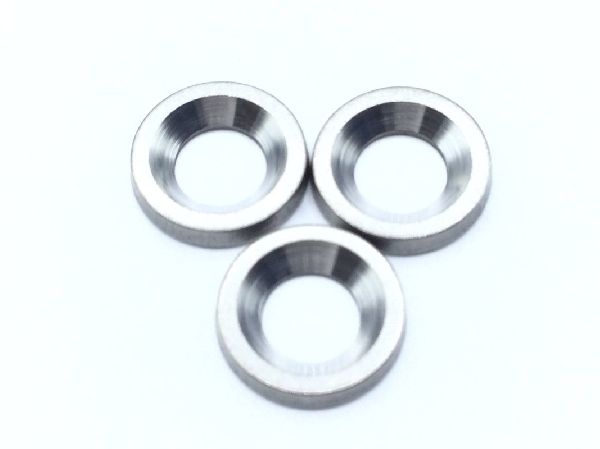

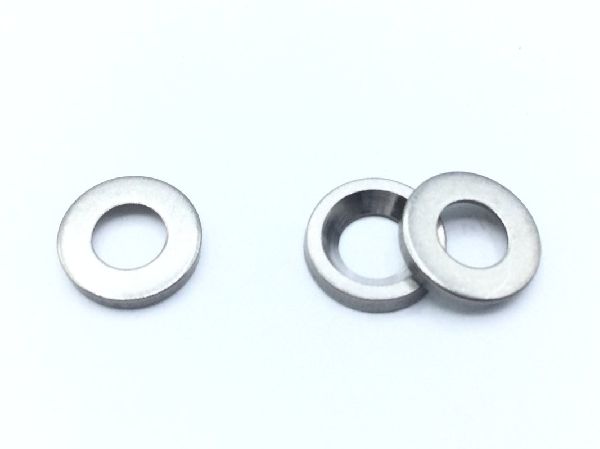

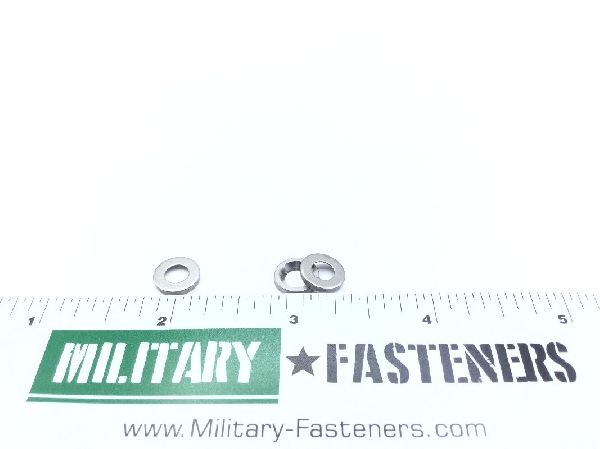

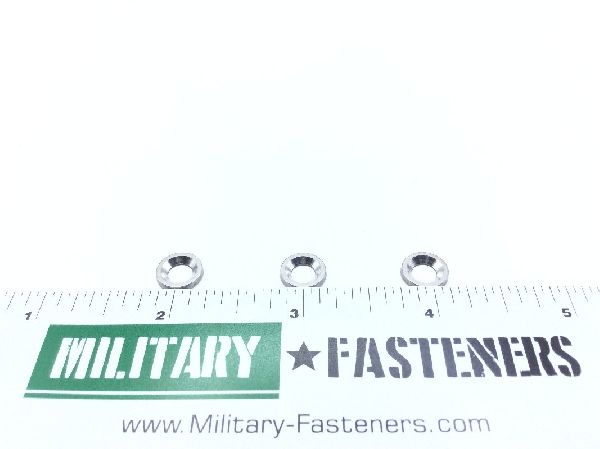

MS21299C3K Flat Washer

Product Series: MS
ECCN: EAR99
Schedule: 7318.22.0000

Unit of Measure: EA

Add to Quote

We are currently out of stock of this item. Click the button below to add this item to the quote and receive up to date pricing and availability by email.

Add to Quote

Material

Steel comp 630

Surface Treatment

Qq-p-35 federal specification single treatment response

End Application: Armored vehicle mounted:multiple launc (coarse thread)h rocket system rocket 1055-01-450-4243;launc (coarse thread)her
Hardness Rating: Between 35.0 rockwell c and 42.0 rockwell c
Material Specification: 17-4ph assn standard single material response ams 5604
Material Thickness: Between 0.057 inches and 0.069 inches
Outside Diameter: Between 0.377 inches and 0.387 inches
Recess Angle: 90 degrees
Recess Diameter: Between 0.280 inches and 0.290 inches
Specification Data: 80205-nas-21299 professional/industrial association standard
Style Designator: Recessed
Surface Finish: 125 microinches all surfaces
Hole Diameter: Between 0.191 inches and 0.195 inches
