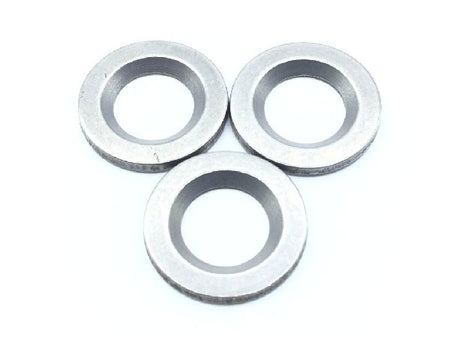

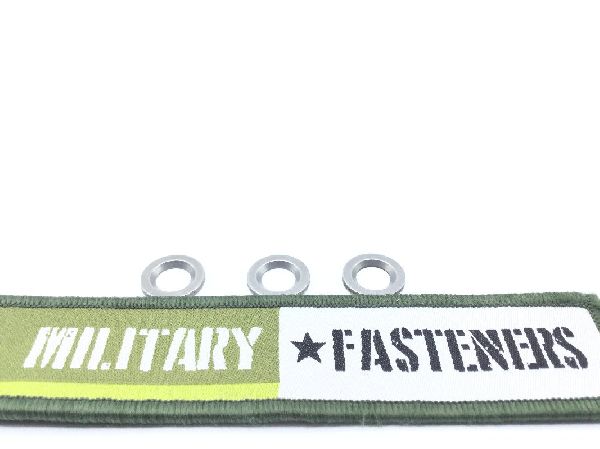

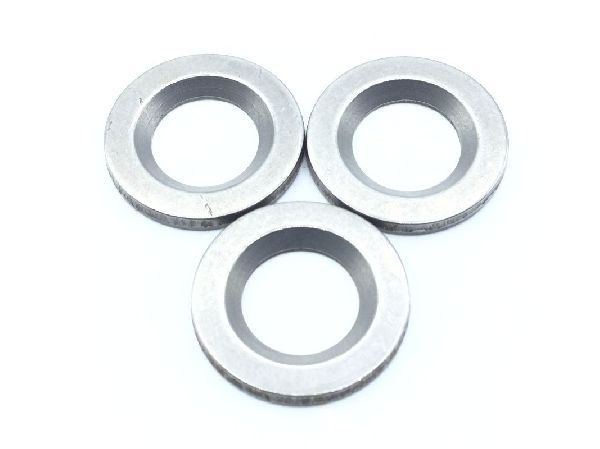

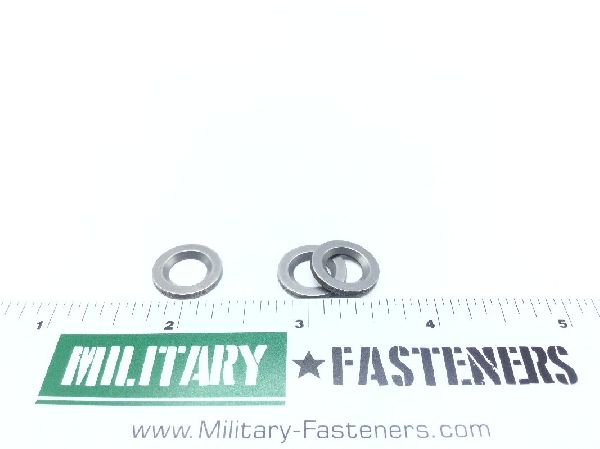

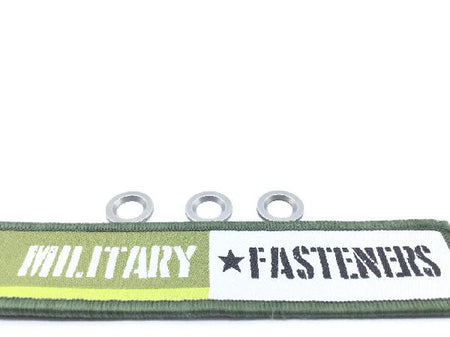

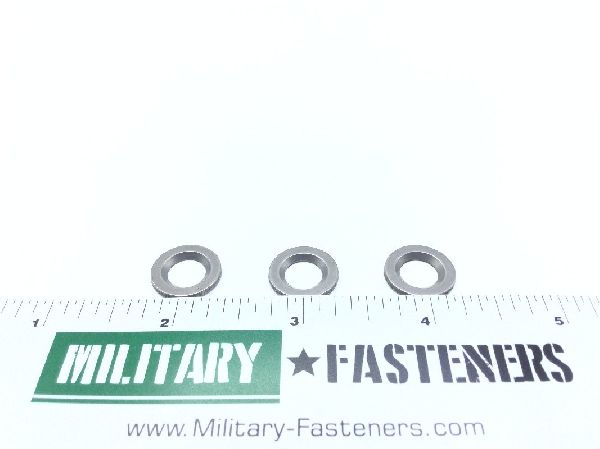

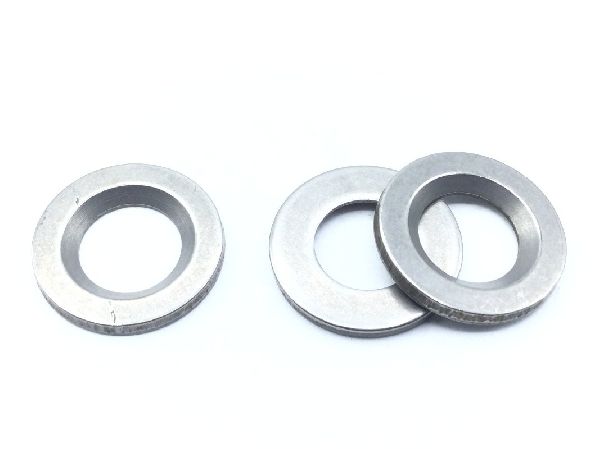

MS21299C5K Recessed Washer

Product Series: MS
ECCN: EAR99
Schedule: 7318.22.0000

Price per Unit $2.10

Units per Pack 20

Price per Pack $42.00

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Quantity will be increased in increments of 20

Total Unit Quantity:

Total Packs 1

Total Price $42.00

Add item to quote

Material

Steel comp 630

Surface Treatment

Qq-p-35 federal specification single treatment response

Hardness Rating: Between 35 rockwell c and 42 rockwell c
Material Specification: Cond h 1025 assn standard single material response 17-4ph ams 5604
Material Thickness: Between 0.057 inches and 0.069 inches
Outside Diameter: Between 0.588 inches and 0.598 inches
Recess Angle: 90 degrees
Recess Diameter: Between 0.402 inches and 0.412 inches
Specification Data: 80205-nas-21299 professional/industrial association standard
Style Designator: Recessed
Surface Finish: 125 microinches all surfaces
Hole Diameter: Between 0.314 inches and 0.318 inches
