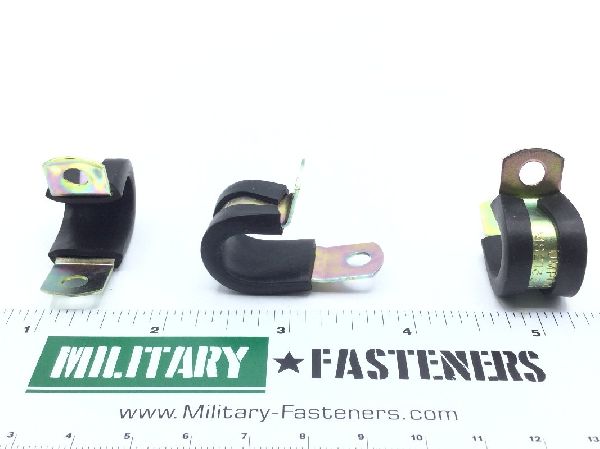

MS21333-70 Loop Clamp

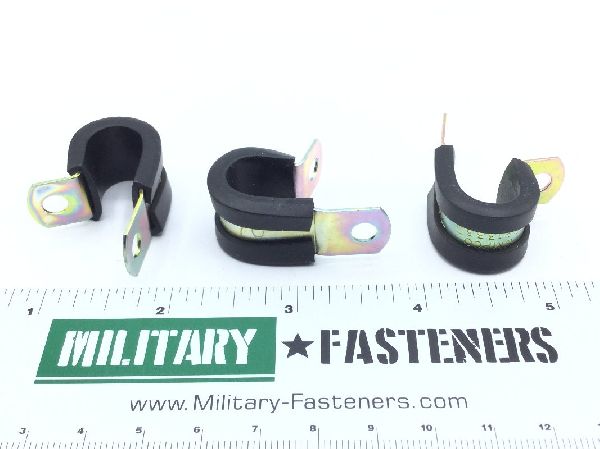

MS21333-70 Loop Clamp (2)

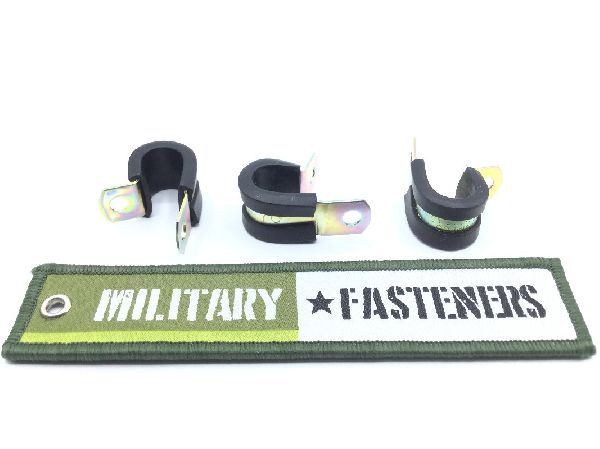

MS21333-70 Loop Clamp (3)

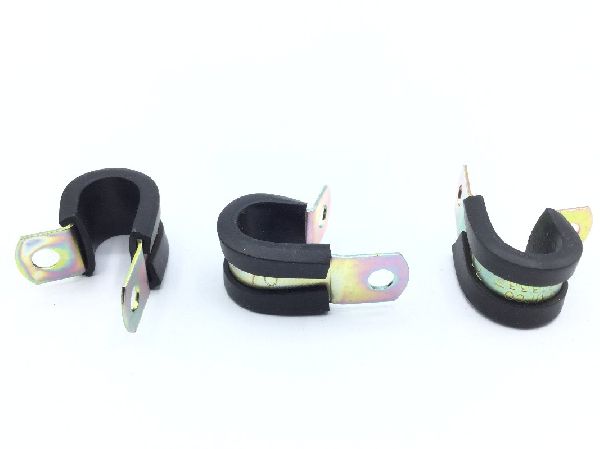

MS21333-70 Loop Clamp (4)

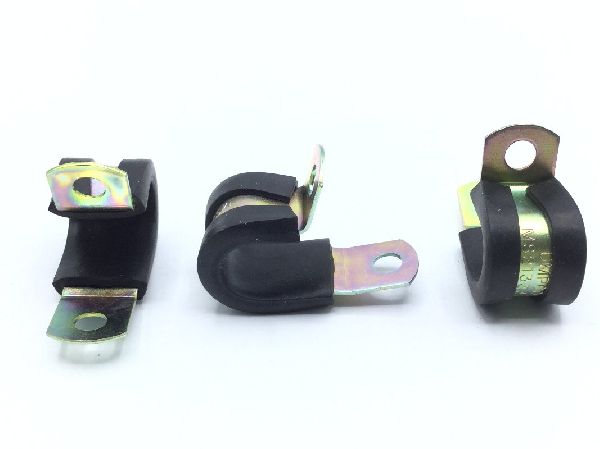

MS21333-70 Loop Clamp (5)

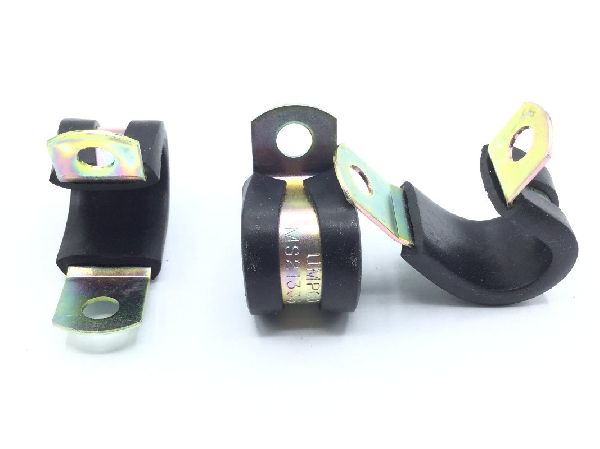

MS21333-70 Loop Clamp (6)
MS21333-70 Loop Clamp
MS21333-70 Loop Clamp (2)
MS21333-70 Loop Clamp (3)
MS21333-70 Loop Clamp (4)
MS21333-70 Loop Clamp (5)
MS21333-70 Loop Clamp (6)

Disclaimer: Actual product colors may vary slightly from the images shown due to different monitor settings and lighting conditions during photo shoots.

MS21333-70 Loop Clamp

Product Series
MS
ECCN
EAR99
Schedule
8539.29.2500
Unit of Measure: EA

Add to Quote

We are currently out of stock of this item. Click the button below to add this item to the quote and receive up to date pricing and availability by email.

Add to Quote
Material
Rubber cushion
Center To Center Distance Between Loop And Mounting Hole
Between 0.490 inches and 0.510 inches
Distance From Loop Center To Tongue End
Between 0.709 inches and 0.729 inches
Loop Inside Diameter
Between 0.428 inches and 0.448 inches
Material Specification
Aisi c1005 thru c1020 assn standard single material response band or sae 1006 thru 1020 assn standard single material response band
Material Thickness
Between 0.022 inches and 0.042 inches
Overall Width
Between 0.615 inches and 0.635 inches
Style Designator
Single loop
Tongue Hole Type
unthreaded round
Diameter
Between 0.193 inches and 0.213 inches
