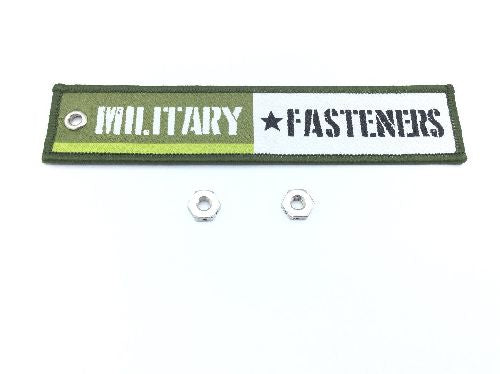

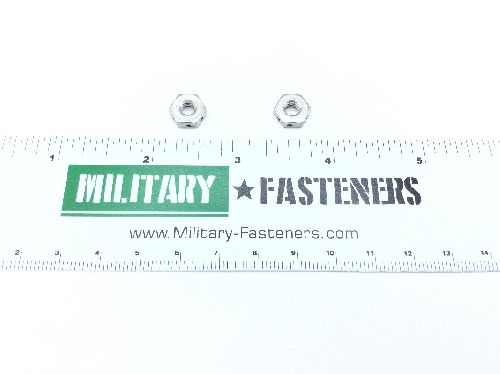

MS21340-02 Plain Hexagon Nut

Product Series: MS
ECCN: EAR99
Schedule: 7318.16.0085

Price per Unit $9.70

Units per Pack 5

Price per Pack $48.50

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Quantity will be increased in increments of 5

Total Unit Quantity:

Total Packs 1

Total Price $48.50

Add item to quote

Material

Steel

Surface Treatment

Qq-p-35 federal specification single treatment response

Thread Class

Thread Series

Unf (fine thread)

Thread Size

0.190 inches

Bearing Surface Type: Chamfered
Drilled Hole Diameter: 0.047 inches
Hole Configuration Style: Configuration c
Hole Type And Quantity: 2 drilled
Material Specification: Qq-s-763 federal specification all material responses
Nondefinitive Specification/std Data: 2 type and 5 style
Nut Height: Between 0.120 inches and 0.130 inches
Nut Style: Hexagon
Thread Direction: Right-hand
Thread Qty Per Inch (tpi): 32
Width Across Flats: Between 0.367 inches and 0.376 inches
