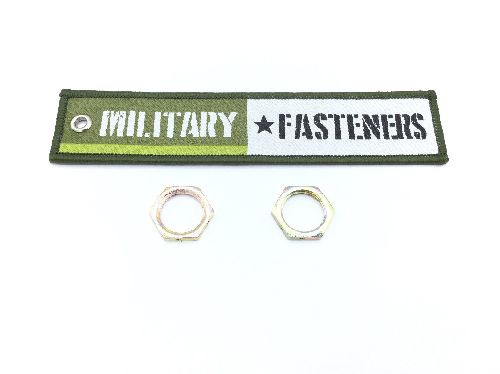

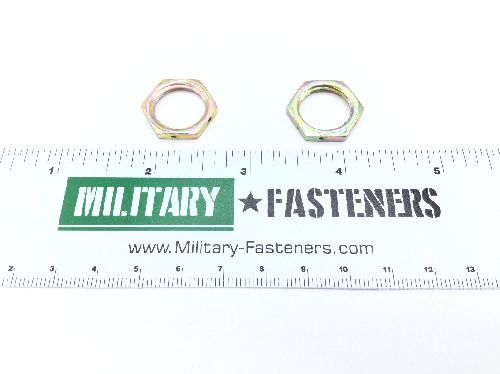

MS21340-28 Plain Hexagon Nut

Product Series: MS
ECCN: EAR99
Schedule: 7318.16.0085

Unit of Measure: EA

Add to Quote

We are currently out of stock of this item. Click the button below to add this item to the quote and receive up to date pricing and availability by email.

Add to Quote

Material

Steel

Surface Treatment

Class 2 federal specification single treatment response type 2 qq-p-416

Thread Class

Thread Series

Unf (fine thread)

Thread Size

0.625 inches

Bearing Surface Type: Chamfered
Drilled Hole Diameter: 0.047 inches
Hole Configuration Style: Configuration b
Hole Type And Quantity: 3 drilled
Material Specification: 66 federal standard single material response
Nut Height: Between 0.120 inches and 0.130 inches
Nut Style: Hexagon
Thread Direction: Right-hand
Thread Qty Per Inch (tpi): 18
Width Across Flats: Between 0.741 inches and 0.752 inches
