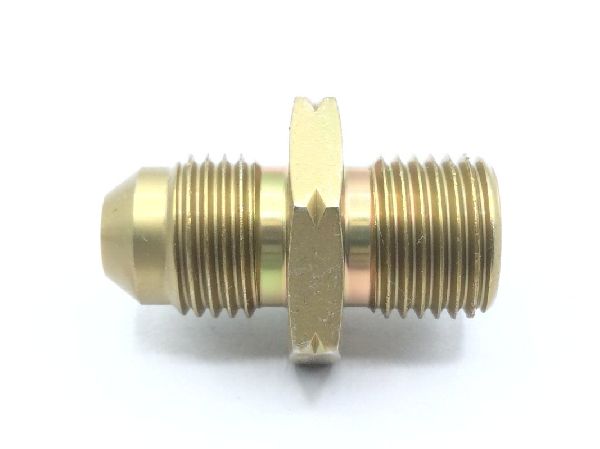

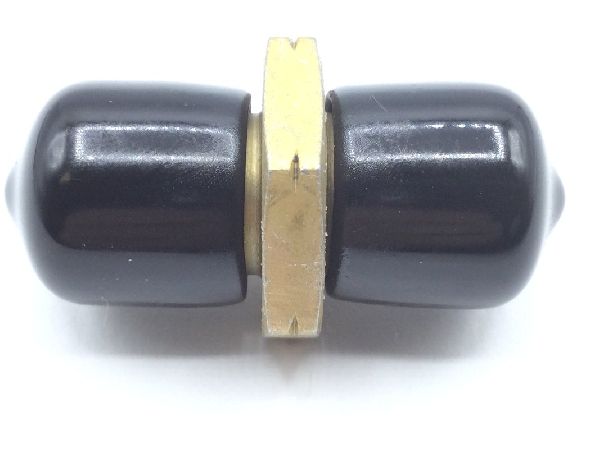

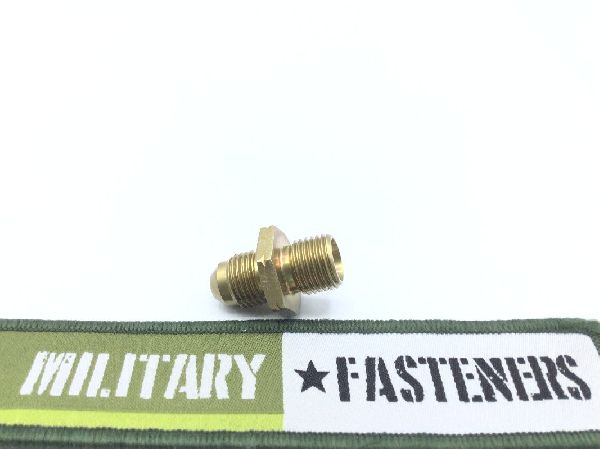

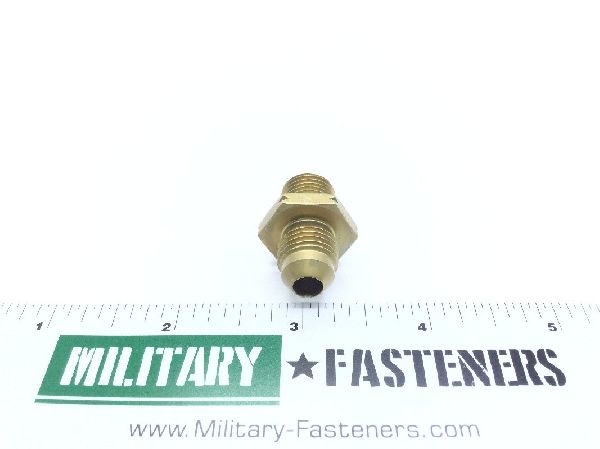

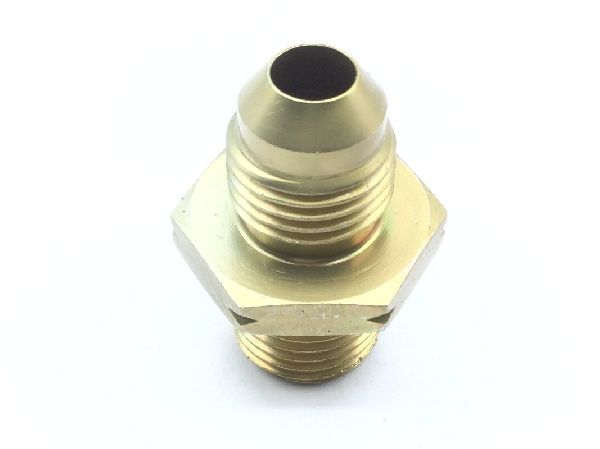

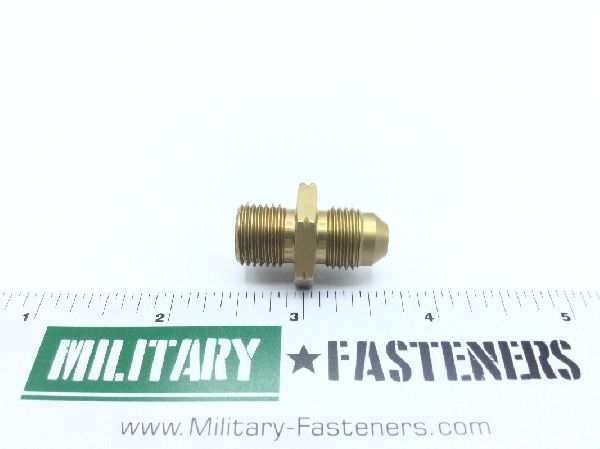

MS21900-5 Boss Nipple

Product Series: MS
ECCN: EAR99
Schedule: 7326.90.8695

Price per Unit $45.66

Units per Pack 1

Price per Pack $45.66

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Quantity will be increased in increments of 1

Total Unit Quantity:

Total Packs 1

Total Price $45.66

Add item to quote

Material

Steel comp 1137

Surface Treatment

Class 3 federal specification single treatment response ty1 qq-p-416

Thread Class

3a all ends

Thread Size

0.500 inches all ends

Connection Style: Flared with gasket seal (boss) 1st end
Connection Type: Threaded external boss all ends
Material Specification: Fed std66 federal standard single material response
Maximum Operating Pressure: 3000 pounds per square inch single response
Maximum Operating Temp: 225 degrees fahrenheit single response
Media For Which Designed: Hydraulic fluid single response
Nominallength: 1.281 inches
Style Designator: Flared and flareless with center wrenching facility
Thread Series Designator: Unjf (fine thread with external controlled root radius) all ends
