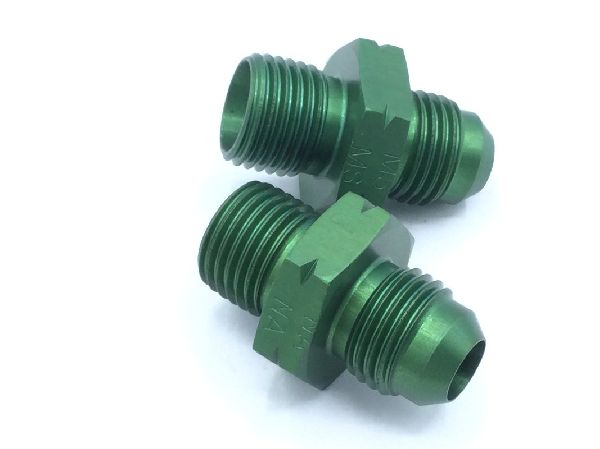

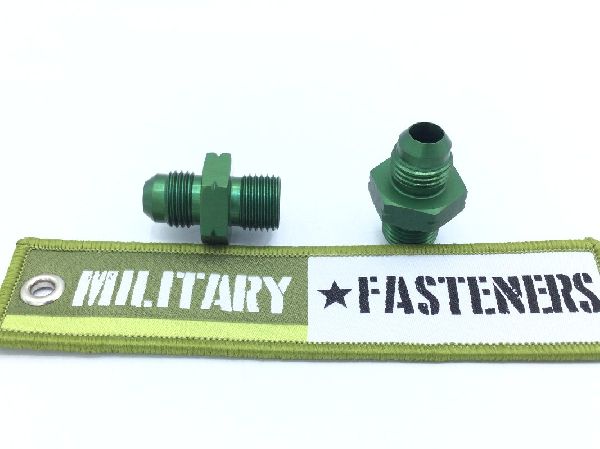

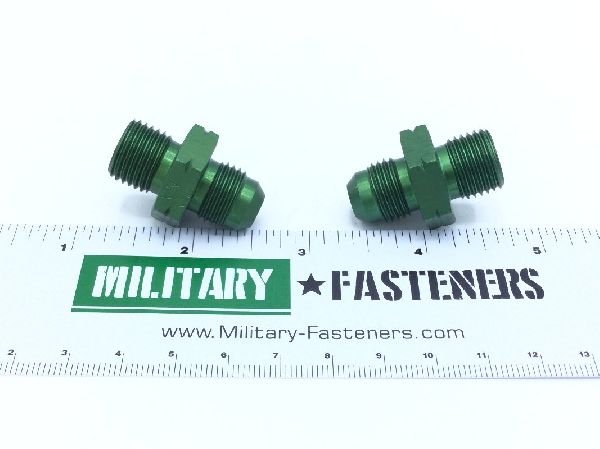

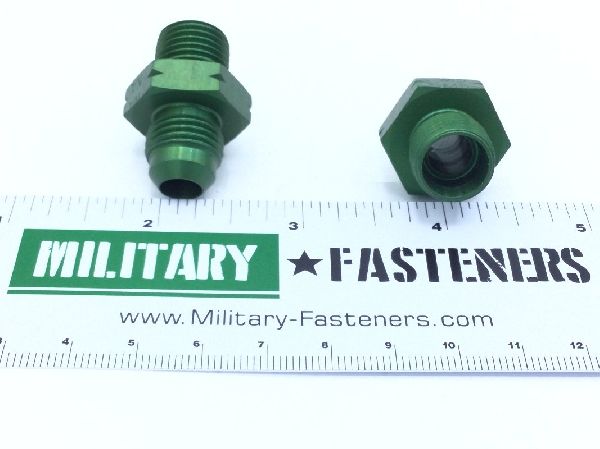

MS21900D6 Boss Nipple

Product Series: MS
ECCN: EAR99
Schedule: 7326.90.8695

Price per Unit $25.20

Units per Pack 2

Price per Pack $50.40

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Quantity will be increased in increments of 2

Total Unit Quantity:

Total Packs 1

Total Price $50.40

Add item to quote

Material

Aluminum alloy 2024

Surface Treatment

Class 1 military specification single treatment response type 2 mil-a-8625

Thread Class

3a all ends

Thread Size

0.562 inches all ends

Connection Style: Flared with gasket seal (boss) 1st end
Connection Type: Threaded external boss all ends
Material Specification: T62 or t851 federal specification single material response qq-a-225/6 temper t6
Maximum Operating Pressure: 3000 pounds per square inch single response
Maximum Operating Temp: 275.0 degrees fahrenheit single response
Media For Which Designed: Hydraulic fluid single response
Nominallength: 1.281 inches
Specification Data: 96906-ms21900 government standard
Style Designator: Flared and flareless with center wrenching facility
Thread Series Designator: Unjf (fine thread with external controlled root radius) all ends
