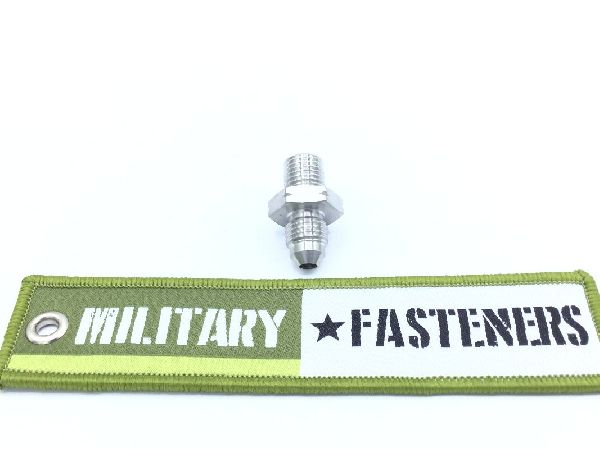

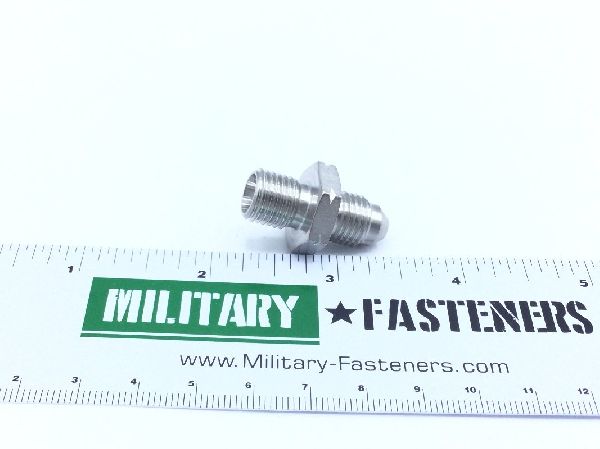

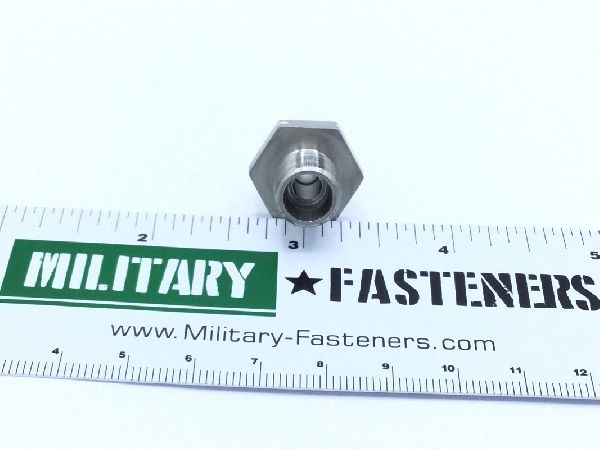

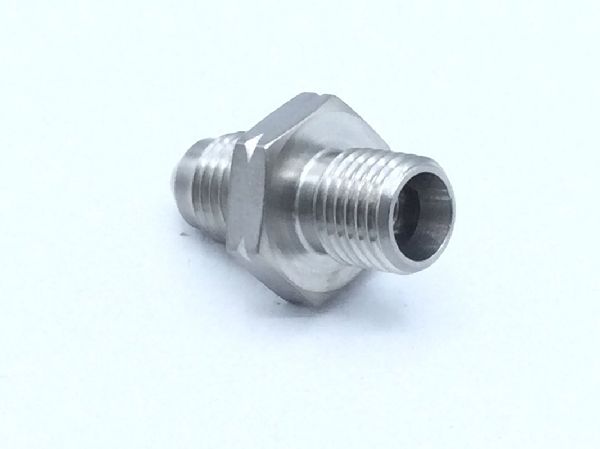

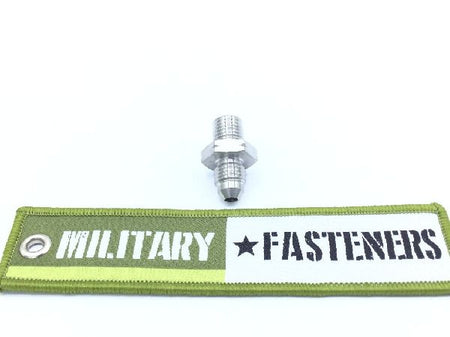

MS21900J4 Boss Nipple

Product Series: MS
ECCN: EAR99
Schedule: 7326.90.8695

Unit of Measure: EA

Add to Quote

We are currently out of stock of this item. Click the button below to add this item to the quote and receive up to date pricing and availability by email.

Add to Quote

Material

Steel comp 304

Surface Treatment

type 2 military specification single treatment response outside e300 mil-f-14072

Thread Class

3a all ends

Thread Size

0.438 inches all ends

Connection Style: External seat for gasket seal (boss) 2nd end
Connection Type: Threaded external boss all ends
Material Specification: Qq-s-763 federal specification single material response
Maximum Operating Pressure: 3000 pounds per square inch single response
Maximum Operating Temp: 135.0 degrees celsius single response
Nominallength: 1.187 inches
Specification Data: 96906-ms21900 government standard
Style Designator: Flared and flareless with center wrenching facility
Thread Series Designator: Unjf (fine thread with external controlled root radius) all ends
