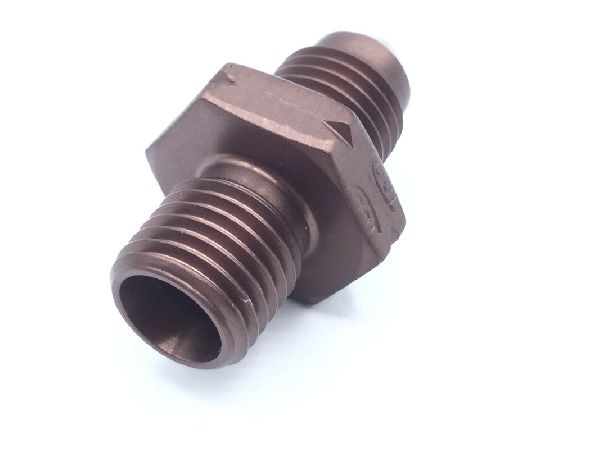

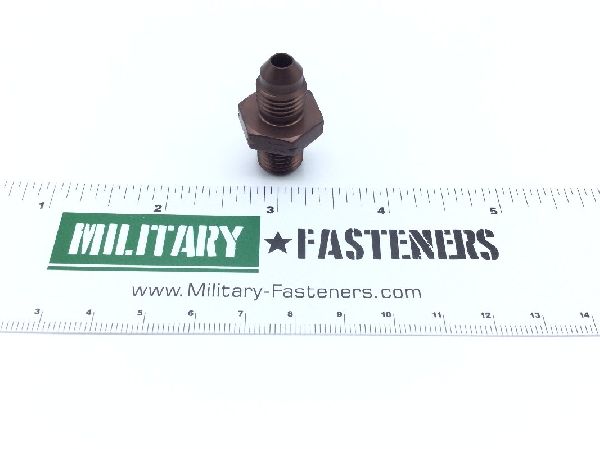

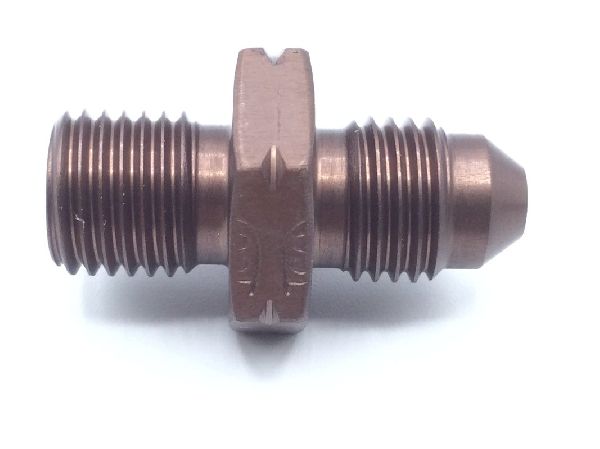

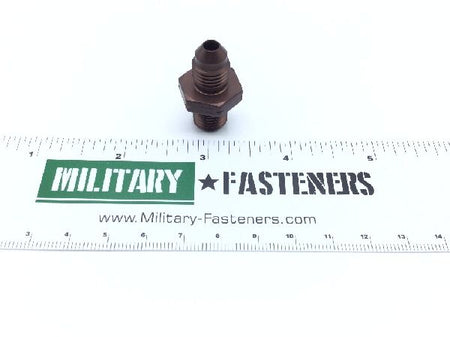

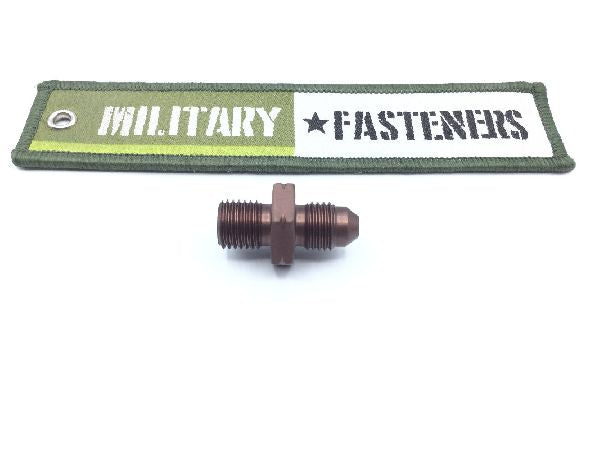

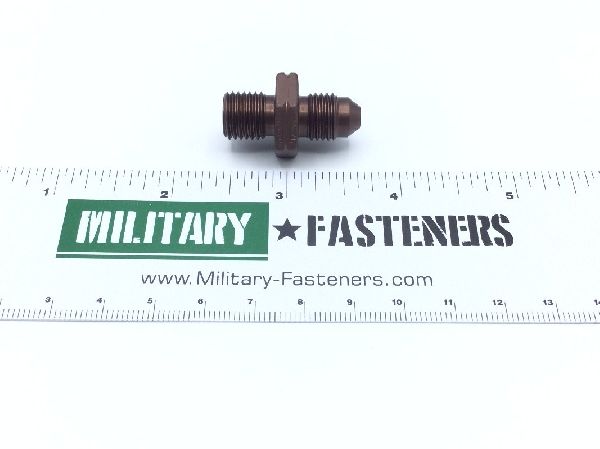

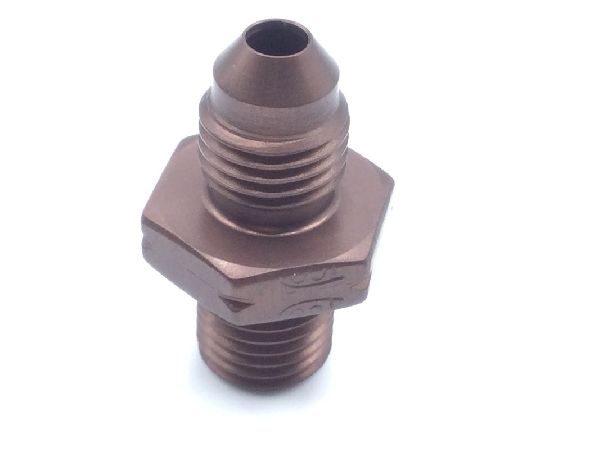

MS21900W4 Boss Nipple

Product Series: MS
ECCN: EAR99
Schedule: 7326.90.8695

Unit of Measure: EA

Add to Quote

We are currently out of stock of this item. Click the button below to add this item to the quote and receive up to date pricing and availability by email.

Add to Quote

Material

Aluminum alloy 7075

Surface Treatment

Cl 2 military specification single treatment response outside ty2 mil-a-8625

Thread Class

3a all ends

Thread Size

0.438 inches all ends

Connection Style: External seat for gasket seal (boss) 2nd end
Connection Type: Threaded external boss all ends
Material Specification: T73 federal specification single material response qq-a-225/9
Maximum Operating Pressure: 3000.0 pounds per square inch single response
Maximum Operating Temp: 135.0 degrees celsius single response
Media For Which Designed: Fluid single response
Nominallength: 1.188 inches
Special Features: Grumman a10 aircraft
Specification Data: 96906-ms21900 government standard
Style Designator: Flared and flareless w/ center wrenching facility
Thread Series Designator: Unjf (fine thread with external controlled root radius) all ends
