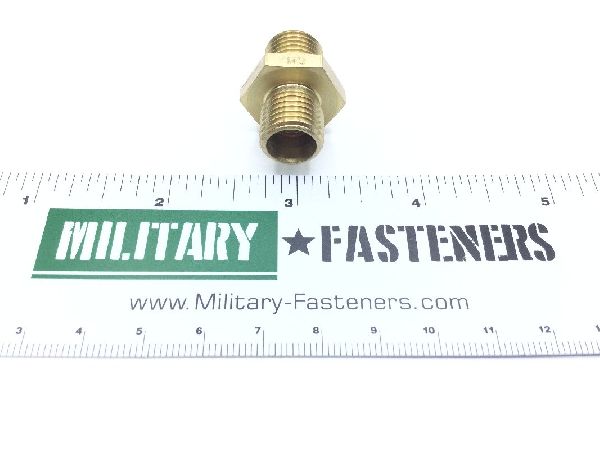

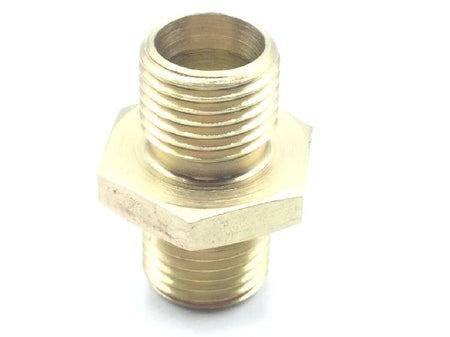

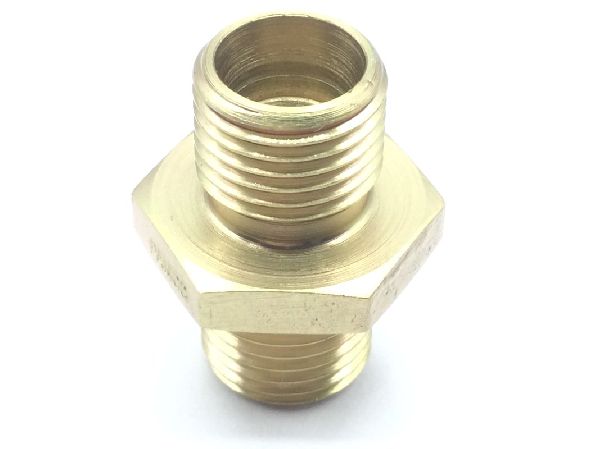

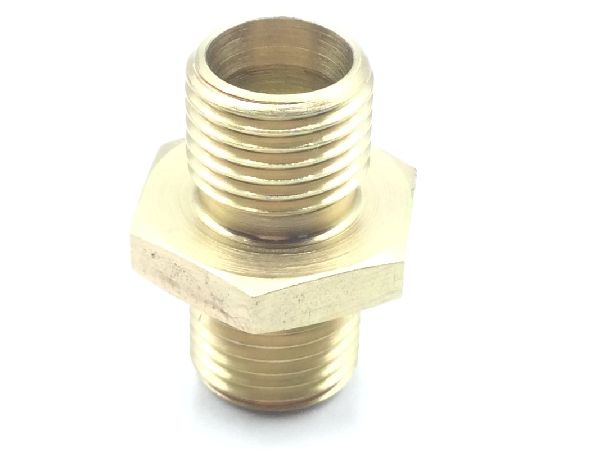

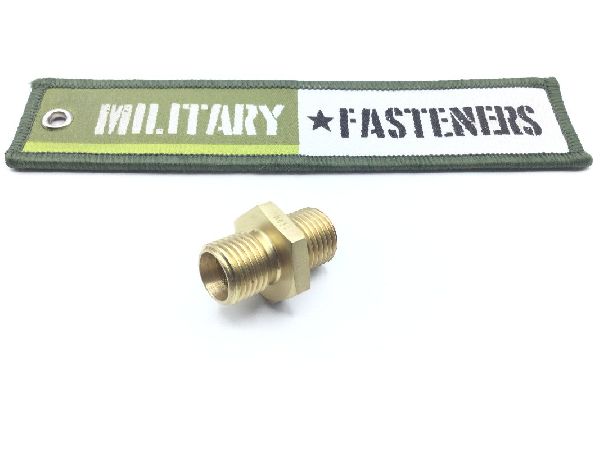

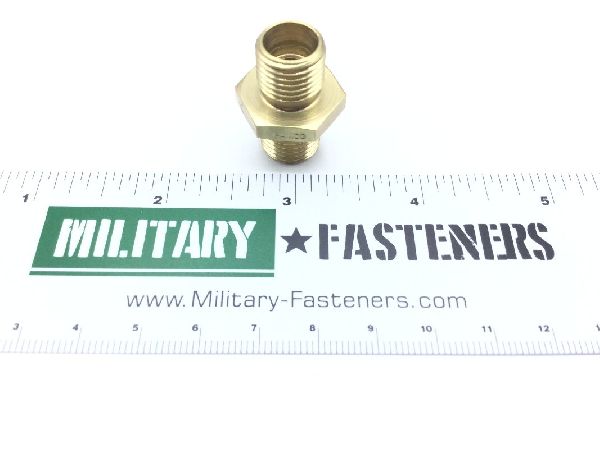

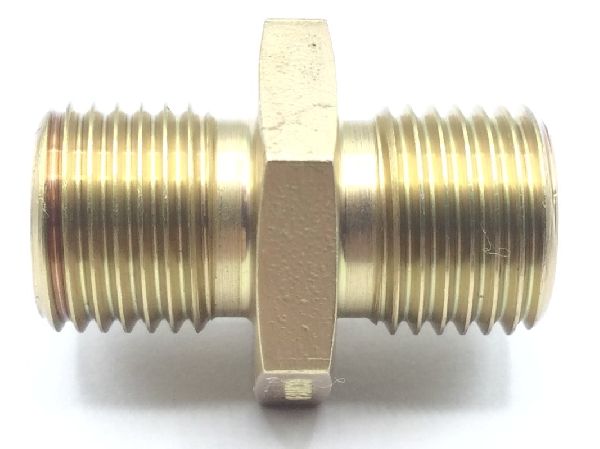

MS21902-5 Boss Nipple

Product Series: MS
ECCN: EAR99
Schedule: 7326.90.8695

Price per Unit $97.39

Units per Pack 1

Price per Pack $97.39

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Quantity will be increased in increments of 1

Total Unit Quantity:

Total Packs 1

Total Price $97.39

Add item to quote

Material

Steel comp 1137 or steel comp 1141

Surface Treatment

Class 2 federal specification single treatment response type 2 qq-p-416

Thread Class

3a all ends

Thread Size

0.500 inches all ends

Connection Style: External seat for gasket seal (boss) all ends
Connection Type: Threaded external boss all ends
End Application: tf33-100 (e3a/b/c) aircraft grumman aerospace corporation a10 aircraft; bbf engine
Material Specification: Qq-s-637 federal specification single material response or astm a576-67t assn standard single material response
Maximum Operating Pressure: 3000.0 pounds per square inch single response
Maximum Operating Temp: 275.0 degrees fahrenheit single response
Media For Which Designed: Hydraulic fluid single response
Nominallength: 1.062 inches
Specification Data: 96906-ms21902 government standard
Style Designator: Flareless w/ center wrenching facility
Thread Series Designator: Unjf (fine thread with external controlled root radius) all ends
