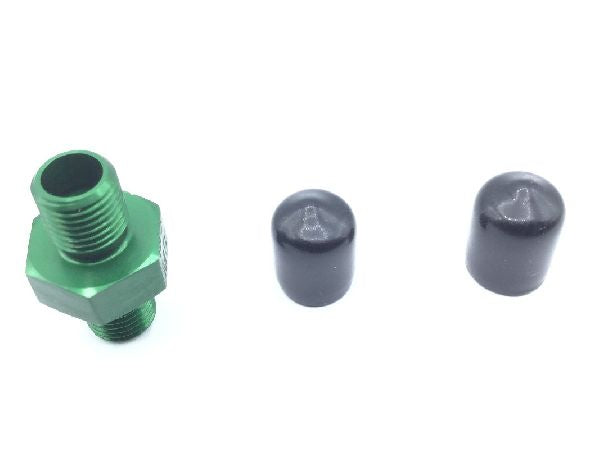

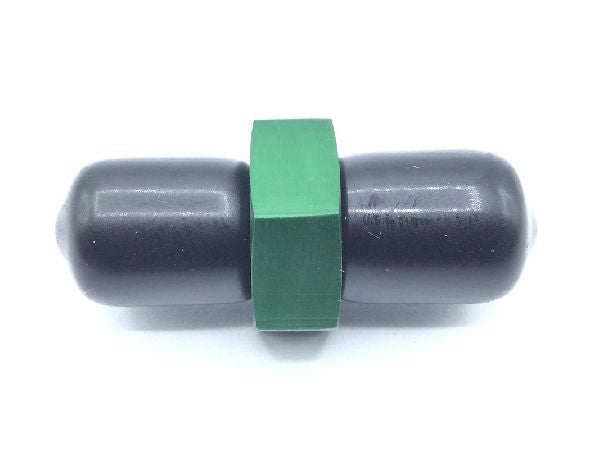

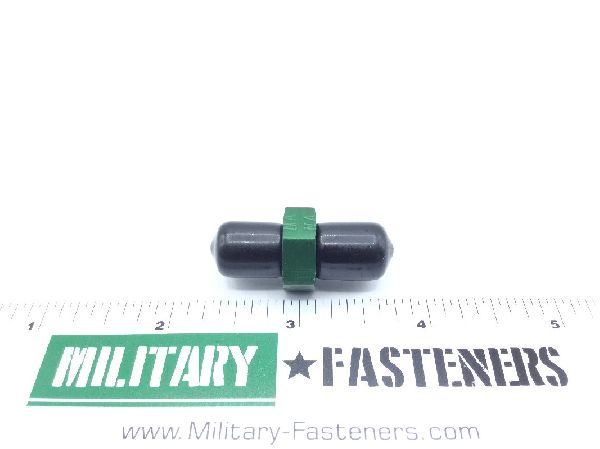

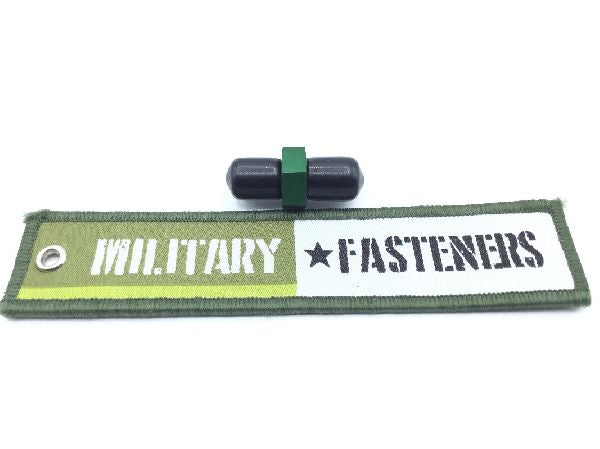

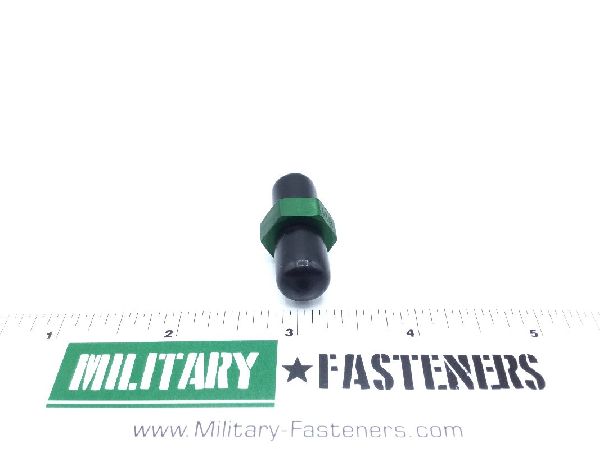

MS21902D3 Boss Nipple

Product Series: MS
ECCN: EAR99
Schedule: 4016.99.6000

Price per Unit $22.87

Units per Pack 2

Price per Pack $45.74

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Quantity will be increased in increments of 2

Total Unit Quantity:

Total Packs 1

Total Price $45.74

Add item to quote

Material

Aluminum alloy

Surface Treatment

Light tan military specification single treatment response cl 1 type 2 mil-a-8625

Thread Class

3a all ends

Thread Size

0.375 inches all ends

Connection Style: External seat for gasket seal (boss) all ends
Connection Type: Threaded external boss all ends
Leg Length: 0.391 inches 2nd end
Material Specification: T6 federal specification 2nd material response t62 or t851 federal specification 1st material response or qq-a-225/4 t6 qq-a-225/6
Maximum Operating Pressure: 3000.0 pounds per square inch single response
Maximum Operating Temp: -65 degrees Fahrenheit 1st response
Media For Which Designed: Hydraulic fluid 1st response
Nominallength: 1.094 inches
Specification Data: 96906-ms21902 government standard
Style Designator: Flareless with center wrenching facility
Thread Series Designator: Unjf (fine thread with external controlled root radius) all ends
