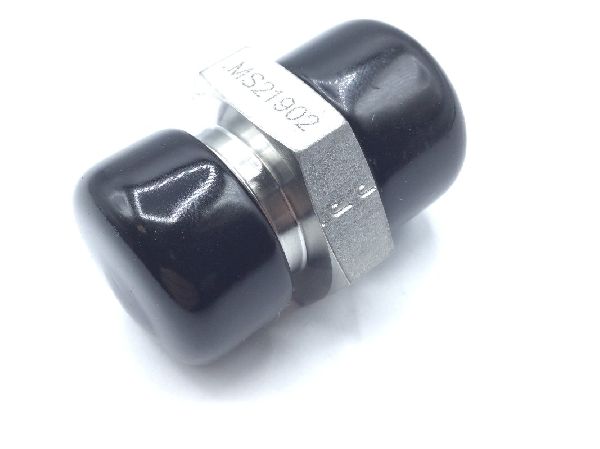

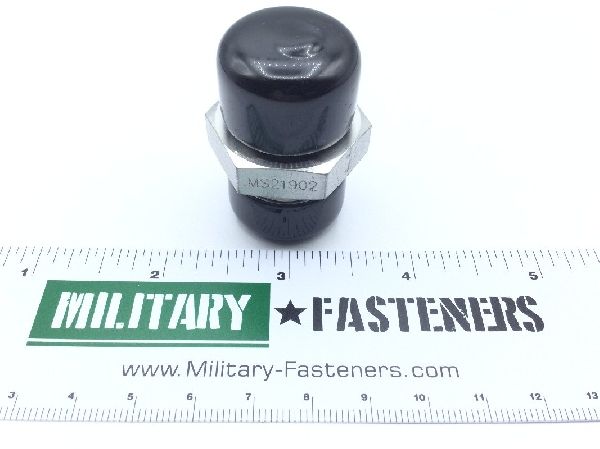

MS21902J10 Boss Nipple

Product Series: MS
ECCN: EAR99
Schedule: 7326.90.8695

Price per Unit $52.45

Units per Pack 1

Price per Pack $52.45

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Quantity will be increased in increments of 1

Total Unit Quantity:

Total Packs 1

Total Price $52.45

Add item to quote

Material

Steel comp 304

Surface Treatment

Mil-s-5002 military specification single treatment response

Thread Class

3a all ends

Thread Size

0.875 inches all ends

Connection Style: External seat for gasket seal (boss) all ends
Connection Type: Threaded external boss all ends
Material Specification: Qq-s-763 federal specification single material response
Maximum Operating Pressure: 3000 pounds per square inch single response
Maximum Operating Temp: 275 degrees fahrenheit single response
Media For Which Designed: Hydraulic fluid single response
Nominallength: 1.562 inches
Specification Data: 96906-ms21902 government standard
Style Designator: Flareless (tube)
Thread Series Designator: Unjf (fine thread with external controlled root radius) all ends
