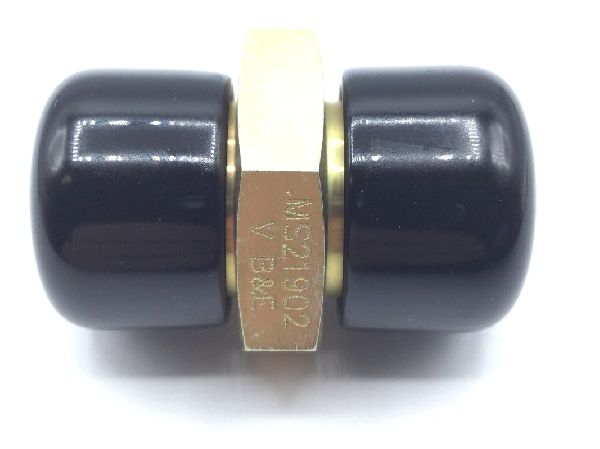

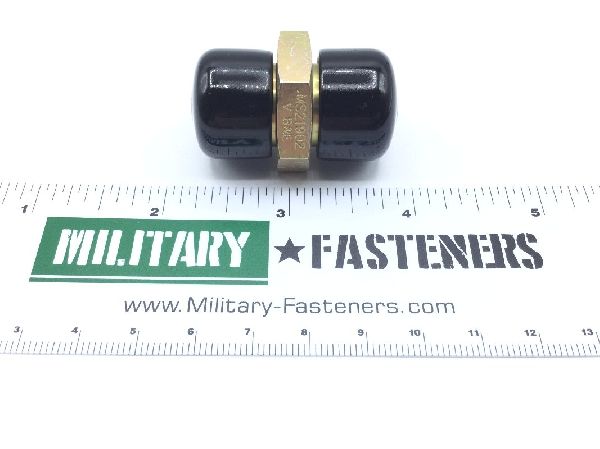

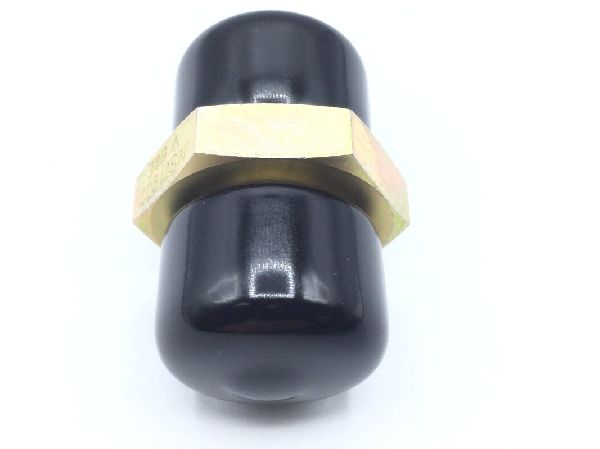

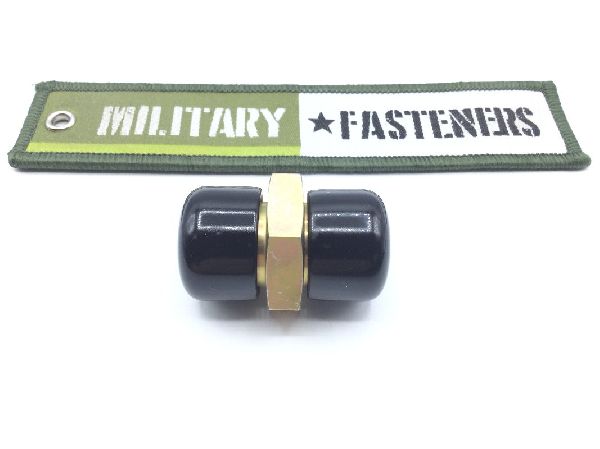

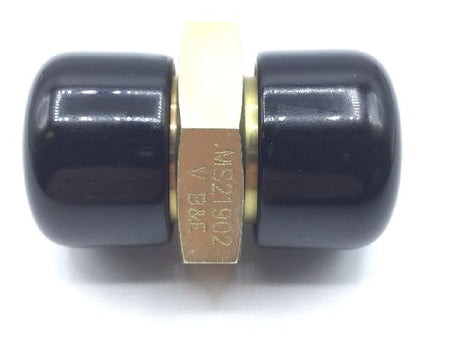

MS21902V8P Tube Nipple

Product Series: MS
ECCN: EAR99
Schedule: 7326.90.8695

Price per Unit $59.52

Units per Pack 1

Price per Pack $59.52

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Quantity will be increased in increments of 1

Total Unit Quantity:

Total Packs 1

Total Price $59.52

Add item to quote

Material

Stainless Steel

Thread Class

3a all ends

Thread Size

0.750 inches all ends

Connection Style: Flareless (tube) all ends
Connection Type: Threaded external tube all ends
Maximum Operating Pressure: 3000.0 pounds per square inch single response
Nominallength: 1.375 inches
Outside Diameter Tube Accommodated: 0.500 inches all ends
Part Name Assigned By Controlling Agency: flareless tube union
Seat Angle: 12.0 degrees all ends
Special Features: Material corrosion resistant steel (15-5ph) cadmium plated
Specification Data: 81343 - as21902 professional/industrial association standard
Style Designator: Flareless w/ center wrenching facility
Thread Series Designator: Unjf (fine thread with external controlled root radius) all ends
