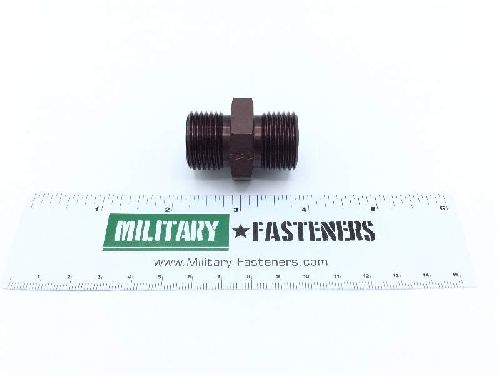

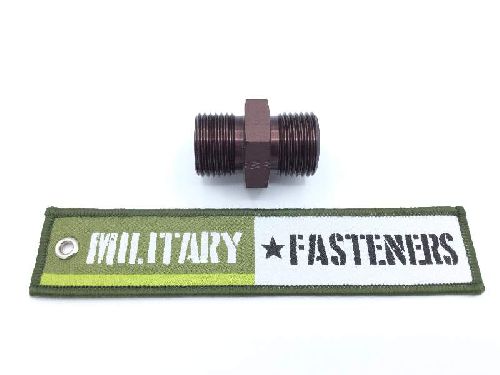

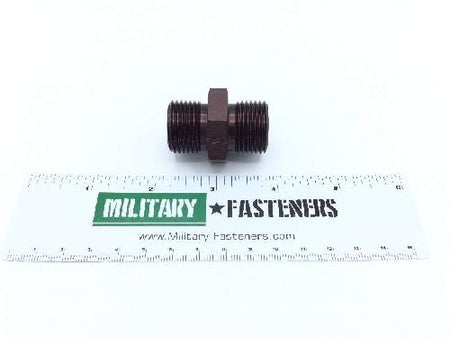

MS21902W10 Boss Nipple

Product Series: MS
ECCN: EAR99
Schedule: 4016.99.6000

Price per Unit $48.44

Units per Pack 1

Price per Pack $48.44

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Quantity will be increased in increments of 1

Total Unit Quantity:

Total Packs 1

Total Price $48.44

Add item to quote

Material

Aluminum alloy 7075

Surface Treatment

Cl 2 military specification single treatment response outside ty2 mil-a-8625

Thread Class

3a all ends

Thread Size

0.875 inches all ends

Connection Style: External seat for gasket seal (boss) all ends
Connection Type: Threaded external boss all ends
Material Specification: T73 federal specification single material response qq-a-225/9
Maximum Operating Pressure: 3000.0 pounds per square inch single response
Maximum Operating Temp: 135.0 degrees celsius single response
Media For Which Designed: Fluid single response
Nominallength: 1.562 inches
Specification Data: 96906-ms21902 government standard
Style Designator: Flareless w/ center wrenching facility
Thread Series Designator: Unjf (fine thread with external controlled root radius) all ends
