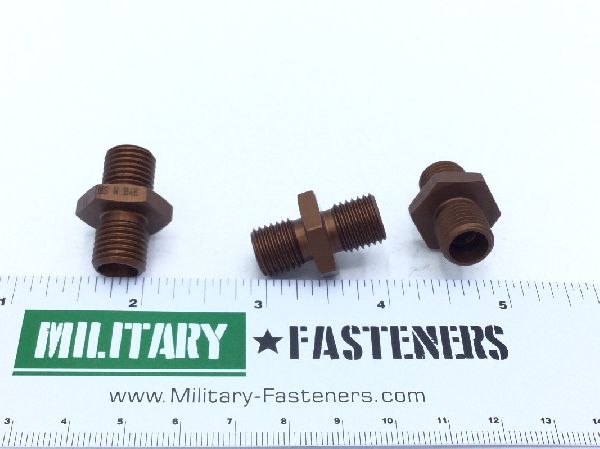

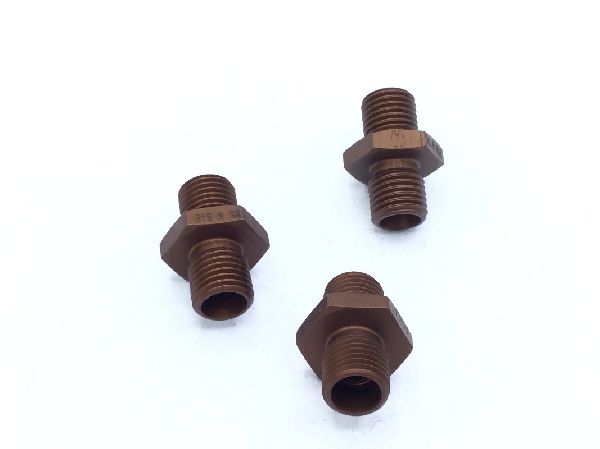

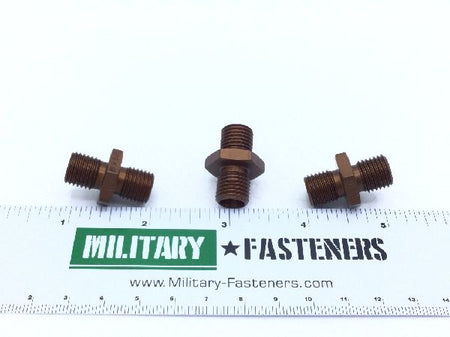

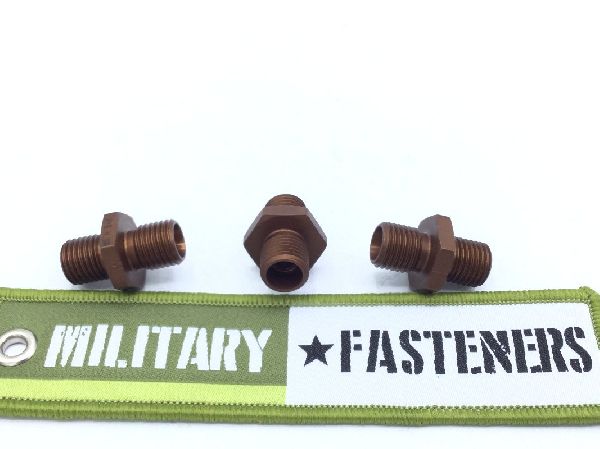

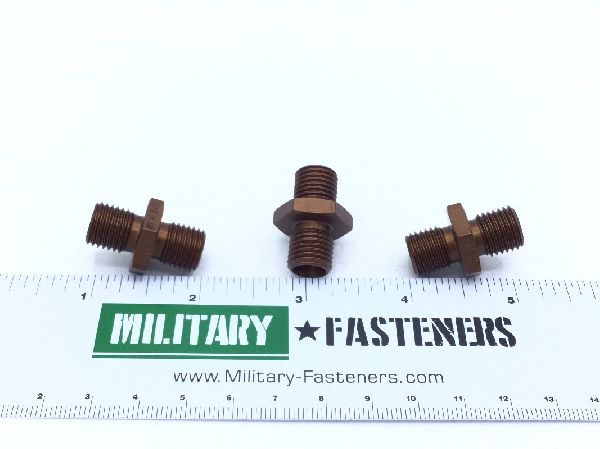

MS21902W4 Boss Nipple

Product Series: MS
ECCN: EAR99
Schedule: 4016.99.6000

Unit of Measure: EA

Add to Quote

We are currently out of stock of this item. Click the button below to add this item to the quote and receive up to date pricing and availability by email.

Add to Quote

Material

Aluminum alloy 7075

Surface Treatment

Cl 2 military specification single treatment response type 2 mil-a-8625

Thread Class

3a all ends

Thread Size

0.438 inches all ends

Connection Style: External seat for gasket seal (boss) all ends
Connection Type: Threaded external boss all ends
Material Specification: T73 federal specification single material response qq-a-225/9
Maximum Operating Pressure: 3000.0 pounds per square inch single response
Maximum Operating Temp: 274.0 degrees fahrenheit single response
Media For Which Designed: Hydraulic fluid single response
Nominallength: 1.062 inches
Specification Data: 96906-ms21902 government standard
Style Designator: Flareless w/ center wrenching facility
Thread Series Designator: Unjf (fine thread with external controlled root radius) all ends
