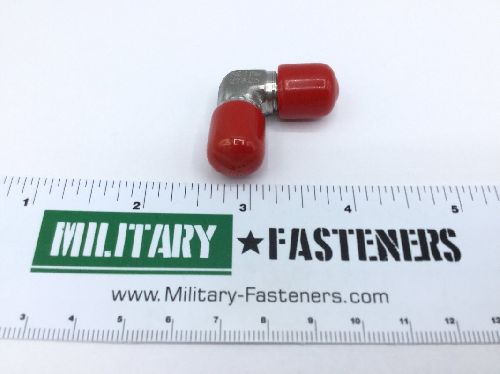

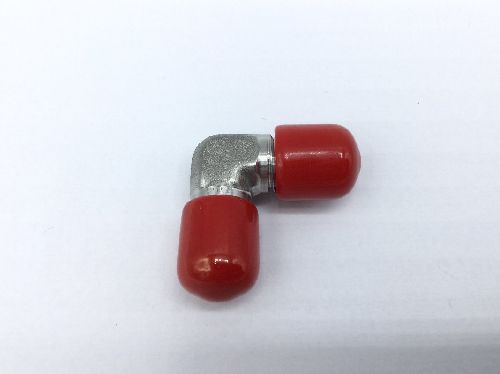

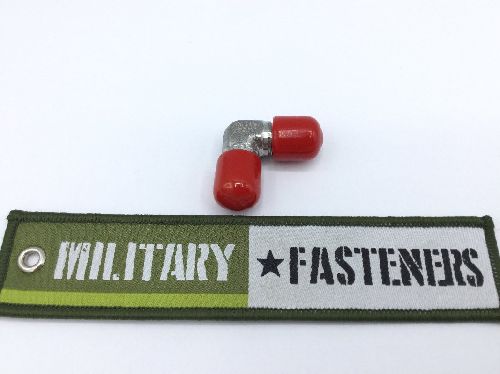

MS21904J4 Tube Elbow

Product Series: MS
ECCN: EAR99
Schedule: 7326.90.8695

Unit of Measure: EA

Add to Quote

We are currently out of stock of this item. Click the button below to add this item to the quote and receive up to date pricing and availability by email.

Add to Quote

Material

Steel comp 304

Thread Class

3a all ends

Thread Size

0.438 inches all ends

Connection Type: Threaded external tube all ends
Flow Angle: 90.0 degrees
Leg Length: 0.875 inches 1st end
Material Specification: 66 federal standard single material response
Outside Diameter Tube Accommodated: 0.250 inches all ends
Seat Angle: 12.0 degrees all ends
Specification Data: 96906-ms21904 government standard
Thread Series Designator: Unjf (fine thread with external controlled root radius) all ends
