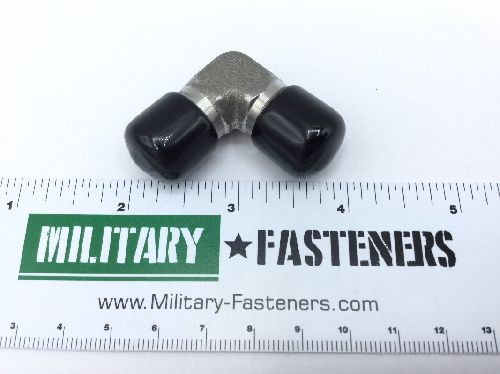

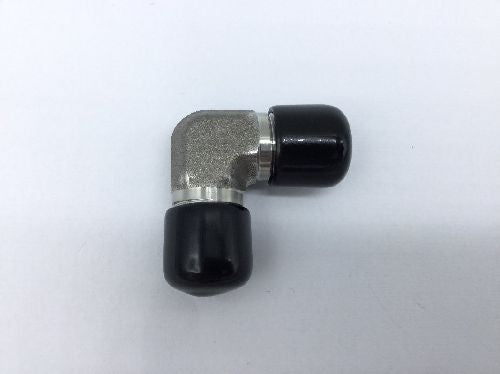

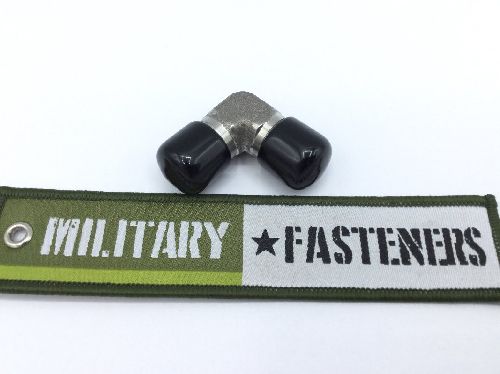

MS21904J6 Tube Elbow

Product Series: MS
ECCN: EAR99
Schedule: 7326.90.8695

Price per Unit $69.23

Units per Pack 1

Price per Pack $69.23

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Quantity will be increased in increments of 1

Total Unit Quantity:

Total Packs 1

Total Price $69.23

Add item to quote

Material

Steel comp 304

Surface Treatment

Ty2 military specification single treatment response outside e300 mil-f-14072

Thread Class

3a all ends

Thread Size

0.562 inches all ends

Connection Style: Flareless (tube) all ends
Connection Type: Threaded external tube all ends
Flow Angle: 90 degrees
Leg Length: 1.031 inches all ends and 1.078 inches all ends
Material Specification: 66 federal standard single material response
Maximum Operating Pressure: 3000.0 pounds per square inch single response
Maximum Operating Temp: 135 degrees fahrenheit
Media For Which Designed: Fluid single response
Outside Diameter Tube Accommodated: 0.375 inches all ends
Seat Angle: 12.0 degrees all ends
Specification Data: 96906-ms21904 government standard
Thread Series Designator: Unjf (fine thread with external controlled root radius) all ends
