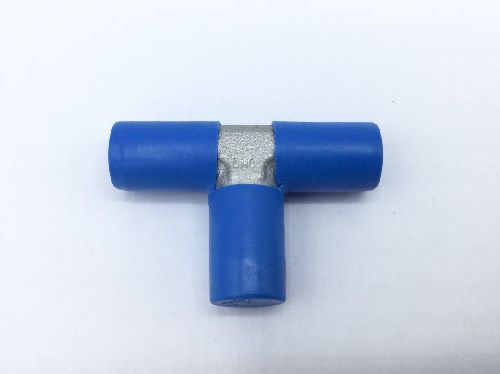

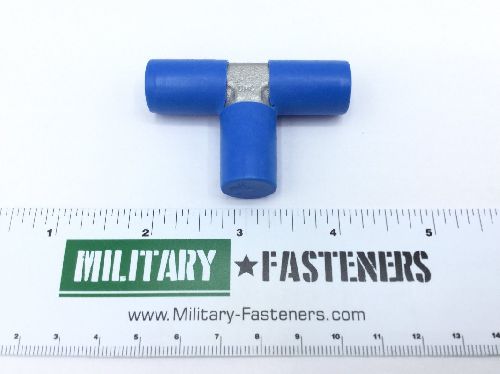

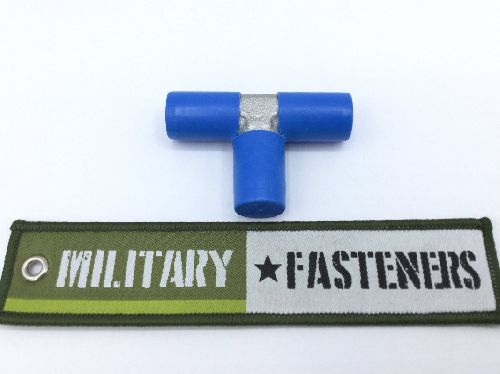

MS21905J6 Tube Tee

Product Series: MS
ECCN: EAR99
Schedule: 7326.90.8695

Unit of Measure: EA

Add to Quote

We are currently out of stock of this item. Click the button below to add this item to the quote and receive up to date pricing and availability by email.

Add to Quote

Material

Steel comp 304 or steel comp 316

Surface Treatment

Type 1 federal specification 2nd treatment response mil-s-5002 military specification 1st treatment response and qq-p-35

Thread Class

3a all ends

Thread Size

0.562 inches all ends

Connection Style: Flareless (tube) all ends
Connection Type: Threaded external tube all ends
Leg Length: 1.031 inches all ends
Material Specification: Qq-s-763 federal specification single material response
Maximum Operating Pressure: 3000.0 pounds per square inch single response
Maximum Operating Temp: -40.0 degrees fahrenheit 2nd response
Media For Which Designed: gaseous 2nd response oxygen
Outside Diameter Tube Accommodated: 0.375 inches all ends
Seat Angle: 12.0 degrees all ends
Specification Data: 96906-ms21905 government standard
Thread Series Designator: Unjf (fine thread with external controlled root radius) all ends
