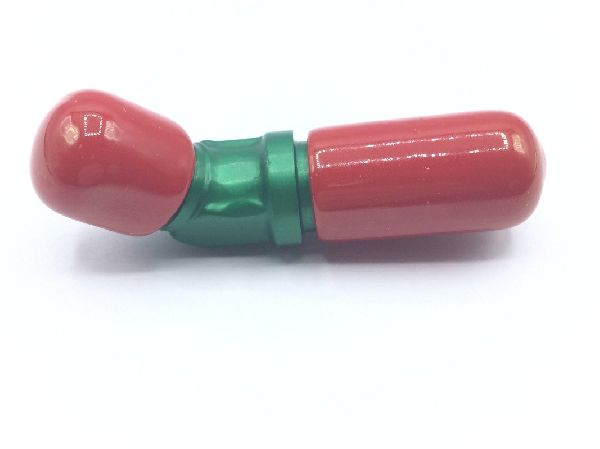

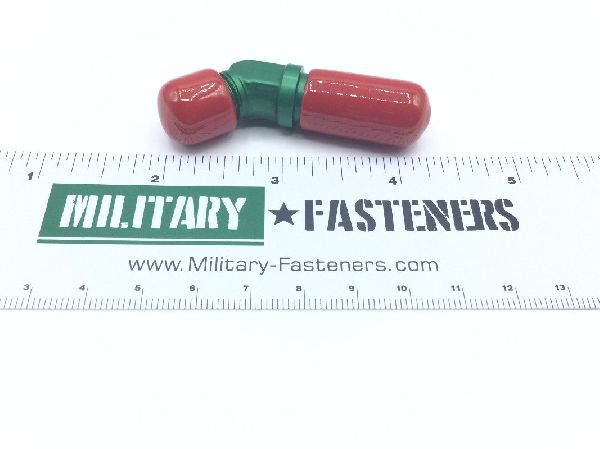

MS21907D4 Tube Elbow

Product Series: MS
ECCN: EAR99
Schedule: 7326.90.8695

Price per Unit $92.40

Units per Pack 1

Price per Pack $92.40

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Quantity will be increased in increments of 1

Total Unit Quantity:

Total Packs 1

Total Price $92.40

Add item to quote

Material

Aluminum alloy

Surface Treatment

Class 1 military specification single treatment response type 2 mil-a-8625

Thread Class

3a all ends

Thread Size

0.438 inches all ends

Connection Style: Flareless (tube) all ends
Connection Type: Threaded external tube all ends
End Application: Used on chinook helicopter ch-47
Flow Angle: 45.0 degrees
Leg Length: 0.688 inches 2nd end
Material Specification: T6 federal specification single material response t6 federal specification single material response or qq-a-225/6 qq-a-367
Maximum Operating Pressure: 3000.0 pounds per square inch single response
Maximum Operating Temp: 275.0 degrees fahrenheit 1st response
Media For Which Designed: gaseous 2nd response oxygen
Outside Diameter Tube Accommodated: 0.250 inches all ends
Seat Angle: 12.0 degrees all ends
Specification Data: 96906-ms21907 government standard
Thread Series Designator: Unjf (fine thread with external controlled root radius) 1st end bulkhead
