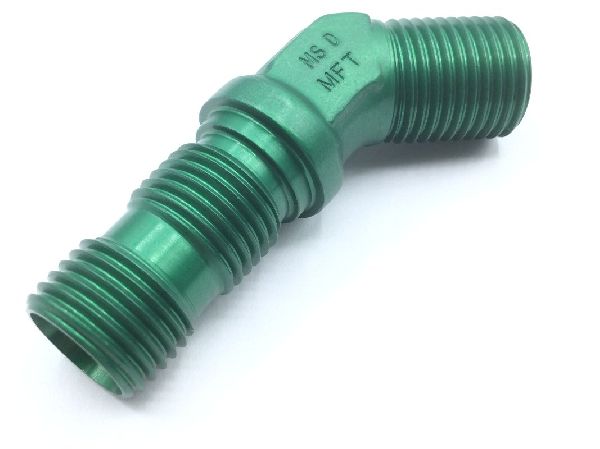

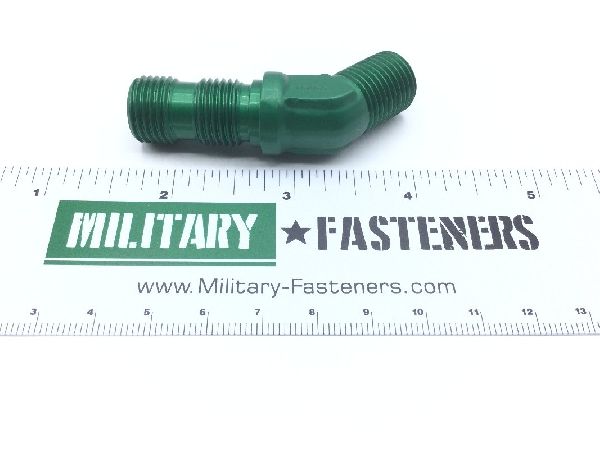

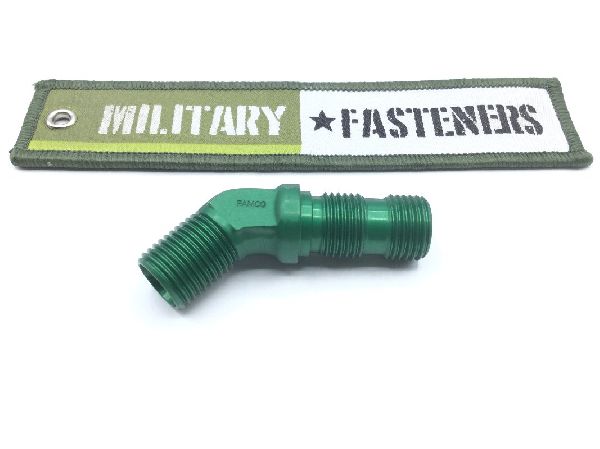

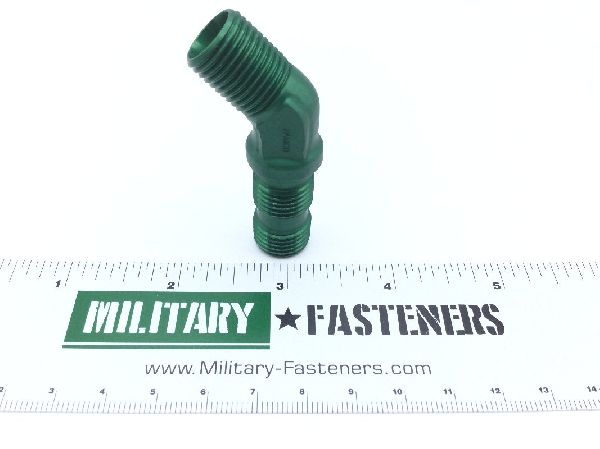

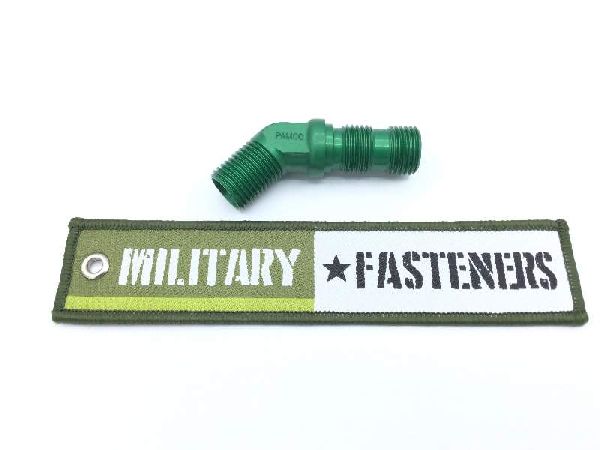

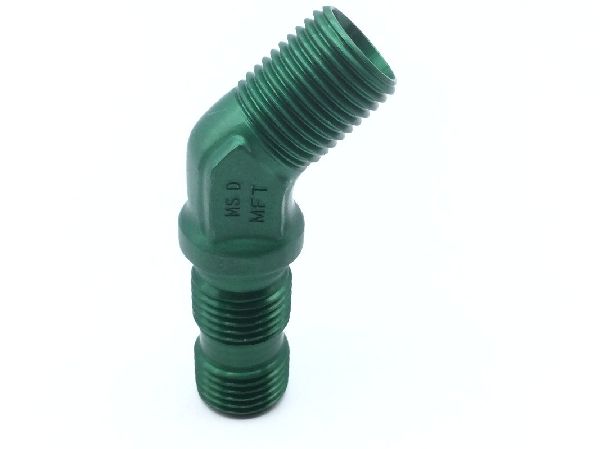

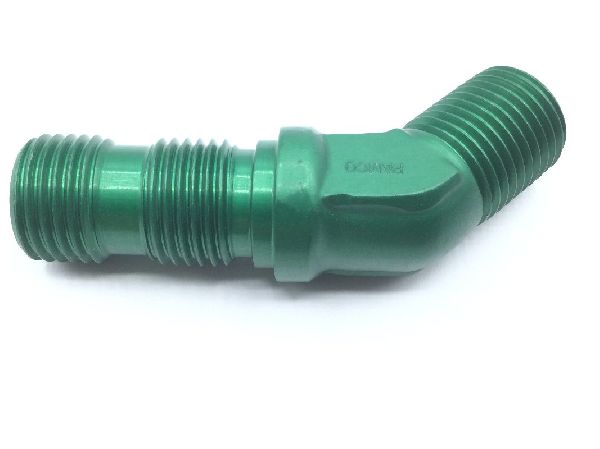

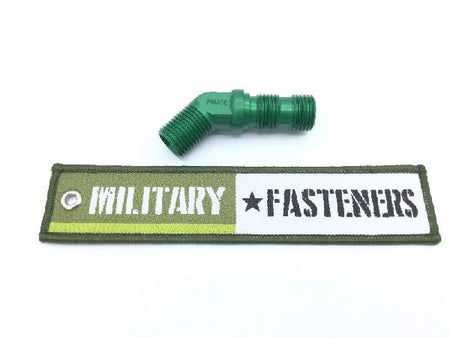

MS21907D6 Tube Elbow

Product Series: MS
ECCN: EAR99
Schedule: 7307.22.5000

Unit of Measure: EA

Add to Quote

We are currently out of stock of this item. Click the button below to add this item to the quote and receive up to date pricing and availability by email.

Add to Quote

Material

Aluminum alloy

Surface Treatment

Class 1 military specification single treatment response type 2 mil-a-8625

Thread Class

3a 1st end bulkhead

Thread Size

0.562 inches all ends

Connection Type: Unthreaded external hose 2nd end
Leg Length: 0.812 inches 2nd end
Material Specification: T6 federal specification single material response qq-a-367
Maximum Operating Pressure: 3000.0 pounds per square inch single response
Maximum Operating Temp: 275.0 degrees fahrenheit single response
Media For Which Designed: Hydraulic fluid single response
Outside Diameter Tube Accommodated: 0.375 inches 1st end
Seat Angle: 12.0 degrees all ends
Special Features: Model a10. aluminum alloy 7075 used on grumman aircraft
Specification Data: 81343-as21907 professional/industrial association standard
Thread Series Designator: Unjf (fine thread with external controlled root radius) all ends
