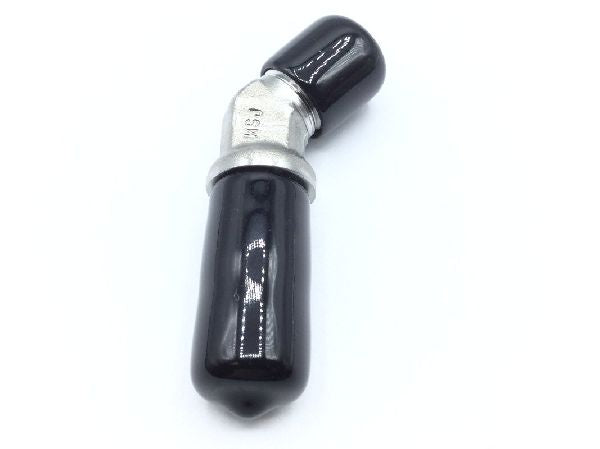

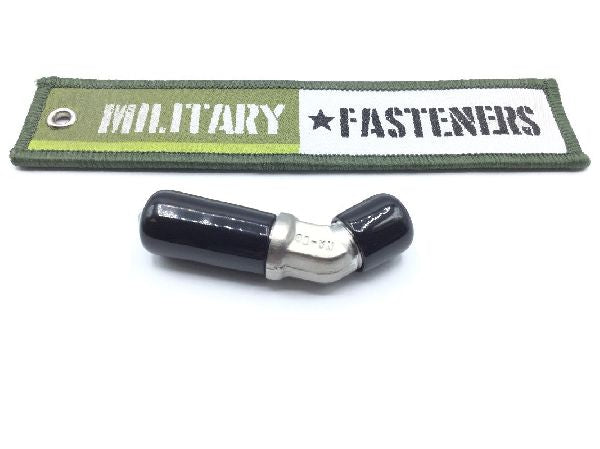

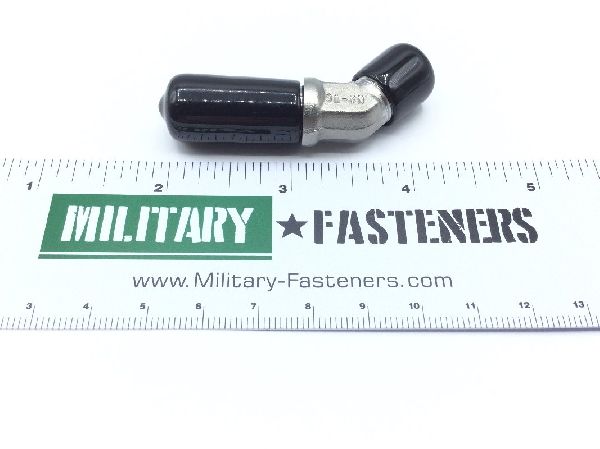

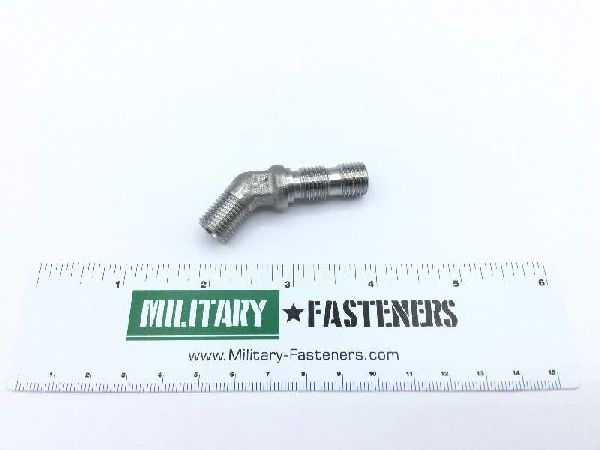

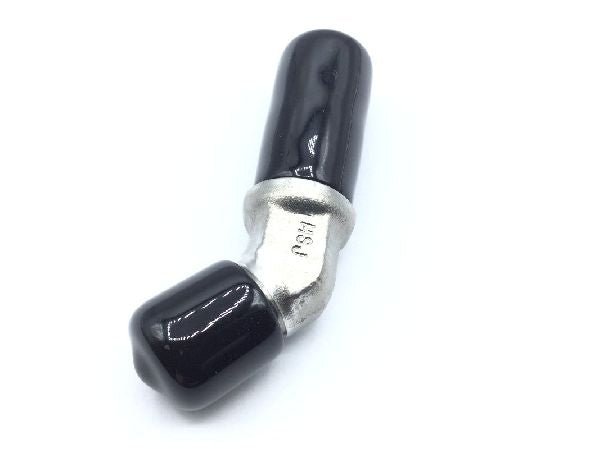

MS21907J4 Tube Elbow

Product Series: MS
ECCN: EAR99
Schedule: 7307.22.5000

Unit of Measure: EA

Add to Quote

We are currently out of stock of this item. Click the button below to add this item to the quote and receive up to date pricing and availability by email.

Add to Quote

Material

Steel comp 304

Surface Treatment

Mil-s-5002 military specification single treatment response inside

Thread Class

3a all ends

Thread Size

0.438 inches all ends

Connection Style: Flareless (tube) all ends
Connection Type: Threaded external tube all ends
Flow Angle: 45.0 degrees
Leg Length: 0.688 inches 2nd end
Material Specification: 66 federal standard single material response
Maximum Operating Pressure: 3000.0 pounds per square inch single response
Media For Which Designed: Fluid single response
Outside Diameter Tube Accommodated: 0.250 inches 1st end bulkhead
Seat Angle: 12.0 degrees all ends
Specification Data: 81348-as21907j4 government specification
Thread Series Designator: Unjf (fine thread with external controlled root radius) all ends
