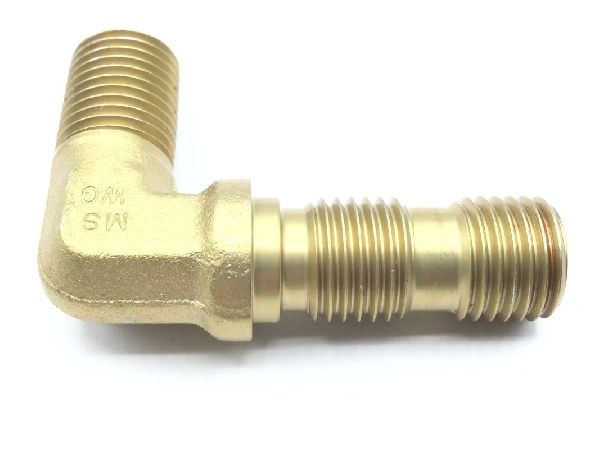

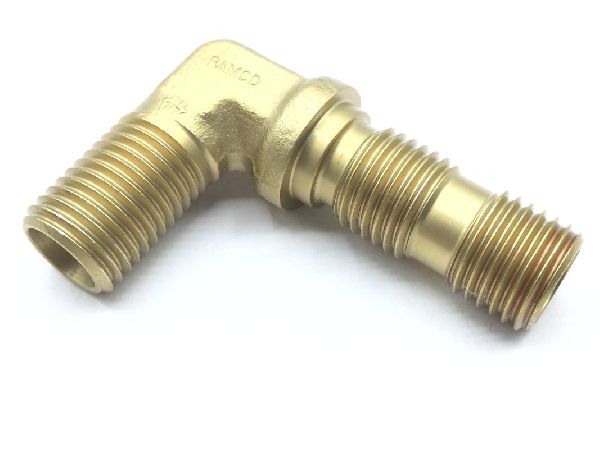

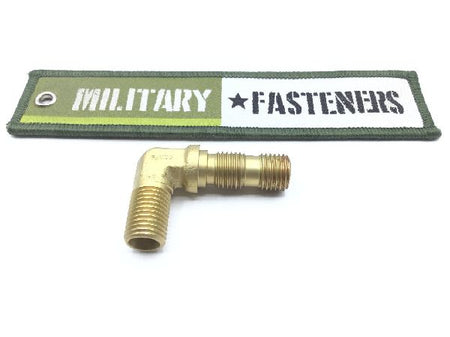

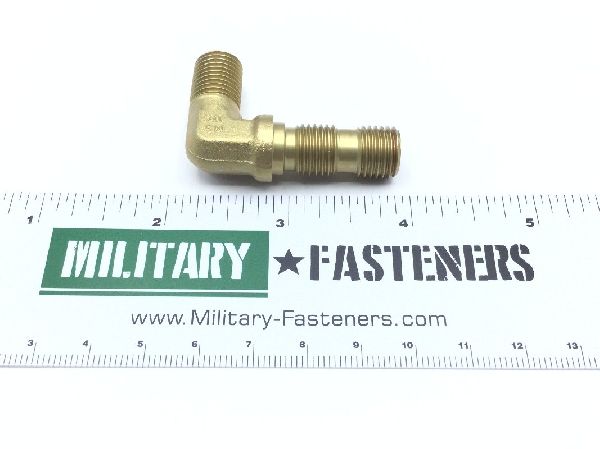

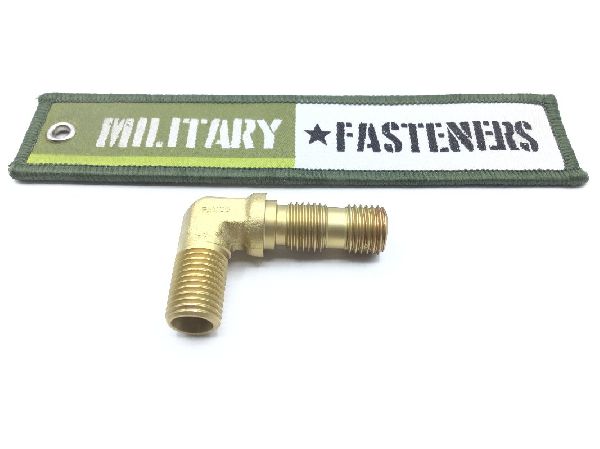

MS21908-4 Tube Elbow

Product Series: MS
ECCN: EAR99
Schedule: 7326.90.8695

Price per Unit $48.44

Units per Pack 1

Price per Pack $48.44

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Quantity will be increased in increments of 1

Total Unit Quantity:

Total Packs 1

Total Price $48.44

Add item to quote

Material

Steel

Surface Treatment

Class 2 federal specification single treatment response type 2 qq-p-416

Thread Class

3a all ends

Thread Size

0.438 inches all ends

Connection Style: Flareless (tube) all ends
Connection Type: Threaded external tube all ends
End Application: hornet f/a-18 grumman a10 aircraft; 43n aircraft
Flow Angle: 90.0 degrees
Leg Length: 0.938 inches 2nd end
Maximum Operating Pressure: 3000.0 pounds per square inch single response
Maximum Operating Temp: 275.0 degrees fahrenheit single response
Media For Which Designed: Hydraulic fluid single response
Outside Diameter Tube Accommodated: 0.250 inches all ends
Seat Angle: 12.0 degrees all ends
Specification Data: 96906-ms21908 government standard
Thread Series Designator: Unjf (fine thread with external controlled root radius) all ends
