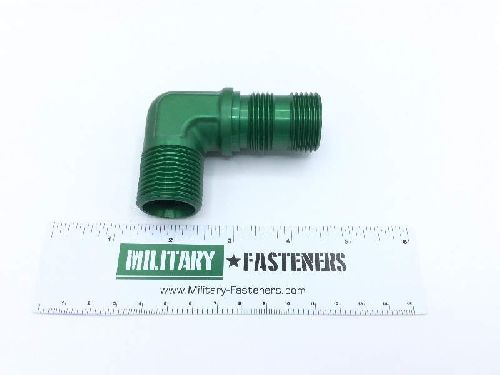

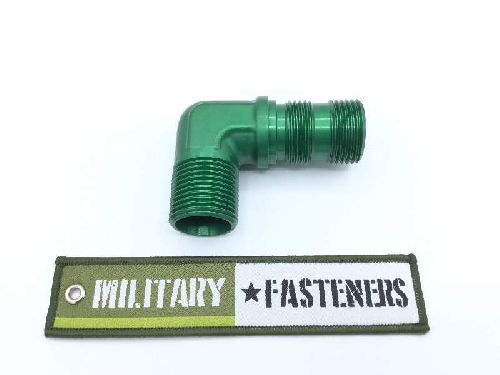

MS21908D12 Tube Elbow

Product Series: MS
ECCN: EAR99
Schedule: 7307.22.5000

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Add to Quote

We are currently out of stock of this item. Click the button below to add this item to the quote and receive up to date pricing and availability by email.

Add to Quote

Material

Aluminum alloy 2014

Surface Treatment

Class 1 military specification single treatment response type 2 mil-a8625

Thread Class

3a all ends

Thread Size

1.062 inches 1st end bulkhead

Connection Style: Flareless (tube) all ends
Connection Type: Threaded external tube all ends
End Application: Used on chinook helicopter ch-47
Flow Angle: 90 degrees
Leg Length: 1.625 inches 2nd end
Material Specification: T6 federal specification single material response qq-a-367
Maximum Operating Pressure: 3000.0 pounds per square inch single response
Maximum Operating Temp: 275 degrees fahrenheit single response
Media For Which Designed: gaseous 2nd response oxygen
Outside Diameter Tube Accommodated: 0.750 inches all ends
Seat Angle: 12.0 degrees all ends
Specification Data: 96906-ms21908 government standard
Thread Qty Per Inch (tpi): 12 1st end bulkhead
Thread Series Designator: Unj 1st end bulkhead
