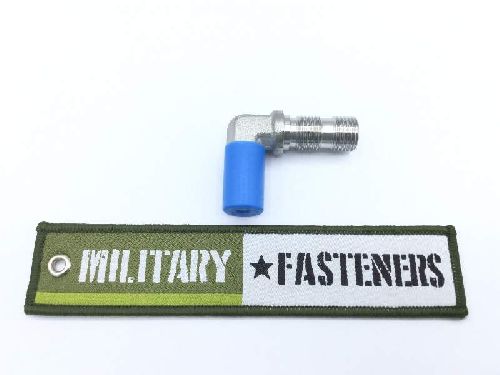

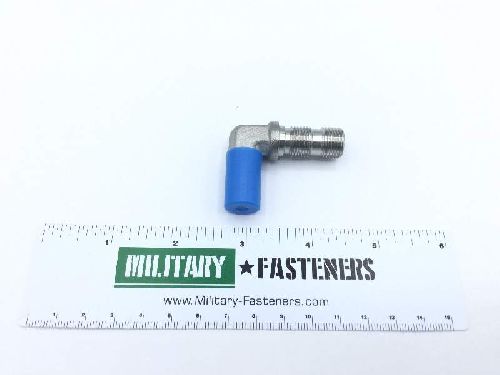

MS21908J5 Tube Elbow

Product Series: MS
ECCN: EAR99
Schedule: 7326.90.8695

Unit of Measure: EA

Add to Quote

We are currently out of stock of this item. Click the button below to add this item to the quote and receive up to date pricing and availability by email.

Add to Quote

Material

Steel comp 304

Thread Class

3a 2nd end bulkhead

Thread Size

0.500 inches 1st end

Connection Style: Flareless (tube) 2nd end bulkhead
Connection Type: Threaded external tube 1st end
Flow Angle: 90.0 degrees
Leg Length: 1.031 inches 2nd end bulkhead
Outside Diameter Tube Accommodated: 0.312 inches 2nd end bulkhead
Seat Angle: 12.0 degrees 2nd end bulkhead
Thread Qty Per Inch (tpi): 20 2nd end bulkhead
Thread Series Designator: Unjf (fine thread with external controlled root radius) 2nd end bulkhead
