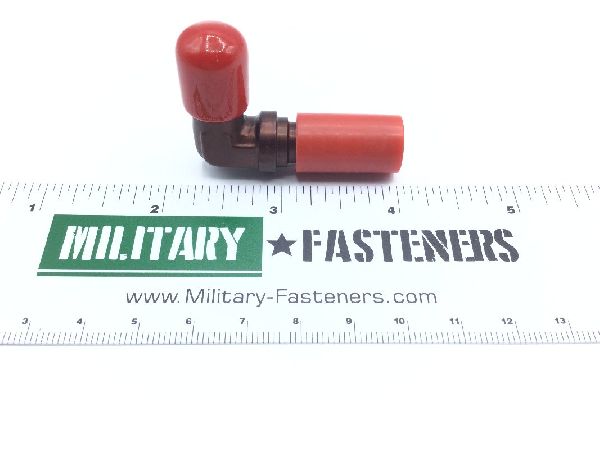

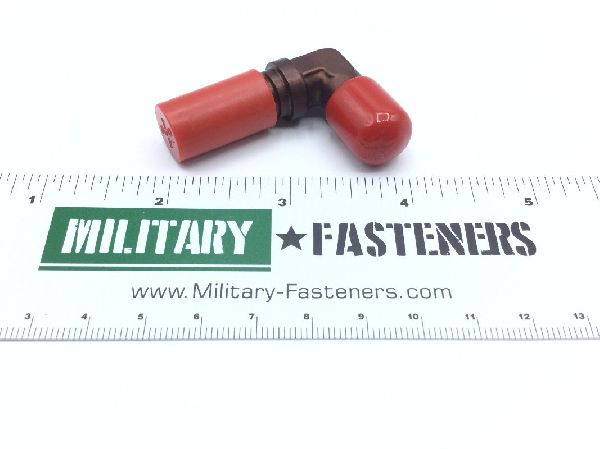

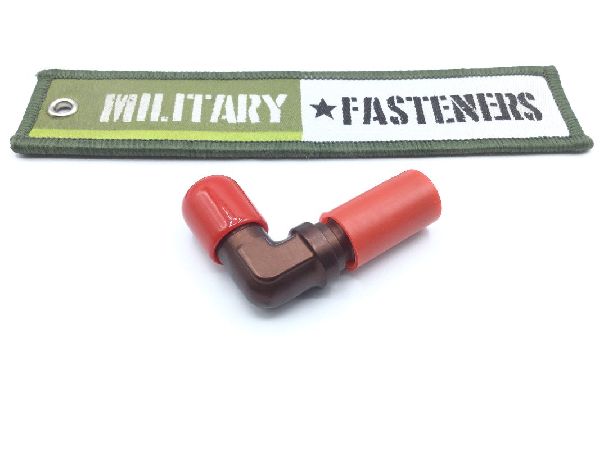

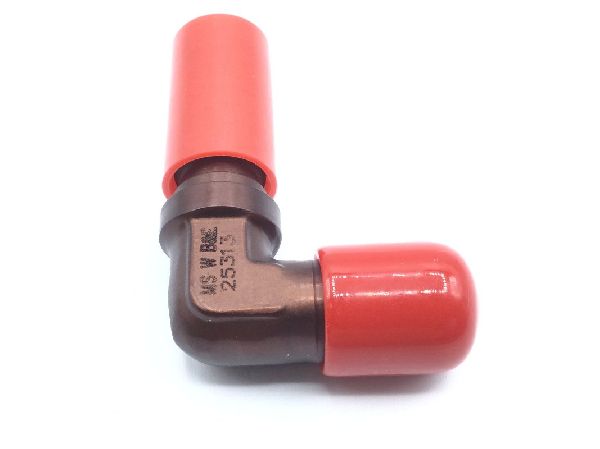

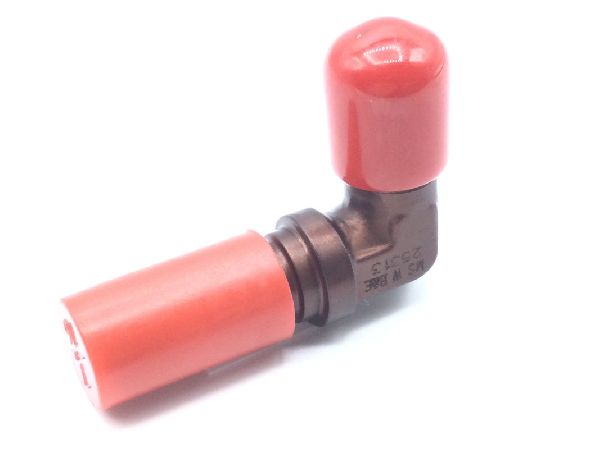

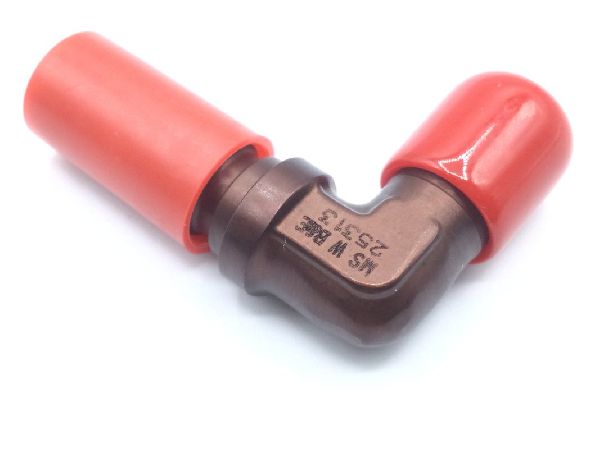

MS21908W4 Tube Elbow

Product Series: MS
ECCN: EAR99
Schedule: 7326.90.8695

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Add to Quote

We are currently out of stock of this item. Click the button below to add this item to the quote and receive up to date pricing and availability by email.

Add to Quote

Material

Aluminum alloy

Surface Treatment

Class 2 military specification single treatment response type 2 mil-a-8625

Thread Class

3a all ends

Thread Size

0.438 inches all ends

Connection Type: Threaded external tube all ends
Flow Angle: 90.0 degrees
Leg Length: 0.938 inches 2nd end
Material Specification: T73 federal specification single material response qq-a-367
Maximum Operating Pressure: 3000.0 pounds per square inch single response
Maximum Operating Temp: 275.0 degrees fahrenheit single response
Media For Which Designed: Hydraulic fluid single response
Outside Diameter Tube Accommodated: 0.250 inches all ends
Reduced Passage Inside Diameter: 0.188 inches all ends
Seat Angle: 12.0 degrees all ends
Specification Data: 96906-ms21908 government standard
Thread Series Designator: Unjf (fine thread with external controlled root radius) all ends
