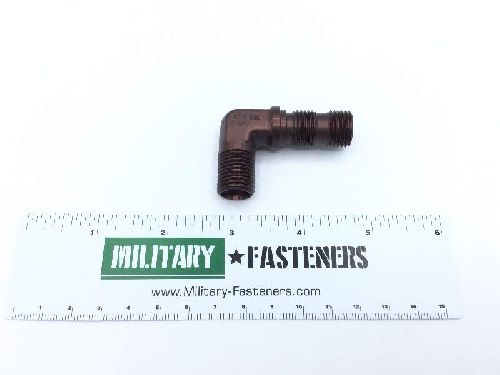

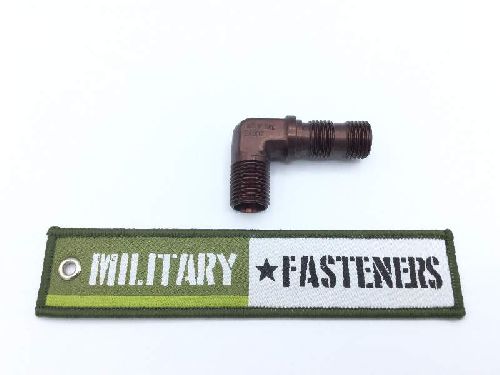

MS21908W6 Tube Elbow

Product Series: MS
ECCN: EAR99
Schedule: 7307.22.5000

Price per Unit $100.54

Units per Pack 1

Price per Pack $100.54

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Quantity will be increased in increments of 1

Total Unit Quantity:

Total Packs 1

Total Price $100.54

Add item to quote

Material

Aluminum alloy 7075

Surface Treatment

Cl 2 military specification single treatment response outside ty2 mil-a-8625

Thread Class

3a all ends

Thread Size

0.562 inches all ends

Connection Type: Threaded external tube all ends
End Application: Viking s-3a 16n aircraft
Flow Angle: 90.0 degrees
Leg Length: 1.688 inches 1st end
Material Specification: T73 federal specification single material response qq-a-367
Maximum Operating Pressure: 3000.0 pounds per square inch single response
Maximum Operating Temp: 135.0 degrees celsius 2nd response
Media For Which Designed: Aeronautical fluid single response
Outside Diameter Tube Accommodated: 0.375 inches all ends
Seat Angle: 12.0 degrees all ends
Thread Series Designator: Unjf (fine thread with external controlled root radius) 1st end bulkhead
