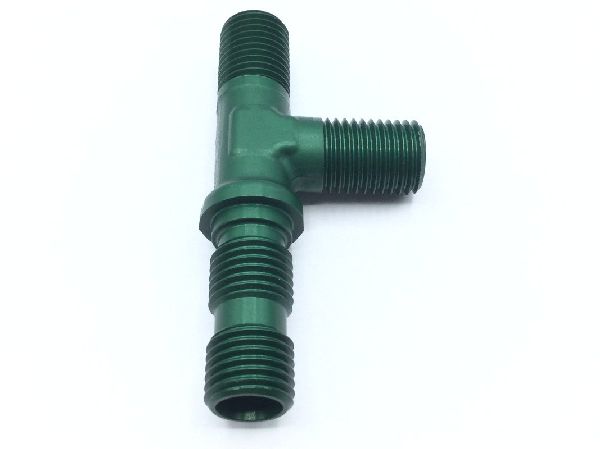

MS21912D4 Tube Tee

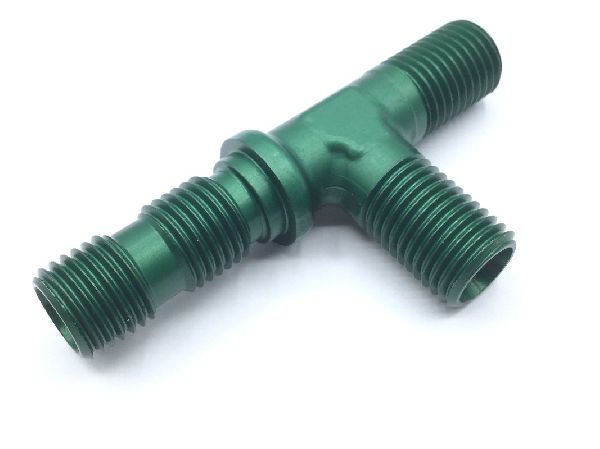

MS21912D4 Tube Tee (2)

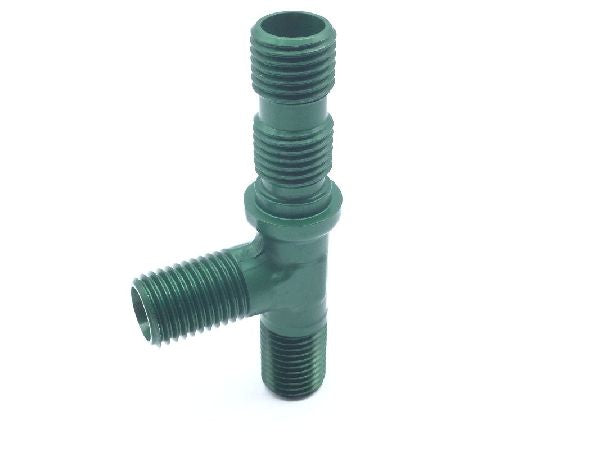

MS21912D4 Tube Tee (3)

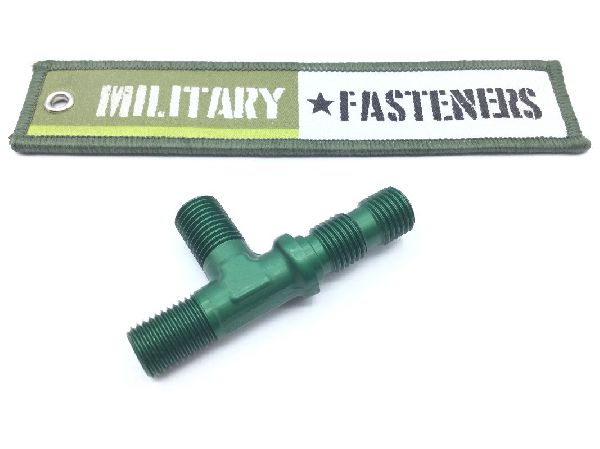

MS21912D4 Tube Tee (4)

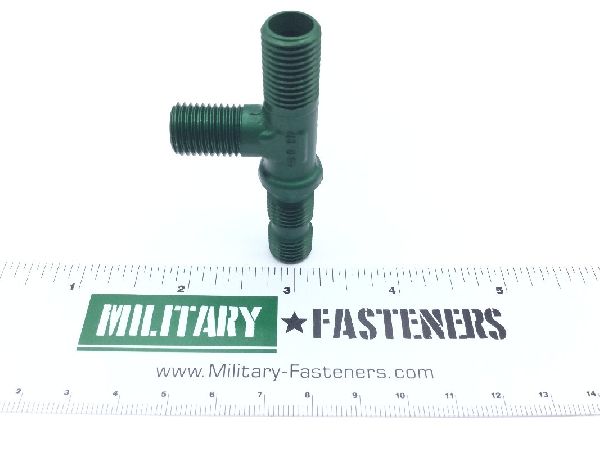

MS21912D4 Tube Tee (5)

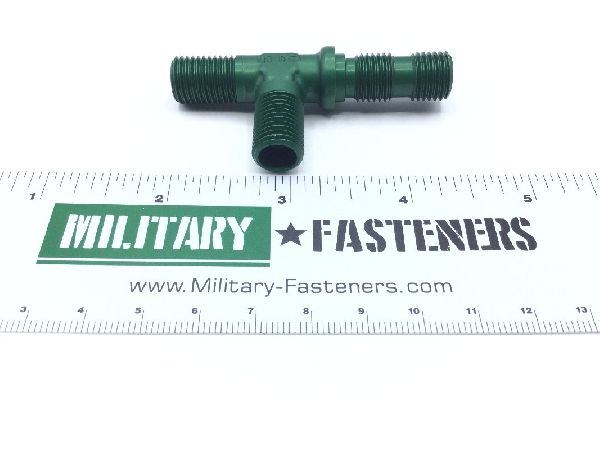

MS21912D4 Tube Tee (6)
MS21912D4 Tube Tee
MS21912D4 Tube Tee (2)
MS21912D4 Tube Tee (3)
MS21912D4 Tube Tee (4)
MS21912D4 Tube Tee (5)
MS21912D4 Tube Tee (6)

Disclaimer: Actual product colors may vary slightly from the images shown due to different monitor settings and lighting conditions during photo shoots.

MS21912D4 Tube Tee

Product Series
MS
ECCN
EAR99
Schedule
7326.90.8695
Manufacturer certifications are shipped with your order FREE of charge
Unit of Measure: EA

Add to Quote

We are currently out of stock of this item. Click the button below to add this item to the quote and receive up to date pricing and availability by email.

Add to Quote
Material
Aluminum alloy 2014
Thread Class
3a 1st end bulkhead
Thread Size
0.438 inches all ends
Connection Style
Flareless (tube) all ends
Connection Type
Threaded external tube all ends
Leg Length
1.50 inches 1st end
Outside Diameter Tube Accommodated
0.250 inches all ends
Seat Angle
12 degrees all ends
Specification Data
96906-ms21912 government standard
Thread Series Designator
Unjf (fine thread with external controlled root radius) 1st end bulkhead
