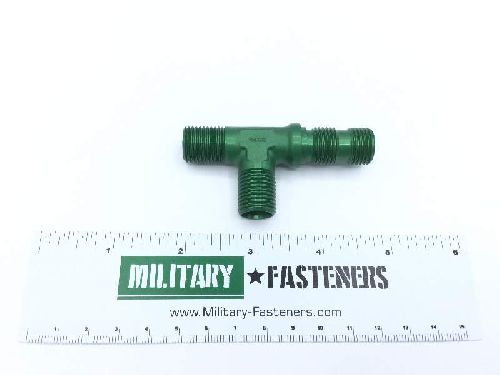

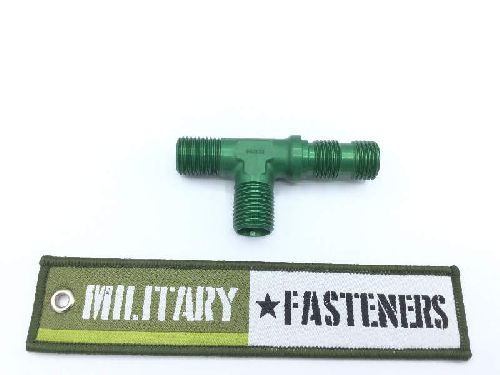

MS21912D6 Tube Tee

Product Series: MS
ECCN: EAR99
Schedule: 7307.22.5000

Unit of Measure: EA

Add to Quote

We are currently out of stock of this item. Click the button below to add this item to the quote and receive up to date pricing and availability by email.

Add to Quote

Material

Aluminum alloy 7075

Surface Treatment

Class 2 military specification single treatment response type 2 mil-a-8625

Thread Class

3a all ends

Thread Size

0.562 inches all ends

Connection Style: Flareless (tube) all ends
Connection Type: Threaded external tube all ends
End Application: Viking s-3a 16n aircraft
Leg Length: 1.688 inches 1st end
Material Specification: T73 federal specification single material response qq-a-367
Maximum Operating Pressure: 3000.0 pounds per square inch single response
Maximum Operating Temp: 275.0 degrees fahrenheit single response
Media For Which Designed: Hydraulic fluid single response
Outside Diameter Tube Accommodated: 0.375 inches all ends
Seat Angle: 12.0 degrees all ends
Specification Data: 96906-ms21912 government standard
Thread Series Designator: Unjf (fine thread with external controlled root radius) all ends
