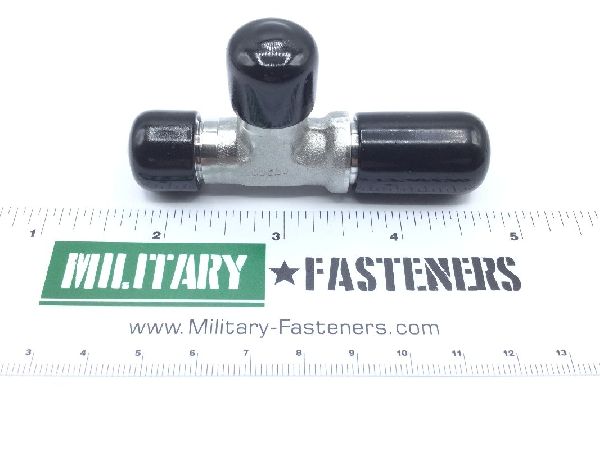

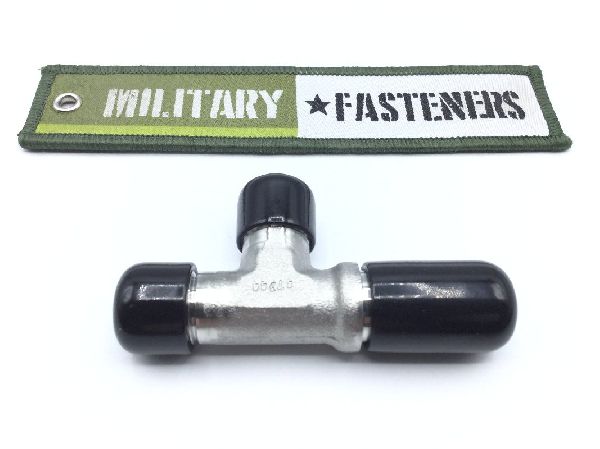

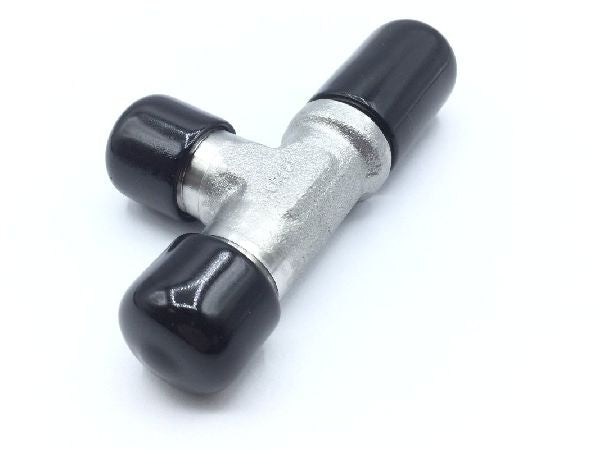

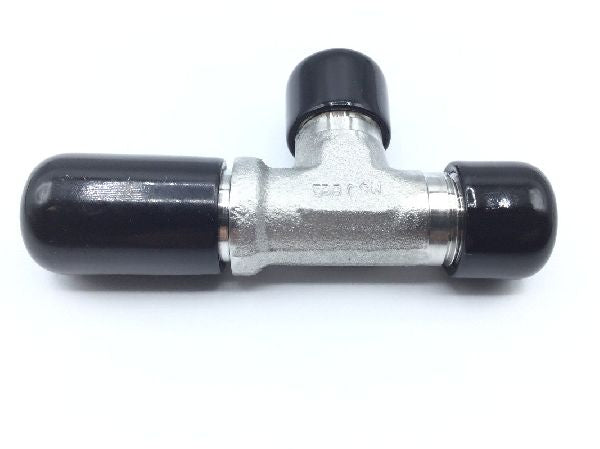

MS21912J6 Tube Tee

Product Series: MS
ECCN: EAR99
Schedule: 7326.90.8695

Unit of Measure: EA

Add to Quote

We are currently out of stock of this item. Click the button below to add this item to the quote and receive up to date pricing and availability by email.

Add to Quote

Material

Steel comp 304

Surface Treatment

Qq-p-35 federal specification single treatment response

Thread Class

3a all ends

Thread Size

0.562 inches all ends

Connection Style: Flareless (tube) all ends
Connection Type: Threaded external tube all ends
Leg Length: 1.688 inches 1st end
Material Specification: Qq-s-763 federal specification single material response
Maximum Operating Pressure: 3000.0 pounds per square inch 1st response
Maximum Operating Temp: 137 degrees fahrenheit 2nd response
Media For Which Designed: Aeronautical fluid 1st response
Outside Diameter Tube Accommodated: 0.375 inches all ends
Seat Angle: 12 degrees all ends
Specification Data: 96906-ms21912 government standard
Thread Series Designator: Unjf (fine thread with external controlled root radius) all ends
