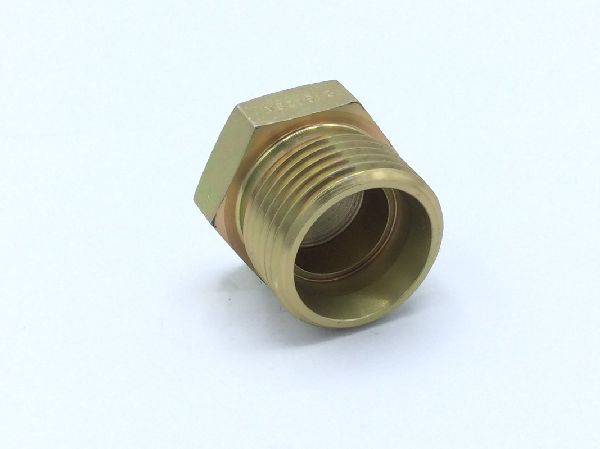

MS21913-12 Threaded Tube Fitting Plug

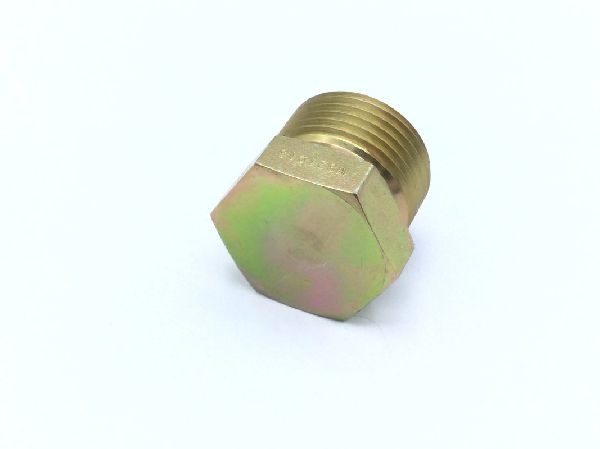

MS21913-12 Threaded Tube Fitting Plug (2)

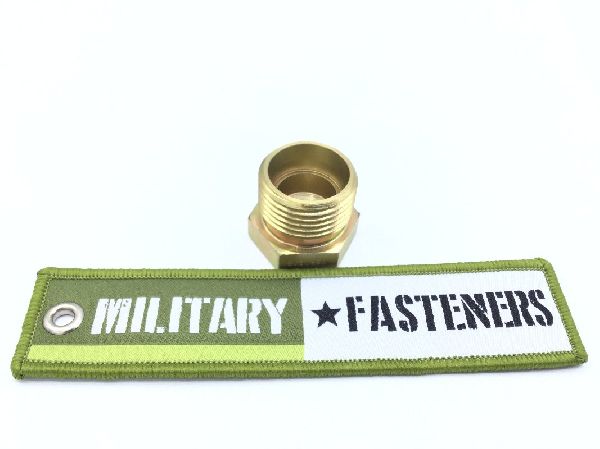

MS21913-12 Threaded Tube Fitting Plug (3)

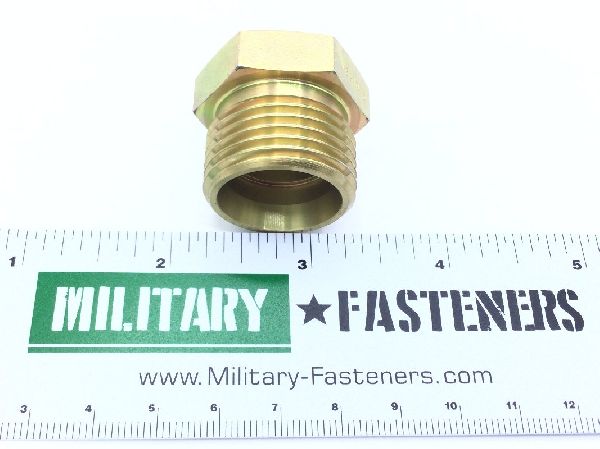

MS21913-12 Threaded Tube Fitting Plug (4)

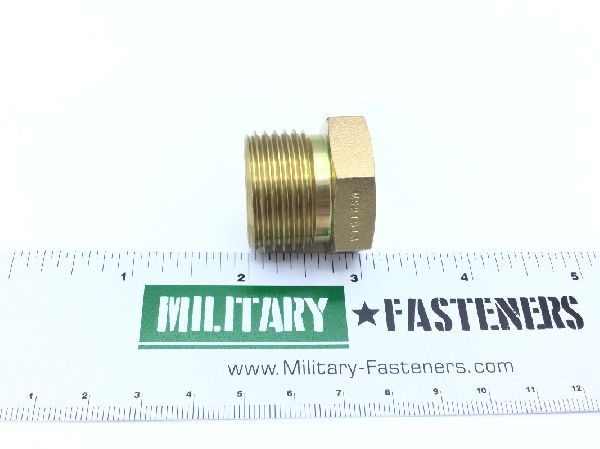

MS21913-12 Threaded Tube Fitting Plug (5)

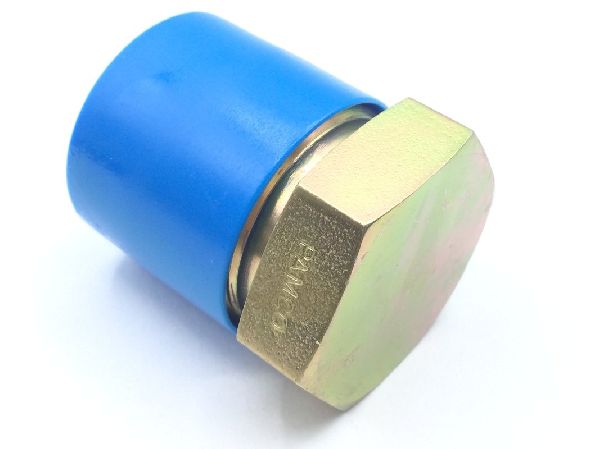

MS21913-12 Threaded Tube Fitting Plug (6)

Disclaimer: Actual product colors may vary slightly from the images shown due to different monitor settings and lighting conditions during photo shoots.

MS21913-12 Threaded Tube Fitting Plug

Product Series: MS
ECCN: EAR99
Schedule: 7307.99.4000

Unit of Measure: EA

Add to Quote

We are currently out of stock of this item. Click the button below to add this item to the quote and receive up to date pricing and availability by email.

Material

Steel comp 1137 or steel comp 1141

Overall Length

1.031 inches

Thread Class

3a external

Thread Size

1.062 inches external

Connection Style: Flareless
End Application: Grumman aerospace inc supports a10 aircraft
Head Height: 0.343 inches
Material Specification: 66(c-1137)or(c-1141) federal standard single material response
Seat Angle: 12.0 degrees
Style Designator: tube fitting flareless (note: drilled hole is optional should not be considered as a separating characteristic) plug
Thread Direction: Right-hand external
Thread Qty Per Inch (tpi): 12 external
Thread Series Designator: Un external
