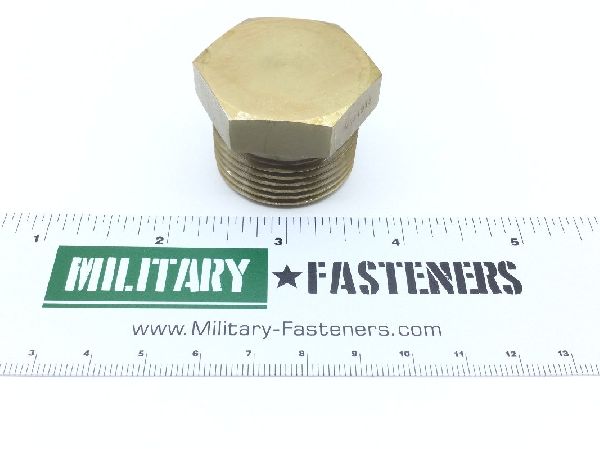

MS21913-16 Threaded Tube Fitting Plug (3)

MS21913-16 Threaded Tube Fitting Plug (4)

MS21913-16 Threaded Tube Fitting Plug (5)

MS21913-16 Threaded Tube Fitting Plug (6)

MS21913-16 Threaded Tube Fitting Plug (7)

Disclaimer: Actual product colors may vary slightly from the images shown due to different monitor settings and lighting conditions during photo shoots.

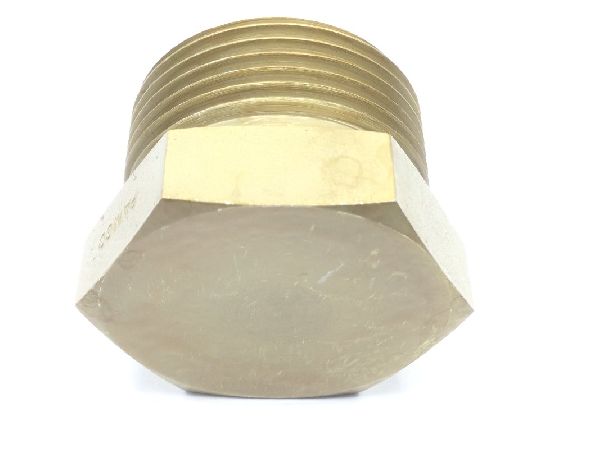

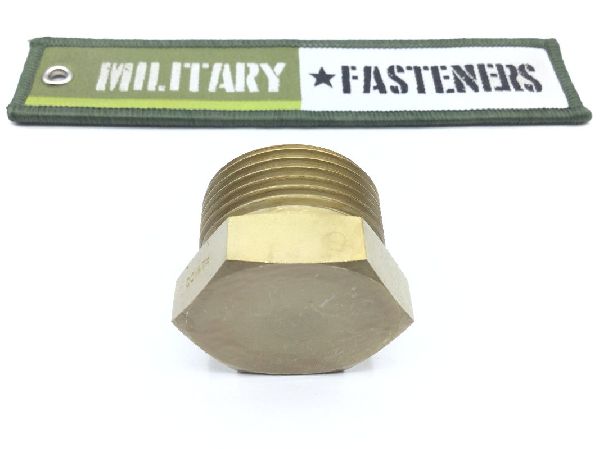

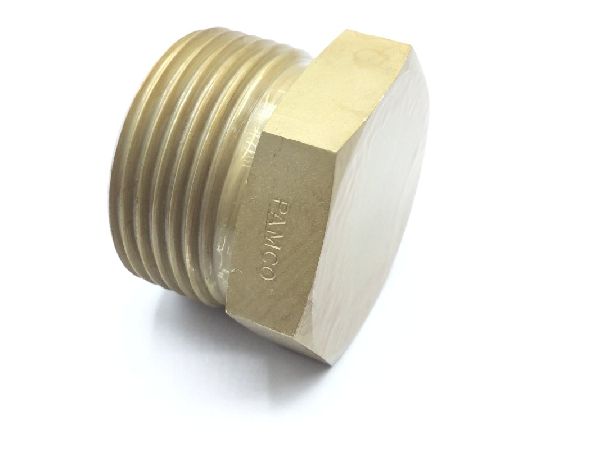

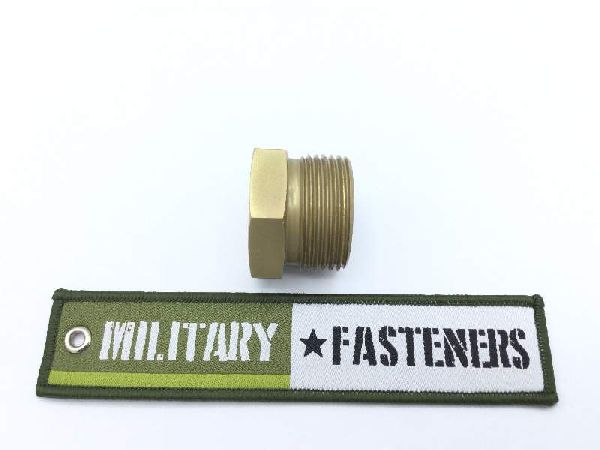

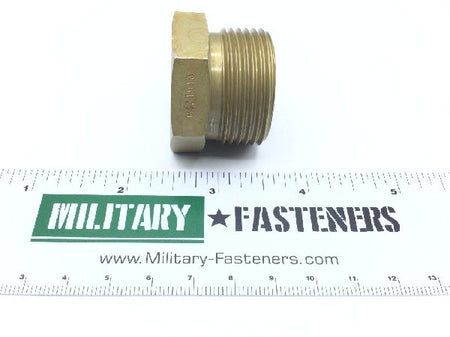

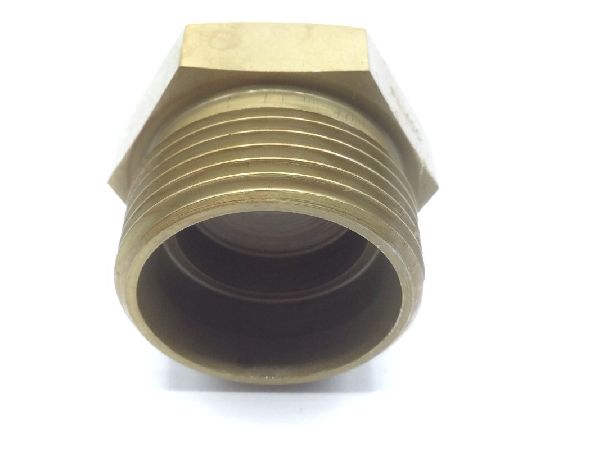

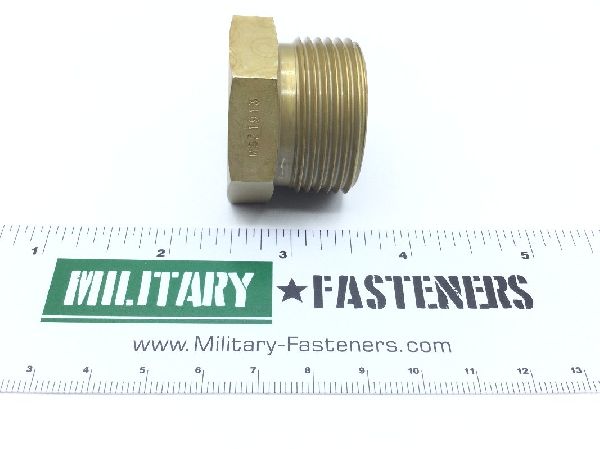

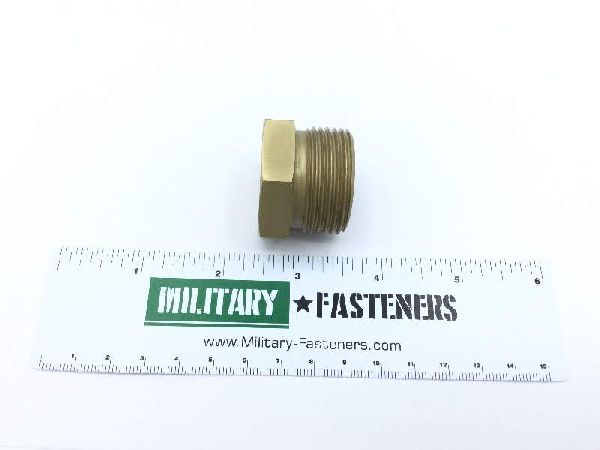

MS21913-16 Threaded Tube Fitting Plug

Product Series: MS
ECCN: EAR99
Schedule: 7307.22.5000

Unit of Measure: EA

Add to Quote

We are currently out of stock of this item. Click the button below to add this item to the quote and receive up to date pricing and availability by email.

Add to Quote

Material

Steel comp 1137 or steel comp 1141 or steel comp 4130

Overall Length

1.062 inches

Surface Treatment

Cl 2 federal specification single treatment response type 2 qq-p-416

Thread Class

3a external

Thread Size

1.312 inches external

Connection Style: Flareless
End Application: Grumman aircraft model a10
Head Height: 0.375 inches
Material Specification: Qq-s-637 federal specification single material response or mil-s-6758 military specification single material response
Seat Angle: 12.0 degrees
Specification Data: 96906-ms21913 government standard
Style Designator: tube fitting flareless (note: drilled hole is optional should not be considered as a separating characteristic) plug
Thread Direction: Right-hand external
Thread Qty Per Inch (tpi): 12 external
Thread Series Designator: Unj external
