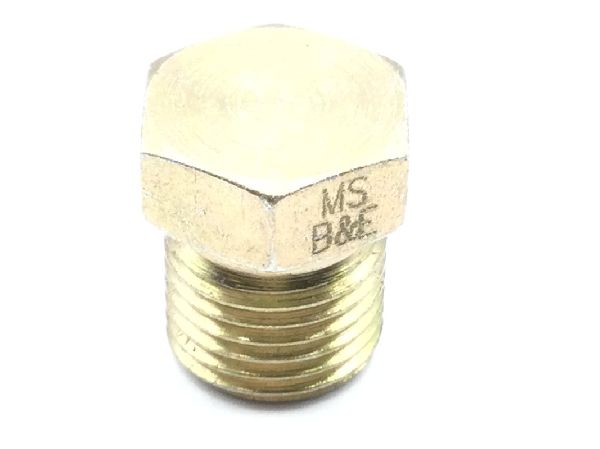

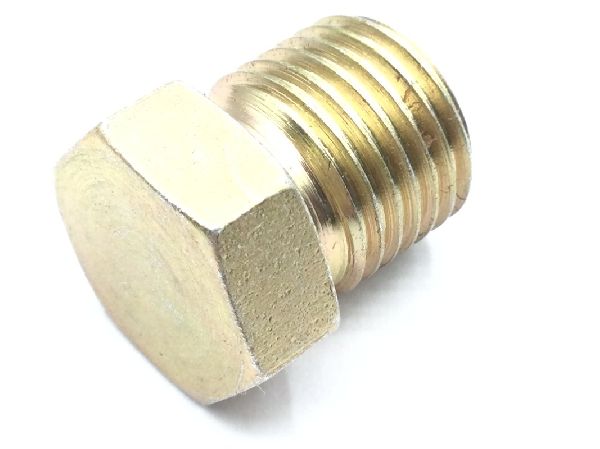

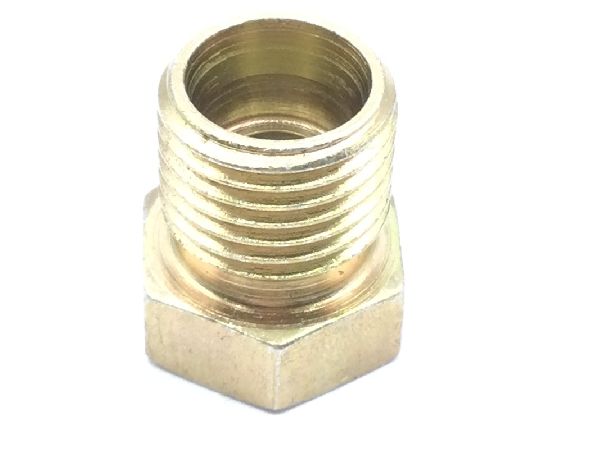

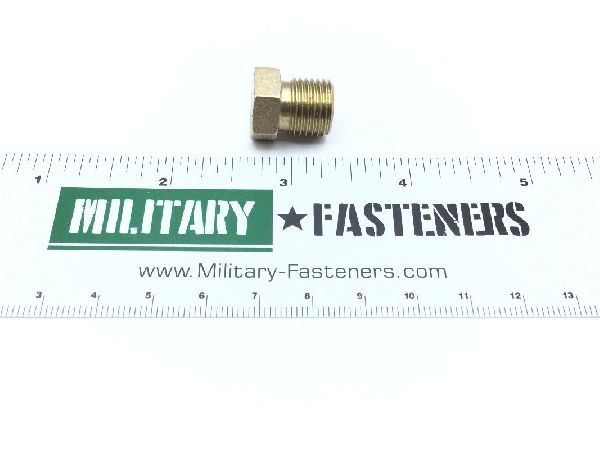

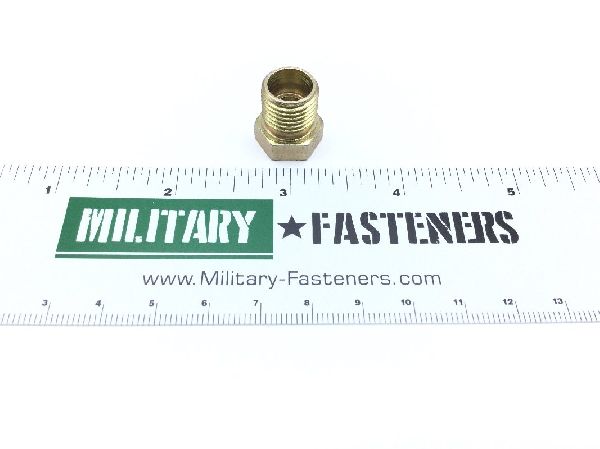

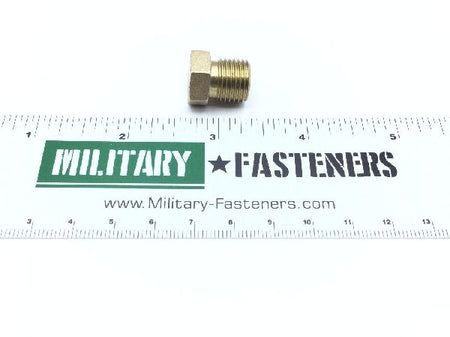

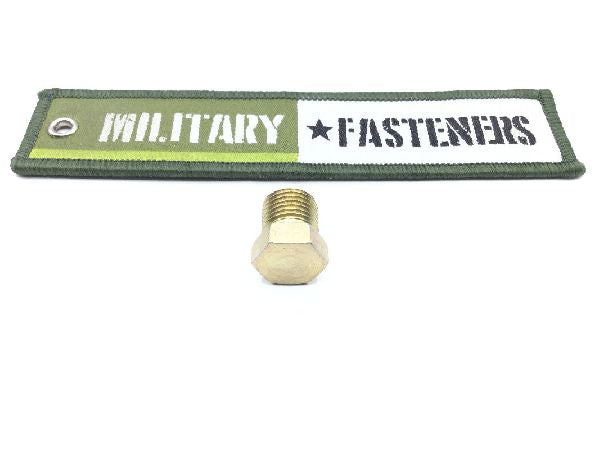

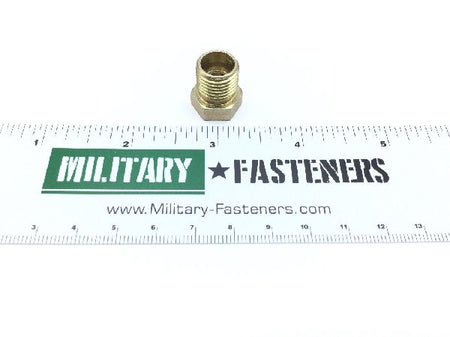

MS21913-5 Threaded Tube Fitting Plug

Product Series: MS
ECCN: EAR99
Schedule: 7307.99.4000

Unit of Measure: EA

Add to Quote

We are currently out of stock of this item. Click the button below to add this item to the quote and receive up to date pricing and availability by email.

Material

Steel comp 1137 or steel comp 1141

Overall Length

0.671 inches

Surface Treatment

Class 2 federal specification single treatment response type 2 qq-p-416

Thread Class

3a external

Thread Size

0.500 inches external

Connection Style: Flareless
End Application: Tf39-ge-1 (c-5a) aircraft brf engine
Head Height: Between 0.172 inches and 0.218 inches
Specification Data: 96906-ms21913 government standard
Style Designator: tube fitting flareless (note: drilled hole is optional should not be considered as a separating characteristic) plug
Thread Direction: Right-hand external
Thread Pitch Diameters: +0.4919/+0.5000 inches external
Thread Series Designator: Unjf (fine thread with external controlled root radius) external
