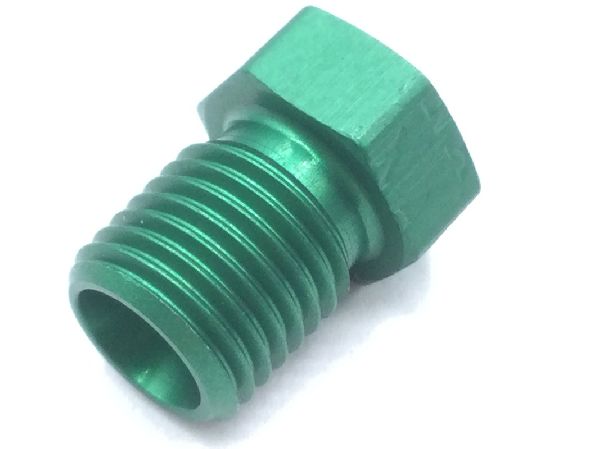

MS21913D3 Threaded Tube Fitting Plug

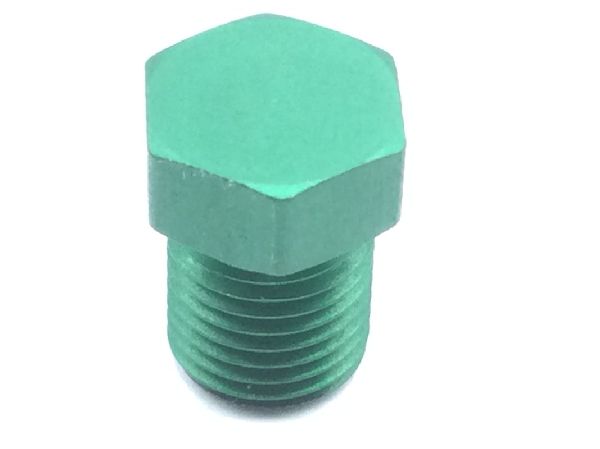

MS21913D3 Threaded Tube Fitting Plug (2)

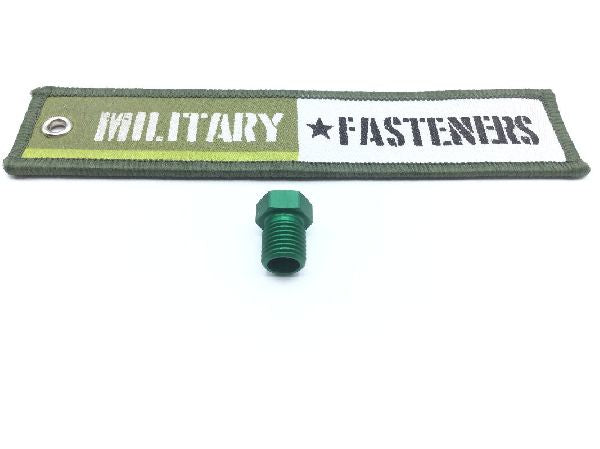

MS21913D3 Threaded Tube Fitting Plug (3)

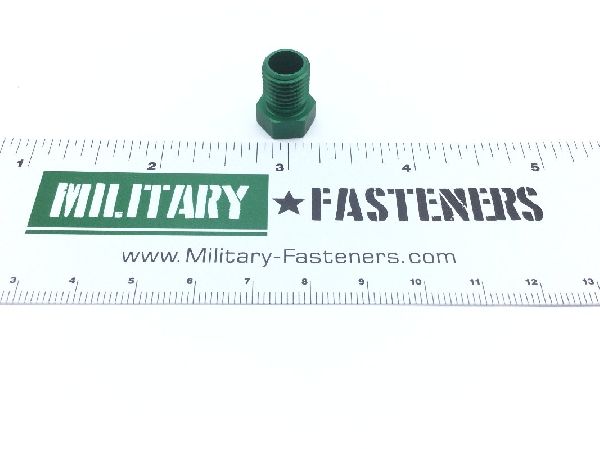

MS21913D3 Threaded Tube Fitting Plug (4)

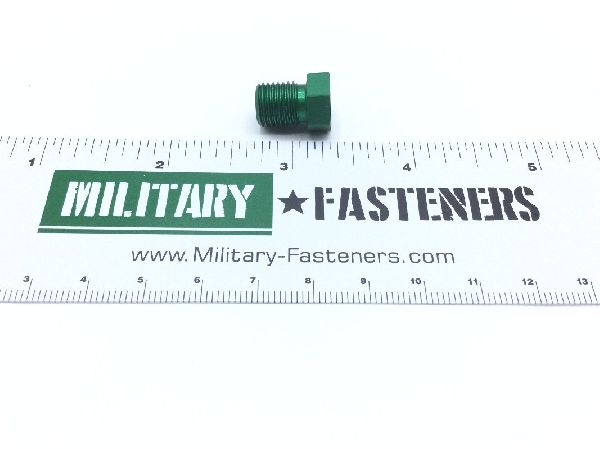

MS21913D3 Threaded Tube Fitting Plug (5)
MS21913D3 Threaded Tube Fitting Plug
MS21913D3 Threaded Tube Fitting Plug (2)
MS21913D3 Threaded Tube Fitting Plug (3)
MS21913D3 Threaded Tube Fitting Plug (4)
MS21913D3 Threaded Tube Fitting Plug (5)

Disclaimer: Actual product colors may vary slightly from the images shown due to different monitor settings and lighting conditions during photo shoots.

MS21913D3 Threaded Tube Fitting Plug

Product Series
MS
ECCN
EAR99
Schedule
7307.22.5000
Unit of Measure: EA

Add to Quote

We are currently out of stock of this item. Click the button below to add this item to the quote and receive up to date pricing and availability by email.

Add to Quote
Material
Aluminum alloy 2024
Overall Length
Between 0.594 inches and 0.624 inches
Thread Class
3a external
Thread Size
0.375 inches external
Connection Style
Flareless
Head Height
Between 0.130 inches and 0.150 inches
Iii End Application
Aircraft fluid systems; mrap buffalo mk2a2
Material Specification
Qq-a-225/6 federal specification single material response
Seat Angle
12.0 degrees
Specification Data
96906-ms21913 government standard
Style Designator
tube fitting flareless (note: drilled hole is optional should not be considered as a separating characteristic) plug
Thread Direction
Right-hand external
Thread Series Designator
Unjf (fine thread with external controlled root radius) external
