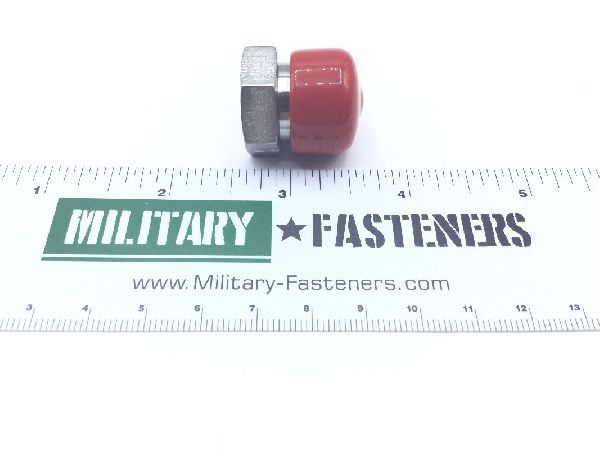

MS21913J8 Threaded Tube Fitting Plug (2)

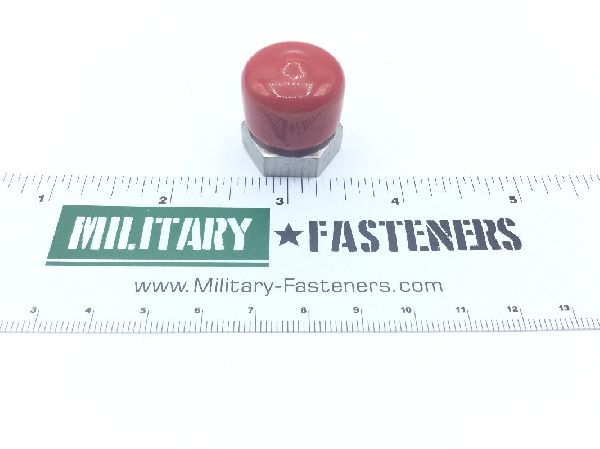

MS21913J8 Threaded Tube Fitting Plug (3)

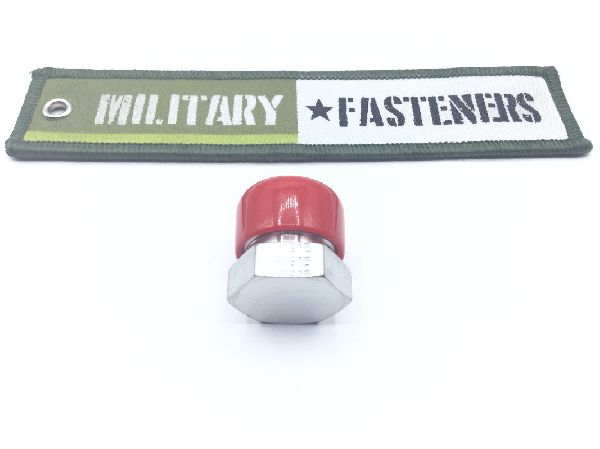

MS21913J8 Threaded Tube Fitting Plug (4)

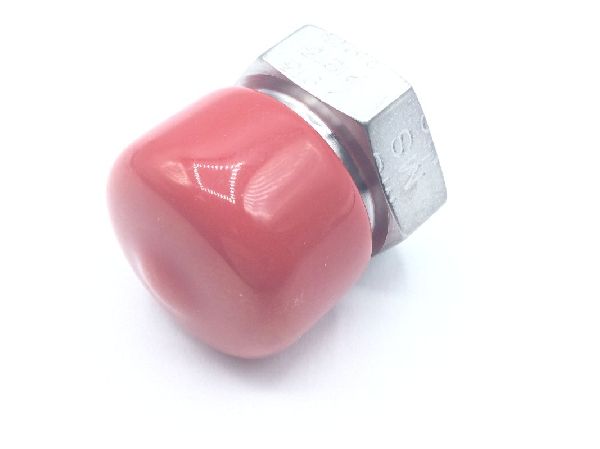

MS21913J8 Threaded Tube Fitting Plug (5)

Disclaimer: Actual product colors may vary slightly from the images shown due to different monitor settings and lighting conditions during photo shoots.

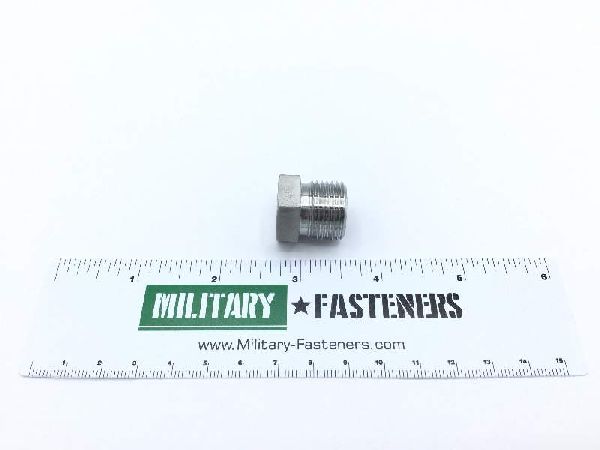

MS21913J8 Threaded Tube Fitting Plug

Product Series: MS
ECCN: EAR99
Schedule: 7307.22.5000

Price per Unit $37.25

Units per Pack 1

Price per Pack $37.25

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Quantity will be increased in increments of 1

Total Unit Quantity:

Total Packs 1

Total Price $37.25

Add item to quote

Material

Steel comp 304

Overall Length

0.844 inches

Thread Class

3a external

Thread Size

0.750 inches external

Connection Style: Flareless
Head Height: 0.282 inches
Material Specification: 66 federal standard single material response
Maximum Operating Pressure: 3000 pounds per square inch
Media For Which Designed: Fresh water
Seat Angle: 12.0 degrees
Specification Data: 96906-ms21913 government standard
Style Designator: tube fitting flareless (note: drilled hole is optional should not be considered as a separating characteristic) plug
Thread Direction: Right-hand external
Thread Series Designator: Unjf (fine thread with external controlled root radius) external
